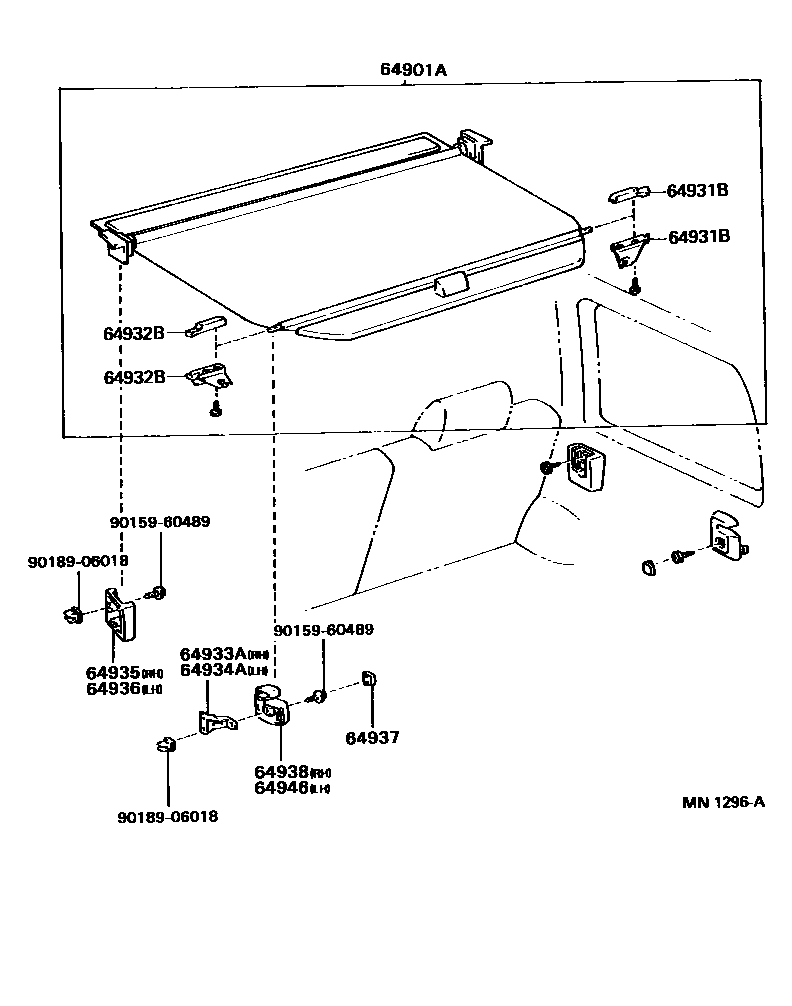

Toyota HILUX (JPP) — PACKAGE TRAY PANEL

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-35020-B1i199108-199511

GRAY,TRIM1#

main64901-35020-E3i199308-199511

OAK,TRIM4#

main64901-35020-J1i199108-199511

BLUE,TRIM8#

64931BHANGER, TONNEAU COVER, RH

main64931-35010-B0i199108-199511

GRAY,TRIM1#,UPPER

main64931-35010-E1i199308-199511

OAK,TRIM4#,UPPER

main64931-35010-J0i199108-199511

BLUE,TRIM8#,UPPER

main64951-35010-B0i199108-199511

GRAY,TRIM1#,LOWER

main64951-35010-E1i199308-199511

OAK,TRIM4#,LOWER

main64951-35010-J0i199108-199511

BLUE,TRIM8#,LOWER

64932BHANGER, TONNEAU COVER, LH

main64932-35010-B0i199108-199511

GRAY,TRIM1#,UPPER

main64932-35010-E1i199308-199511

OAK,TRIM4#,UPPER

main64932-35010-J0i199108-199511

BLUE,TRIM8#,UPPER

main64952-35010-B0i199108-199511

GRAY,TRIM1#,LOWER

main64952-35010-E1i199308-199511

OAK,TRIM4#,LOWER

main64952-35010-J0i199108-199511

BLUE,TRIM8#,LOWER

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-35020i199108-199511

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-35020i199108-199511

64935HOLDER, TONNEAU COVER, RH

main64935-35010-B0i199108-199511

GRAY,TRIM1#

main64935-35010-E1i199308-199511

OAK,TRIM4#

main64935-35010-J0i199108-199511

BLUE,TRIM8#

64936HOLDER, TONNEAU COVER, LH

main64936-35010-B0i199108-199511

GRAY,TRIM1#

main64936-35010-E1i199308-199511

OAK,TRIM4#

main64936-35010-J0i199108-199511

BLUE,TRIM8#

64937CAP, TONNEAU COVER HOLDER, NO.1

main64937-35020-B0×2i199108-199511

GRAY,TRIM1#

main64937-35020-E1×2i199308-199511

OAK,TRIM4#

main64937-35020-J0×2i199108-199511

BLUE,TRIM8#

64938HOOK, TONNEAU COVER, A

main64938-35010-B0i199108-199511

GRAY,TRIM1#

main64938-35010-E1i199308-199511

OAK,TRIM4#

main64938-35010-J0i199108-199511

BLUE,TRIM8#

64946HOOK, TONNEAU COVER, B

main64946-35010-B0i199108-199511

GRAY,TRIM1#

main64946-35010-E1i199308-199511

OAK,TRIM4#

main64946-35010-J0i199108-199511

BLUE,TRIM8#

9015960489

main90159-60489

9018906018

main90189-06018

12 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota HILUX (JPP)

This section contains 12 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HILUX (JPP). Key components include: RETRACTOR SUB-ASSY, TONNEAU COVER, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, BRACKET, TONNEAU COVER HOLDER, RH, BRACKET, TONNEAU COVER HOLDER, LH.
