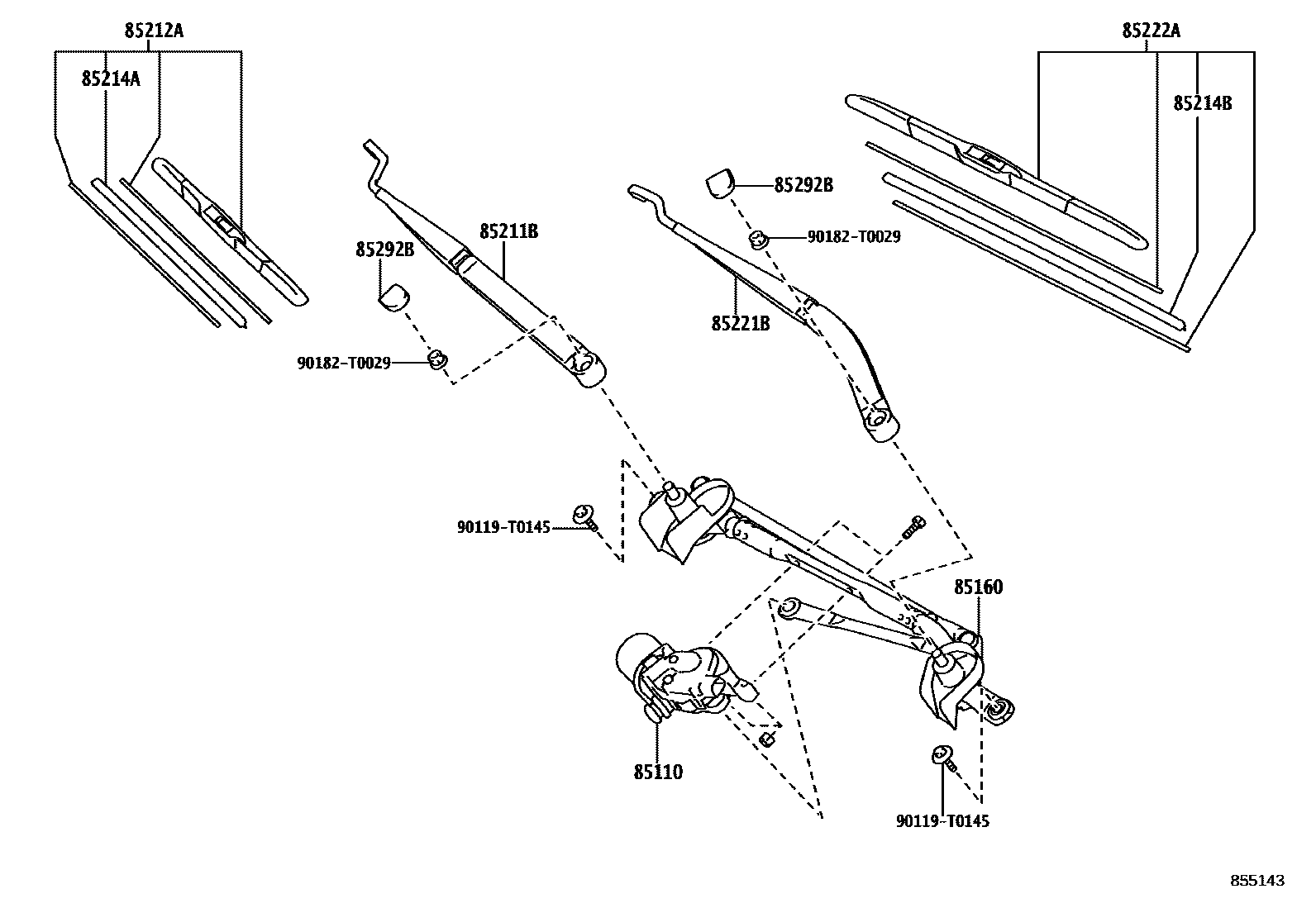

Toyota HILUX (DOUBLE CAB) — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
ASIA COLD COUNTRY SPEC
85211BARM, FRONT WIPER, RH
main85211-0K140iTGN126..H..GEN; TGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
main85214-28090iTGN126..THP..(GCC,GEN,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
main85221-0K141iTGN126..H..GEN; TGN126..L..GEN;TGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
85222ABLADE, FR WIPER, LH
main85222-71010iTGN126..THP..(GCC,GEN,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP202308-202407
85292BCAP, FRONT WIPER ARM HEAD
90119T0145
main90119-T0145
90182T0029
main90182-T0029
11 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota HILUX (DOUBLE CAB)
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota HILUX (DOUBLE CAB). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
