Toyota HILUX (DOUBLE CAB) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
main85381-0K090×2iGUN126..CBU;TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
ANGLE +2
85301INLET SUB-ASSY, WASHER
main85301-0K190iGUN125,TGN121..LHD..SAP..L; GUN125..L..GHA;GUN125..RHD..(KEN,SA);GUN125..LHD..(GHAP,SAP)..S;GGN125,GUN126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN125..LHD..SAP..(H,L); GUN125..LHD..SAP..L202411
EXPORT FROM SA; NIGERIA SPEC; SUB-SAHARAN AFRICA SPEC(EURO 2)
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K270iGUN125,TGN121..LHD..SAP..L; GUN125..L..GHA;GUN125..RHD..(KEN,SA);GUN125..LHD..(GHAP,SAP)..S;GGN125,GUN126,13#,LAN125,TGN126,136..GHAP,KENP,SAP; GUN125..LHD..SAP..(H,L); GUN125..LHD..SAP..L202411
EXPORT FROM SA,TYPE A:REFER ILLUST.; NIGERIA SPEC,TYPE A:REFER ILLUST.; SUB-SAHARAN AFRICA SPEC(EURO 2),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160iGUN126..CBU;TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
85336JPROTECTOR, WASHER JAR
main85372-0K020iGUN126..CBU;TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85377-0D040iGUN126..CBU;TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-06101iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
85355VALVE, WINDSHIELD WASHER HOSE
main85321-0A010iTGN121..LHD;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..RHD..6FC;GUN136..(SAP,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..(ARL,GCC,GEN,GHA,KEN,LA,MA,MMR,PH,SA,TWN,VN)..CBU;GGN125,GUN122,125,135,LAN125,TGN120,126,136..(GHAP,KENP,MAP,SAP,THP)..(ARL,GCC,GEN,GHA,KEN,LA,MA,PH,SA,VN)202408
main85348-14390iGUN136,TGN126..AGTP;GUN125,126,135..AGTP..LA;GUN125,126,135..BZAG,IDN,TH;GGN125,GUN120,121,122,TGN136..BZAG,LA,TH202408
85369CLAMP
main82711-0K070×3iGUN126..CBU;TGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33160iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136202408
L=40
L=300
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1445
L=1445
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=685
L=40
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=430
L=430
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33019×2iGUN136,TGN126..AGTP;GUN125,126,135..AGTP..LA;GUN125,126,135..BZAG,IDN,TH;GGN125,GUN120,121,122,TGN136..BZAG,LA,TH202408
L=40
L=235
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
90119T0144
main90119-T0144

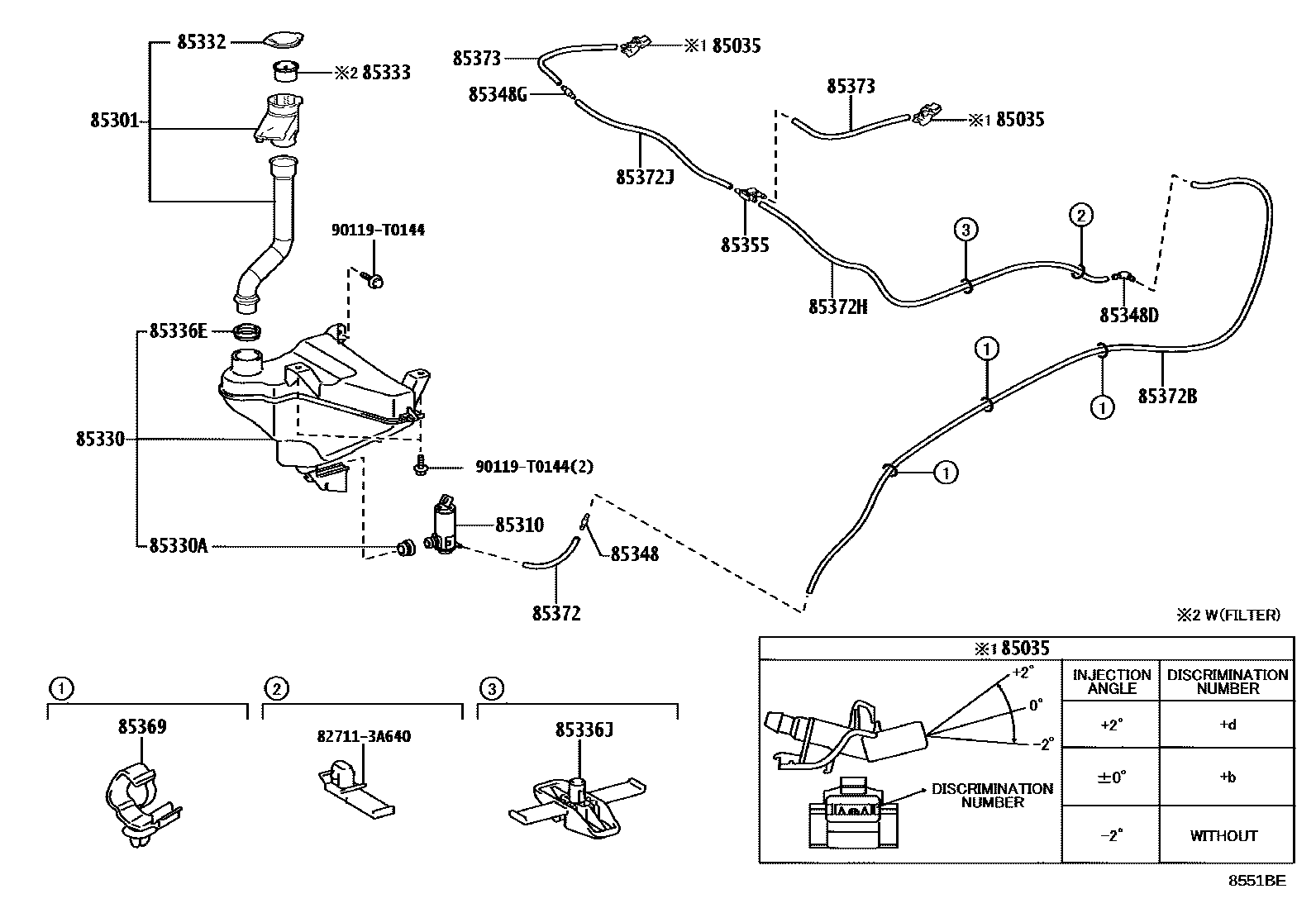

21 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota HILUX (DOUBLE CAB)
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX (DOUBLE CAB). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
