Toyota HILUX (DOUBLE CAB) — WINDSHIELD WASHER

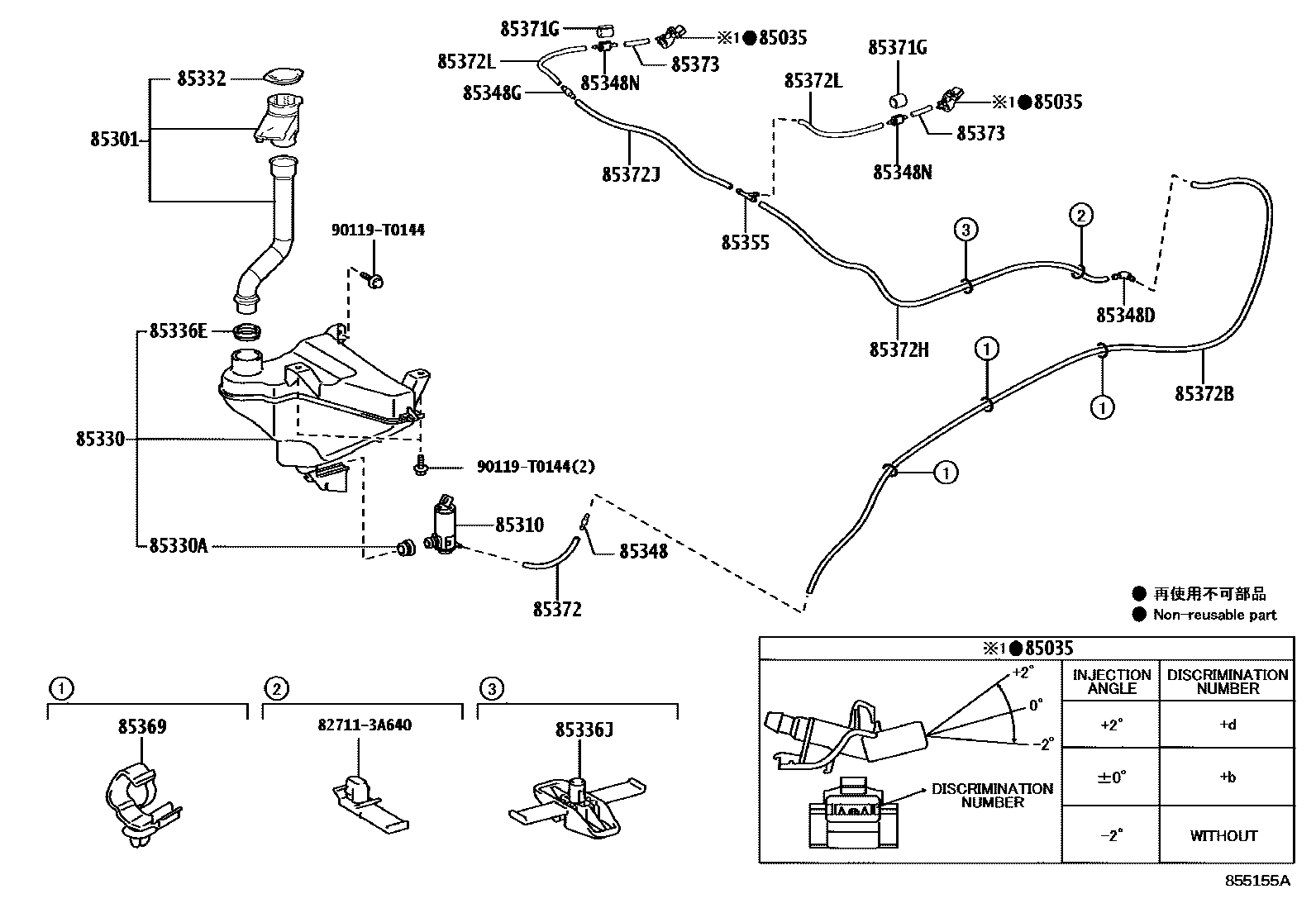

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-0K070×2i202308-202408
ANGLE 0
main85381-0K080×2i202308-202407
ANGLE -2
main85381-0K090×2i202308-202408
ANGLE +2
85301INLET SUB-ASSY, WASHER
main85301-0K111i202308-202407
main85301-0K140i202311-202410
main85301-0K160i202309-202408
main85301-0K190i202402-202412
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0K012i202308-202407
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K250i202308-202407
main85315-0K270i202402-202410
EXPORT FROM SA,TYPE A:REFER ILLUST.; NIGERIA SPEC,TYPE A:REFER ILLUST.; SUB-SAHARAN AFRICA SPEC(EURO 2),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main85315-0K280i202311-202410
main85315-0K460i202309-202408
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202308-202410
85332CAP, WINDSHIELD WASHER JAR
main85316-16070i202309-202408
main85316-YE011i202308-202409
main85386-0K140i202311-202410
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202308-202408
85336JPROTECTOR, WASHER JAR
main85372-0K020i202308
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-02330i202310-202409
main85375-06101i202308-202408
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85377-0D040i202308-202409
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-02330i202310-202409
main85375-06101i202308-202412
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85321-26020×2i202308-202410
85355VALVE, WINDSHIELD WASHER HOSE
main85321-0A010i202308
main85321-28020i202310-202409
main85348-14390i202308-202407
85369CLAMP
main82711-0K070×3i202308-202412
85371GPROTECTOR, FRONT WASHER
main85389-26080×2i202308-202407
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33160i202308-202412
L=40
main90069-46081i202310-202409
L=300
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-59152i202308-202410
L=1445
main90069-46096i202310-202409
L=1445
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-33295i202308
L=685
main90069-46078i202310-202409
L=40
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90068-33257i202308-202408
L=430
main90069-46077i202310-202409
L=430
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90068-33398×2i202308-202410
L=175
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33019×2i202308-202407
L=40
main90068-33251×2i202308-202412
L=235
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
90119T0144
main90119-T0144

23 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota HILUX (DOUBLE CAB)

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX (DOUBLE CAB). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
