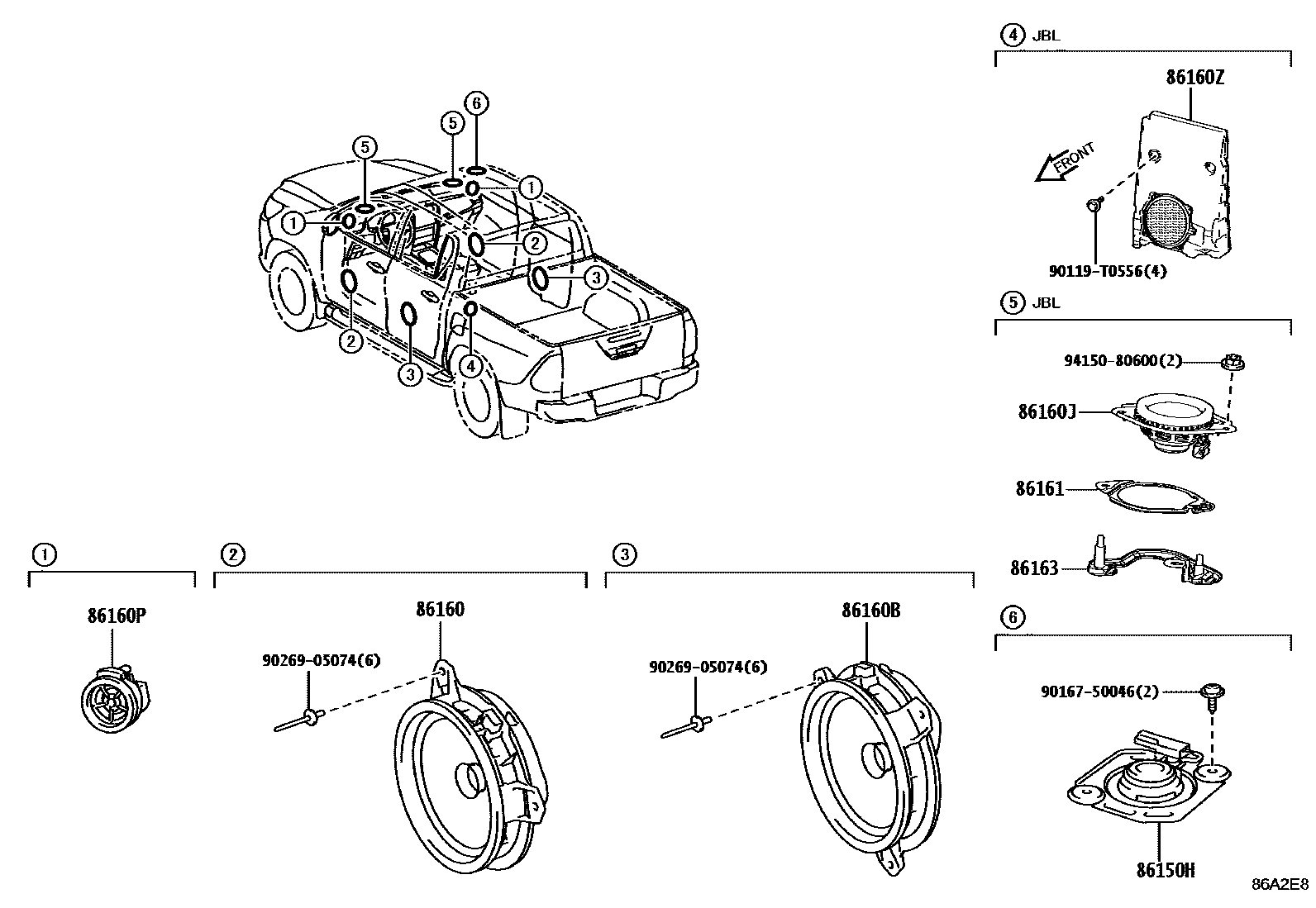

Toyota HILUX (DOUBLE CAB) — SPEAKER
86150HSPEAKER ASSY, W/BRACKET
DATA COMMUNICATION MODULE-WITHOUT
86160SPEAKER ASSY, FRONT NO.1
main86160-0K500×2iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136..AGTP,GHAP,KENP,SAP,THP202408
main86160-0K380×2iGUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL
SPEAKER-9SPEAKER & JBL
86160BSPEAKER ASSY, REAR
main86160-0K390×2iGUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL
SPEAKER-9SPEAKER & JBL
86160JSPEAKER ASSY, FRONT NO.3
main86160-0K370×2iGUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL
SPEAKER-9SPEAKER & JBL
86160PSPEAKER ASSY, FRONT NO.2
main86150-0K260×2iGUN136..6FC;GUN125..(H,S)..IDN;GUN126..AGTP..H..LA;GUN135..AGTP..6F..S;GUN126..H..MHV..IV3;GUN126..S..(ARL,BZAG);GUN125,TGN136..AGTP..S;GUN126..AGTP..6F..S..LA;GUN126..LHD..THP..6FC..GEN;GUN125,126..LHD..6F..H..(GEN,SA);GUN135..6FC..(H,S)..(BZAG,GEN,PH);GUN13#..6F..H..(BZAG,GEN,LA,PH,SA);GGN125,GUN122,135..H..(GCC,LA,SA,TH);GUN126,TGN126..H..(HTWC,MHV)..(GEN,LA);GUN126..H..(ARL,BZAG,GHA,KEN,PH,SA,TH,TWN,VN)..CBU; TGN121..5F..S;GUN125..LHD..SAP..6F..S;GUN125,126..RHD..H..GEN;GUN125,135..LHD..6F..S..(GEN,PH);GUN126,TGN126..H..(HTWC,MHV)..GCC;GUN122,135,LAN125..LHD..S..(GEN,SA,VN);GUN125,126,TGN121..(MMRP,THP)..H..(DCRL,HTWC)..(GCC,LA,MMR)202408
SPEAKER-6SPEAKER
main86150-0K380×2iGUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL
SPEAKER-9SPEAKER & JBL
86160ZSPEAKER ASSY, REAR NO.3
main86150-0K170iGUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL
SPEAKER-9SPEAKER & JBL
86161BRACKET, SPEAKER, FRONT NO.1
SPEAKER-9SPEAKER & JBL,RH
SPEAKER-9SPEAKER & JBL,RH
main86161-KK040iGUN126..RHD..H..SA;GUN126..6F..H..BZAG;GUN136..H..(ARL,BZAG,SA);GUN126..6FC..H..(ARL,BZAG,VN)..CBU;GUN126..LHD..6FC..H..DCRL..(GEN,LA)202408
SPEAKER-9SPEAKER & JBL,LH
86163BRACKET, SPEAKER, NO.2
SPEAKER-9SPEAKER & JBL,LH
SPEAKER-9SPEAKER & JBL,RH
SPEAKER-9SPEAKER & JBL,RH
SPEAKER-9SPEAKER & JBL,LH
90119T0556
main90119-T0556
9016750046
main90167-50046
9026905074
main90269-05074
9415080600
main94150-80600
12 parts on this diagram · 1 diagram in section
SPEAKER for Toyota HILUX (DOUBLE CAB)
This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota HILUX (DOUBLE CAB). Key components include: SPEAKER ASSY, W/BRACKET, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.3, SPEAKER ASSY, FRONT NO.2.
