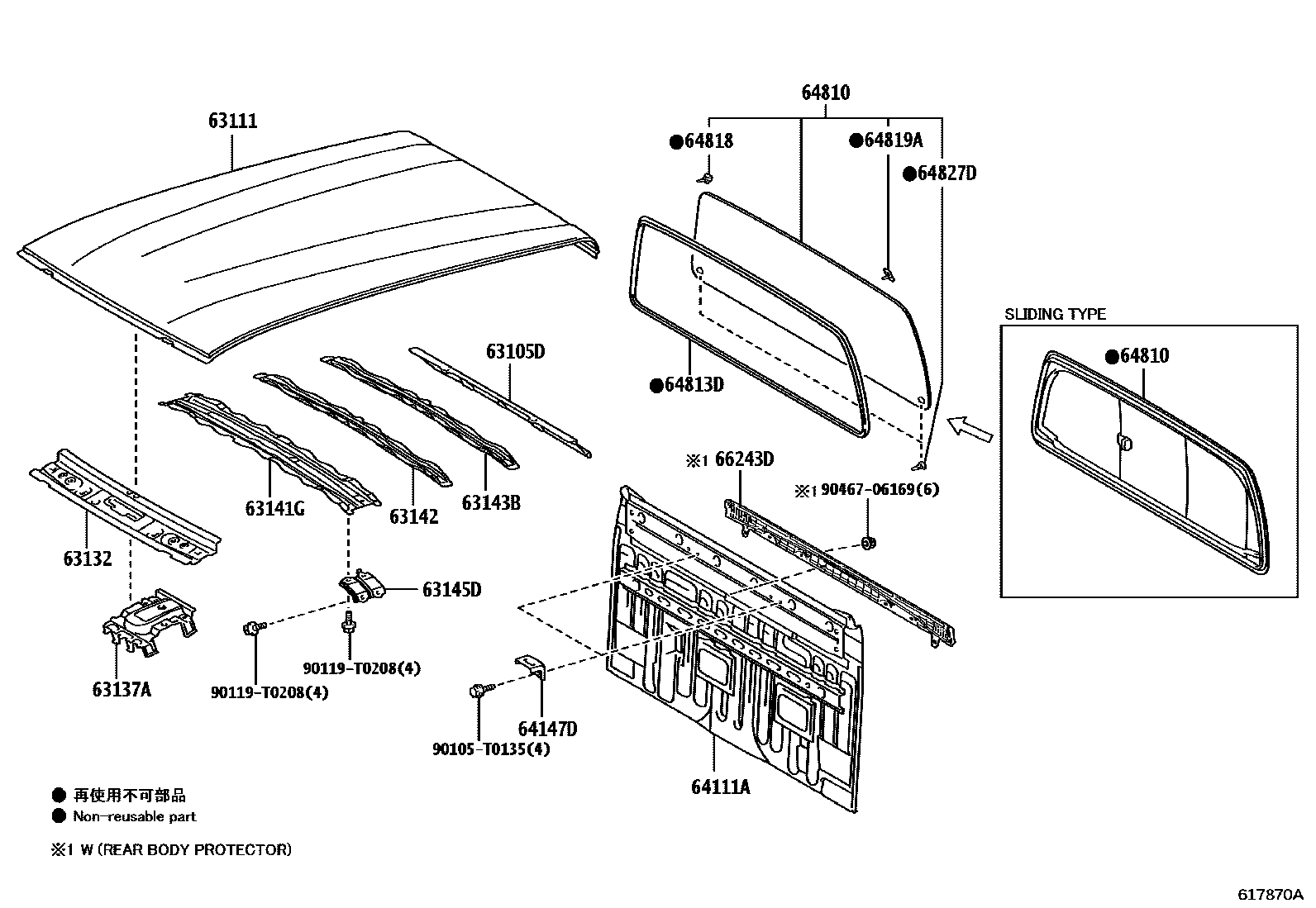

Toyota HILUX (DOUBLE CAB) — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
main63135-KK050iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
63111PANEL, ROOF
main63111-KK130iGGN125..GCC;GUN126..6FC..H..DCRL..(ARL,PH,VN)..CBU; GUN121,126..6FC..TH; GUN125,135..ARL;TGN121..5F..ARL;TGN126..(H,S)..GEN;GUN126..H..DCRL..IV3; GUN126..6FC..DCRL..GCC; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..S..IV3;GUN126..H..MHV..IV3;GUN126,136,TGN121..(6F,6FC)..ARL..CBU202308-202407
DATA COMMUNICATION MODULE-WITH(AU-DCM); GR SPORT; GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&AUDIO-*DA(8INCH) & *BT; GR SPORT WIDE TREAD&AUDIO-AVN(8INCH) & *BT; GR SPORT WIDE TREAD&AUDIO-AVN(8INCH) & *BT & DAB; GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145DBRACKET, ROOF REINFORCEMENT
64111APANEL, BACK
main64101-KK010iGUN122,125,TGN121..(KENP,SAP)..L; GUN125..H..SA;GUN125,126..GHA;GGN125,GUN136,TGN136..SA;GUN125,126,135..RHD..(H,S)..(KEN,SA); GUN126..LHD..SA;GUN125,LAN125,TGN126..LHD..SAP..S; LAN125,TGN126..SAP..L202402-202410
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&REAR HEADREST-WITH(RH/LH/CENTER); REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK020iGUN126..LHD..S..GEN;GUN122,TGN136..S..(GEN,SA); TGN126..L..GEN;TGN126..SAP..S;GUN122,TGN12#..GCC;GUN125..RHD..(H,S)..GEN;GUN125..LHD..SAP..6F..S;GUN125..LHD..6FC..(GCC,SA);GUN125..6F..(H,S)..(GCC,IDN);GUN125,135..6F..L..(GCC,GEN,IDN,VN);GUN122,126..RHD..(5F,6FC)..DCRL..GEN;GGN125,GUN126,LAN125..LHD..(H,S)..(GCC,SA)202308-202410
REAR HEADREST-WITH(RH/LH)
main64101-KK050supersedes 64101-KK060iGUN122,125,135,TGN121..(KENP,SAP)..L; GUN126..S..SA;GUN125..L..GHA; GUN135..S..SA;GUN125..RHD..6F..S..SA; LAN125,TGN126..SAP..L202402-202410
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK090iGUN125..6F..H..GCC;TGN126..(H,L)..GCC;GUN125..RHD..(H,S)..GEN;GUN125..6F..L..(GCC,GEN);GUN122,TGN121..5F..S..GCC..CBU;GUN122,126..RHD..(5F,6FC)..DCRL..GEN;GGN125,GUN126,TGN121..(5F,6FC)..H..(DCRL,HTWC)..GCC; GUN125..LHD..(H,S)..GEN;GUN125..6FC..(H,L)..(GEN,IDN);GUN122,126..LHD..(5F,6FC)..GEN;GUN135,TGN126..THP..L..(ARL,LA,TH);GUN135,TGN126..THP..(H,S)..(GEN,LA,PH,TH,VN);GUN122,125..(MAP,THP)..(ARL,LA,MA,PH,SA,TH,VN);GUN126..(INDP,THP)..6F..(ARL,GEN,IND,LA,PH,TH);GUN120,121,136,TGN121,136..THP..(ARL,GEN,LA,TH);GUN126..(INDP,MAP,MMRP,THP)..6FC..(ARL,IND,LA,MA,MMR,PH,TH,TWN,VN)202308-202411
REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK060iGUN125..LHD..SAP..L; GUN125..RHD..L..SA; LAN125,TGN126..SAP..L; TGN121..SA202402-202410
ASSIST GRIP-ROOF:3&REAR HEADREST-WITH(RH/LH); EXPORT FROM SA&REAR HEADREST-WITH(RH/LH); REAR HEADREST-WITH(RH/LH); SUB-SAHARAN AFRICA SPEC(EURO 2)&REAR HEADREST-WITH(RH/LH)
64147DPLATE, BACK PANEL CORNER, UPPER
64810WINDOW ASSY, BACK
main64801-0K122iGUN126..RHD..6FC..S..GEN;GUN122,125..MTM..(IDN,PH);GUN135,TGN126..L..(GEN,TH);GUN125..LHD..THP..S..(GEN,SA);GUN122,125..RHD..(5F,6FC)..(H,L)..(GEN,IDN); TGN121..GEN;GUN122..S..GEN;GUN125..THP..L..SA;GUN125..RHD..6F..L..GEN202308-202407
REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-FIX TYPE(PRIVACY)
REAR WINDOW DEFOGGER-WITH
main64801-0K151iGUN125,135,TGN121..LHD..SAP..(H,L); GUN125..LHD..SAP..S;GUN126,LAN125,TGN126,136..LHD..SAP; GUN135..6F..S..SA;GUN125..RHD..S..SA202402-202410
BACK GLASS-FIX TYPE(GREEN); REAR WINDOW DEFOGGER-WITHOUT
main64810-0K041iGUN122..(L,S)..GCC;GGN125,GUN125,TGN12#..GCC; TGN121..GEN;GUN125..RHD..6F..L..GEN202308-202407
BACK GLASS-SLIDING TYPE(GREEN)&REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
BACK GLASS-SLIDING TYPE(PRIVACY); BACK GLASS-SLIDING TYPE(PRIVACY)&REAR WINDOW DEFOGGER-WITHOUT
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
64819ASPACER, BACK WINDOW GLASS, NO.2
main64819-0K120iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SAP; GUN135..6F..S..SA;GUN125..RHD..S..SA202402-202410
BACK GLASS-FIX TYPE(GREEN)
64827DCLIP, BACK WINDOW GLASS
main64827-0K110×2iGUN126..MHV..(ARL,LA);TGN126..THP..(GEN,LA);GUN12#,13#,TGN121,136..THP..(DCRL,HTWC)..(ARL,GEN,IDN,LA,PH,SA,TH,TWN,VN)202308-202407
66243DPROTECTOR, REAR BODY, NO.1
90105T0135
main90105-T0135
90119T0208
main90119-T0208
9046706169
main90467-06169
19 parts on this diagram · 1 diagram in section
ROOF PANEL & BACK PANEL for Toyota HILUX (DOUBLE CAB)
This section contains 19 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX (DOUBLE CAB). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
