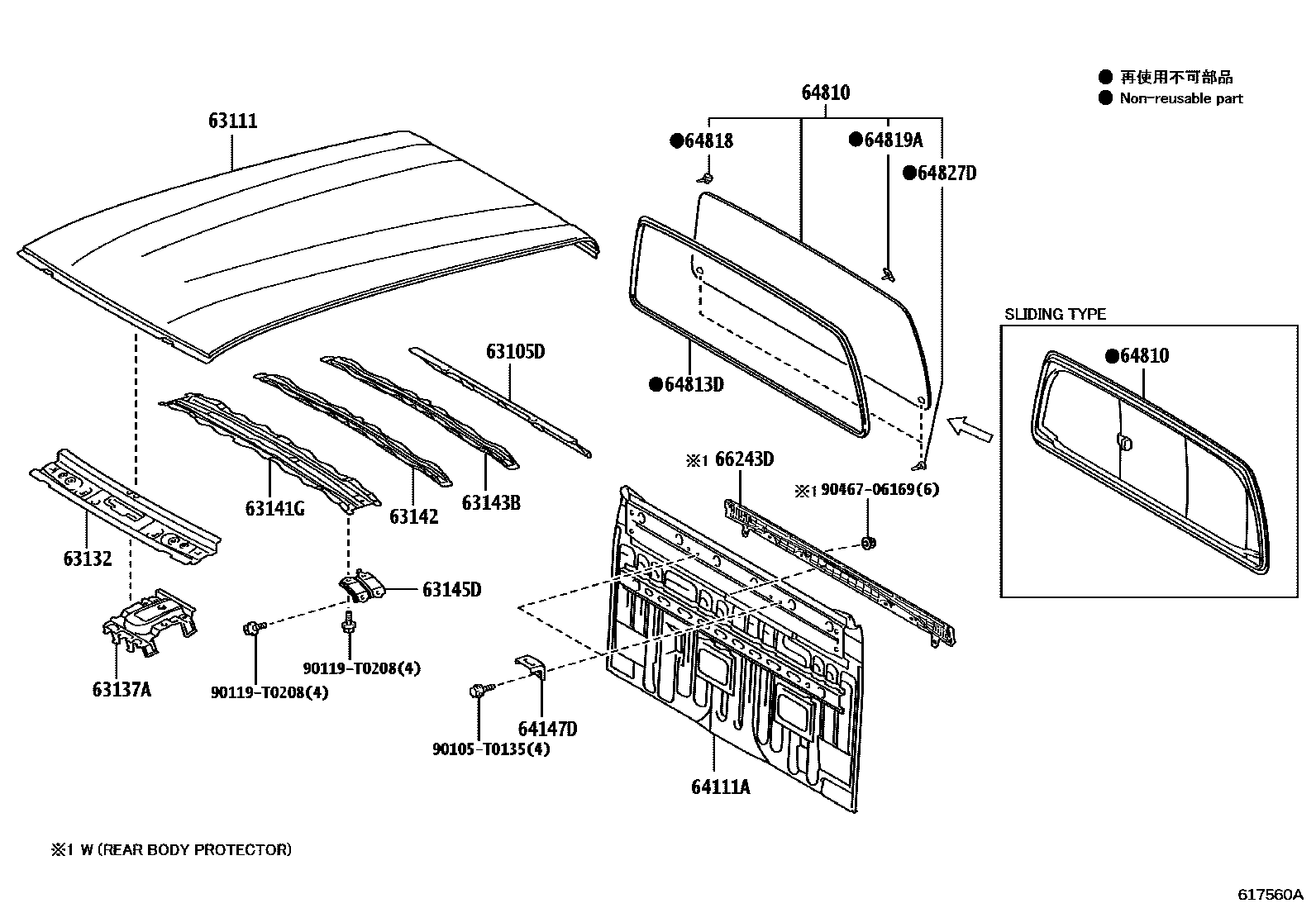

Toyota HILUX (DOUBLE CAB) — ROOF PANEL & BACK PANEL

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63135-KK050iGUN126..IND,MMR202208-202403

63111PANEL, ROOF

main63111-KK010iGUN126..PKN202208-202403

main63111-KK130iGUN126..H..IV3;GUN125,135..ARL;TGN121..5F..ARL202208-202307

GR SPORT

main63111-KK130iGUN126..H..IV3;GUN125,135..ARL;TGN121..5F..ARL202208-202307

DATA COMMUNICATION MODULE-WITH(G-DCM)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK021iGGN125,GUN125,126,13#,TGN126,136..AGTP202303-202403

main63132-KK031iGUN126..MA202303-202308

ACTIVE SAFETY PACKAGE-WITHOUT

main63132-KK031iGUN126..PKN202303

main63132-KK900iGUN126;GGN125,GUN120,121,122,125,13#,LAN125,TGN12#,136..AGTP,SAP,THP202208-202303

main63132-KK902iGUN125..MA202209-202303

ACTIVE SAFETY PACKAGE-WITHOUT

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010iGUN126..IND,MMR202208-202403

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202403

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-KK010iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK030iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

64111APANEL, BACK

main64101-KK010iGUN122,125,TGN121..L..SA202301-202401

REAR HEADREST-WITH(RH/LH/CENTER)

main64101-KK010iGUN125..KEN202301-202403

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main64101-KK010iGUN125..H..SA;GGN125,GUN136,TGN136..SA;GUN125,126,135..RHD..(H,S)..SA202301-202401

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&REAR HEADREST-WITH(RH/LH/CENTER)

main64101-KK020iGUN126..LHD..SA;GUN125,LAN125,TGN126..LHD..S..SA202208-202401

REAR HEADREST-WITH(RH/LH)

main64101-KK050iGUN126..S..SA202301-202401

REAR HEADREST-WITH(RH/LH/CENTER)

main64101-KK050iGUN125..L..GHA202301-202403

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main64101-KK050iLAN125,TGN126..L..SA202301-202401

EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main64101-KK060iGUN125..RHD..L..SA202301-202401

EXPORT FROM SA&REAR HEADREST-WITH(RH/LH)

main64101-KK060iLAN125,TGN126..L..SA202301-202401

SUB-SAHARAN AFRICA SPEC(EURO 2)&REAR HEADREST-WITH(RH/LH)

main64101-KK060iLAN125,TGN126..L..SA202301-202401

ASSIST GRIP-ROOF:3&REAR HEADREST-WITH(RH/LH)

main64101-KK060iLAN125,TGN126..L..SA202301-202401

REAR HEADREST-WITH(RH/LH)

main64101-KK060iGUN126..(L,S)..PKN202301

main64101-KK090iGUN122..LHD..L..GEN;GUN125..6FC..L..GEN;GUN126..LHD..6FC..GEN;GUN125..LHD..(H,S)..GEN;GUN126..LHD..6F..S..GEN;GUN126..THP..6F..S..(ARL,LA);GUN135,TGN126..THP..L..(A202208-202307

REAR HEADREST-WITH(RH/LH/CENTER)

main64101-KK090iGUN126..IND,MMR202208-202309

main64101-KK130iGUN126..H..PKN202303

main64101-KK140iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-KK010iGUN125,126..MA202208-202403

64810WINDOW ASSY, BACK

main64801-0K112iGUN125..LHD..S..GEN;GUN126..RHD..6FC..S..GEN;GUN135,TGN126..L..(GEN,TH);GUN122,125..RHD..(5F,6FC)..L..GEN202208-202307

REAR WINDOW DEFOGGER-WITH

main64801-0K112iGUN126..MMR202208-202309

main64801-0K122iTGN121..GEN;GUN122..S..GEN;GUN125..RHD..6F..L..GEN202208-202307

REAR WINDOW DEFOGGER-WITHOUT

main64801-0K132iGUN126,136..H..(ARL,TWN)202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main64801-0K141iGUN122,125,135,TGN121..LHD..(H,L)..SA202301-202401

REAR WINDOW DEFOGGER-WITH

main64801-0K151iGUN125..LHD..S..SA;GUN126,LAN125,TGN126,136..LHD..SA202301-202401

REAR WINDOW DEFOGGER-WITHOUT

main64801-0K151iGUN125,126..GHA202301-202403

main64801-0K151iGUN125,135,TGN121..LHD..(H,L)..SA202301-202401

BACK GLASS-FIX TYPE(GREEN)

main64801-0K171iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main64801-0K191iGUN125,126..MA202209-202308

main64801-0K211iGUN126..IND202210-202309

main64810-0K041iGUN122..(L,S)..GCC;GGN125,GUN125,TGN12#..GCC202208-202307

BACK GLASS-SLIDING TYPE(GREEN)&REAR WINDOW DEFOGGER-WITHOUT

main64810-0K041iGUN126..PKN202208

main64810-0K050iGGN125,GUN125,126,13#,TGN136..RHD..SA202301-202403

main64810-0K090iGUN122,126..H..GCC202208-202307

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK041iGUN12#,13#,TGN121,126,136..THP..(ARL,GEN,IDN,LA,PH,TH,TWN,VN)202208-202403

64818SPACER, BACK WINDOW GLASS

main64818-0K090iGUN12#,13#,TGN121,126,136..THP..(ARL,GEN,IDN,LA,PH,TH,TWN,VN)202208-202309

main64818-0K100iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA202301-202401

BACK GLASS-FIX TYPE(GREEN)

main64818-0K100iGUN125,126..GHA202301-202403

main64818-0K110iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main64818-0K190iGUN125,126..MA202209-202308

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110iGUN126..IND,MMR202208-202309

main64819-0K120iGUN125,126..GHA202301-202403

main64819-0K120iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA202301-202401

BACK GLASS-FIX TYPE(GREEN)

main64819-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main64819-0K190iGUN125,126..MA202209-202308

64827DCLIP, BACK WINDOW GLASS

main64827-0K110iGUN126..IND,MMR202208-202309

main64827-0K120iGUN125,126..GHA202301-202403

main64827-0K120iGUN135..6F..S..SA;GUN125..RHD..S..SA202301-202401

BACK GLASS-FIX TYPE(GREEN)

main64827-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main64827-0K160iGUN125,126..MA202209-202308

66243DPROTECTOR, REAR BODY, NO.1

main66243-0K010iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

90105T0135

main90105-T0135

90119T0208

main90119-T0208

9046706169

main90467-06169

19 parts on this diagram · 1 diagram in section
