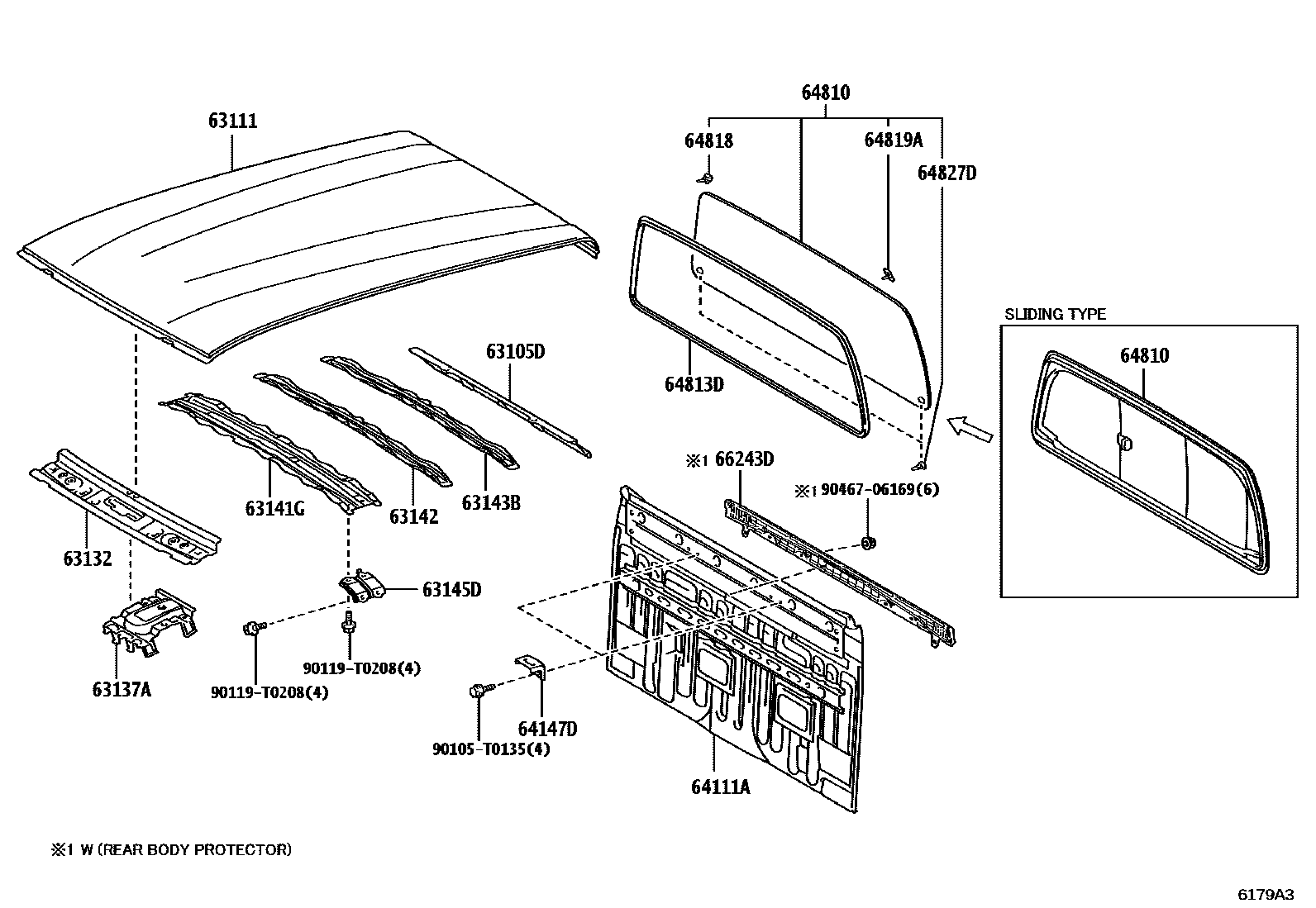

Toyota HILUX (DOUBLE CAB) — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
main63111-KK010iGUN136..6F..H;GUN126..S..MHV;TGN126..L..GEN;GUN126..6F..IV3;GUN126..H..MHV..IV3;GUN126..H..ARL..CBU;GUN136,TGN126..(5F,6FC)..(ARL,BZAG,GCC,LA,SA);GGN125,GUN12#,135,202408
ASIA COLD COUNTRY SPEC&DATA COMMUNICATION MODULE-WITHOUT
GR SPORT
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(AU-DCM)
GR SPORT WIDE TREAD&BACK MONITOR-WITH(*PVM)
GR SPORT WIDE TREAD&AUDIO-*DA(8INCH) & *BT
63132PANEL, WINDSHIELD HEADER, INNER
ACTIVE SAFETY PACKAGE-WITHOUT
63137ABRACKET, DOME LAMP, NO.1
main63137-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GUN126..(AGTP,CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121202408-202411
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145DBRACKET, ROOF REINFORCEMENT
64111APANEL, BACK
main64101-KK010iGUN125..H..SA;GUN125,126..GHA;GGN125,GUN136,TGN136..SA;GUN125,126,135..RHD..(H,S)..(KEN,SA)202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK010iGUN125..H..SA;GUN125,126..GHA;GGN125,GUN136,TGN136..SA;GUN125,126,135..RHD..(H,S)..(KEN,SA)202411
REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK010iGUN125..H..SA;GUN125,126..GHA;GGN125,GUN136,TGN136..SA;GUN125,126,135..RHD..(H,S)..(KEN,SA)202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
main64101-KK020iGUN125..H..GCC;GUN122..5F..(H,S);GUN125..LHD..S..GEN;GUN122,135..L..(GCC,VN);GUN125..RHD..(H,S)..GEN;GUN125..(L,S)..(GCC,IDN);GGN125,GUN126,TGN12#..GCC;GUN125,TGN12202408-202411
REAR HEADREST-WITH(RH/LH)
EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
REAR HEADREST-WITH(RH/LH/CENTER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)&REAR HEADREST-WITH(RH/LH)
REAR HEADREST-WITH(RH/LH)
EXHAUST EMISSION CONTROL-WITHOUT&REAR HEADREST-WITH(RH/LH)
ASSIST GRIP-ROOF:3&REAR HEADREST-WITH(RH/LH)
main64101-KK090iGUN122..LHD..L..GEN;GUN125..LHD..H..GEN;GUN126..LHD..6FC..GEN;GUN125..6FC..(H,L)..(GEN,IDN);GUN135,TGN126..L..(ARL,LA,TH);GUN122,125..ARL,LA,MA,PH,TH,VN;GUN126..6F.202408-202411
REAR HEADREST-WITH(RH/LH/CENTER)
main64101-KK270iGUN125..H..GCC;GUN122..5F..(H,S);GUN125..LHD..S..GEN;GUN122,135..L..(GCC,VN);GUN125..RHD..(H,S)..GEN;GUN125..(L,S)..(GCC,IDN);GGN125,GUN126,TGN12#..GCC;GUN125,TGN12202411
REAR HEADREST-WITH(RH/LH)
main64101-KK290iGUN125..6F..H..GCC;TGN126..(H,L)..GCC;GUN125..LHD..S..GEN;GUN125..RHD..(H,S)..GEN;GUN125..6F..L..(GCC,GEN);GUN122,TGN121..5F..S..CBU;GUN122,126..RHD..(5F,6FC)..GEN;202411
REAR HEADREST-WITH(RH/LH/CENTER)
64147DPLATE, BACK PANEL CORNER, UPPER
64810WINDOW ASSY, BACK
main64801-0K112iGUN126..S..ARL;GUN136..6FC..S;GUN125..LHD..H..GEN;GUN125..RHD..(H,S)..GEN;GUN125..THP..6F..L..(GEN,SA);GUN126..THP..6F..(GEN,LA,PH,TH);GUN135,TGN126..THP..L..(ARL,L202408
REAR WINDOW DEFOGGER-WITH
main64801-0K122iTGN126..THP..SA;GUN126..RHD..6FC..S..GEN;GUN122,125..MTM..(IDN,PH);GUN135,TGN126..L..(GEN,TH);GUN125..LHD..THP..S..(GEN,SA);GUN122,125..RHD..(5F,6FC)..(H,L)..(GEN,I202408
REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-FIX TYPE(PRIVACY)
REAR WINDOW DEFOGGER-WITH
EXPORT FROM SA&REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-FIX TYPE(GREEN)
REAR WINDOW DEFOGGER-WITHOUT
NIGERIA SPEC&REAR WINDOW DEFOGGER-WITHOUT
SUB-SAHARAN AFRICA SPEC(EURO 2)&REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN)&REAR WINDOW DEFOGGER-WITHOUT
BACK GLASS-SLIDING TYPE(GREEN)
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
BACK GLASS-FIX TYPE(GREEN)
64819ASPACER, BACK WINDOW GLASS, NO.2
BACK GLASS-FIX TYPE(GREEN)
64827DCLIP, BACK WINDOW GLASS
BACK GLASS-FIX TYPE(GREEN)
66243DPROTECTOR, REAR BODY, NO.1
90105T0135
main90105-T0135
90119T0208
main90119-T0208
9046706169
main90467-06169
19 parts on this diagram · 1 diagram in section
ROOF PANEL & BACK PANEL for Toyota HILUX (DOUBLE CAB)
This section contains 19 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX (DOUBLE CAB). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
