Toyota HILUX (DOUBLE CAB) — PRE-COLLISION SYSTEM
5553COWL PANEL & WINDSHIELD GLASS
86461HOOD, FORWARD RECOGNITION
main86401-71010iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN); GUN135..6FC..H;GUN126..PH,TH,VN;GUN125..6FC..L..GEN;GUN135..6F..H..(PH,TH);GUN126..LHD..THP..6FC..H..DCRL..(GCC,GEN)202308-202408
ACTIVE SAFETY PACKAGE-WITH
86464ALATCH, FORWARD RECOGNITION
main86464-26010iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN); GUN135..6FC..H;GUN126..PH,TH,VN;GUN125..6FC..L..GEN;GUN135..6F..H..(PH,TH);GUN126..LHD..THP..6FC..H..DCRL..(GCC,GEN)202308-202408
ACTIVE SAFETY PACKAGE-WITH
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-71030iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN); GUN135..6FC..H;GUN126..PH,TH,VN;GUN125..6FC..L..GEN;GUN135..6F..H..(PH,TH);GUN126..LHD..THP..6FC..H..DCRL..(GCC,GEN)202308-202408
ACTIVE SAFETY PACKAGE-WITH
8646CCAMERA, FORWARD RECOGNITION
main8646C-71014iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN); GUN135..6FC..H;GUN126..PH,TH,VN;GUN125..6FC..L..GEN;GUN135..6F..H..(PH,TH);GUN126..LHD..THP..6FC..H..DCRL..(GCC,GEN)202308-202408
ACTIVE SAFETY PACKAGE-WITH
9046705171
main90467-05171

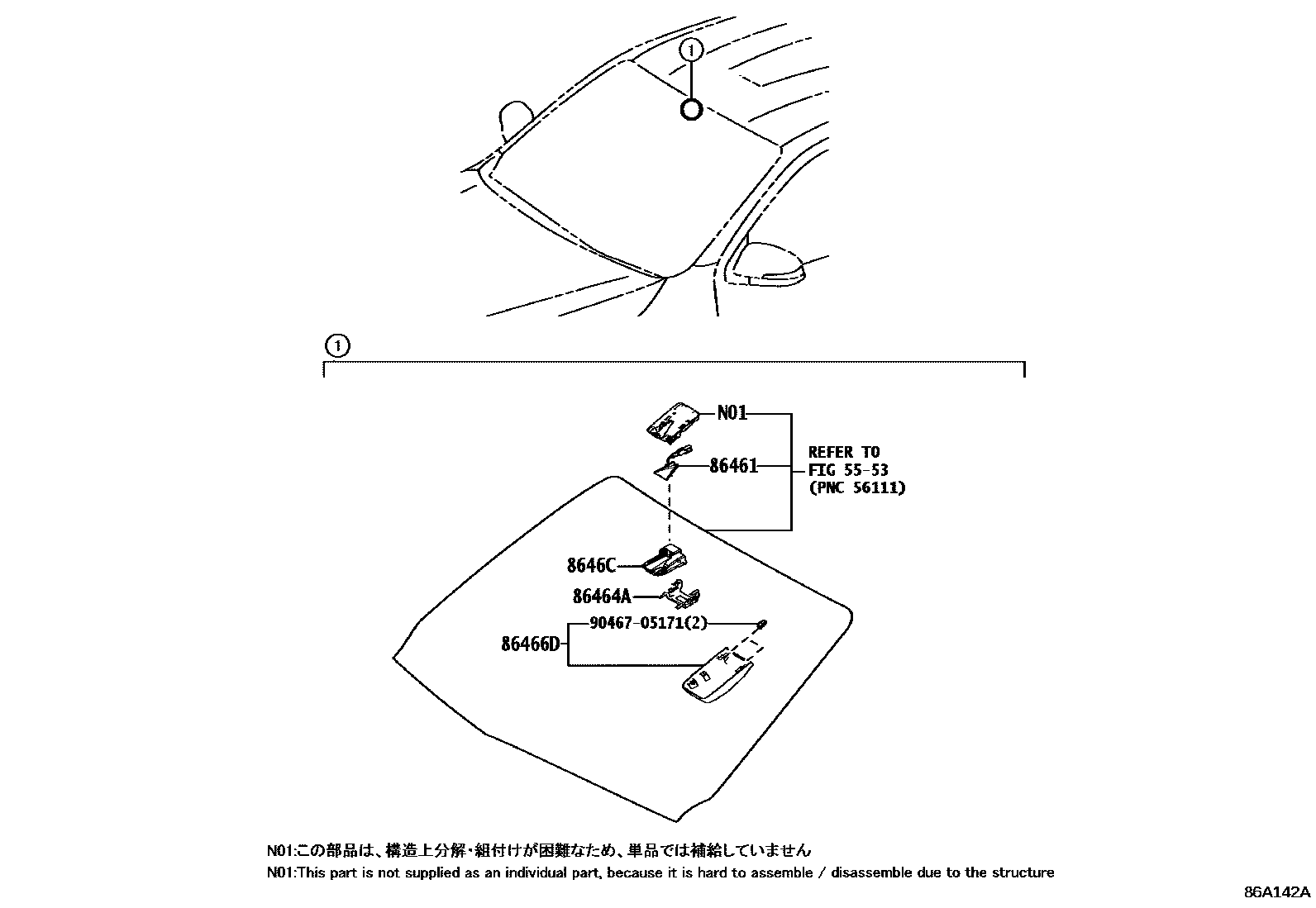

6 parts on this diagram · 1 diagram in section
PRE-COLLISION SYSTEM for Toyota HILUX (DOUBLE CAB)
This section contains 6 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota HILUX (DOUBLE CAB). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, CAMERA, FORWARD RECOGNITION.
