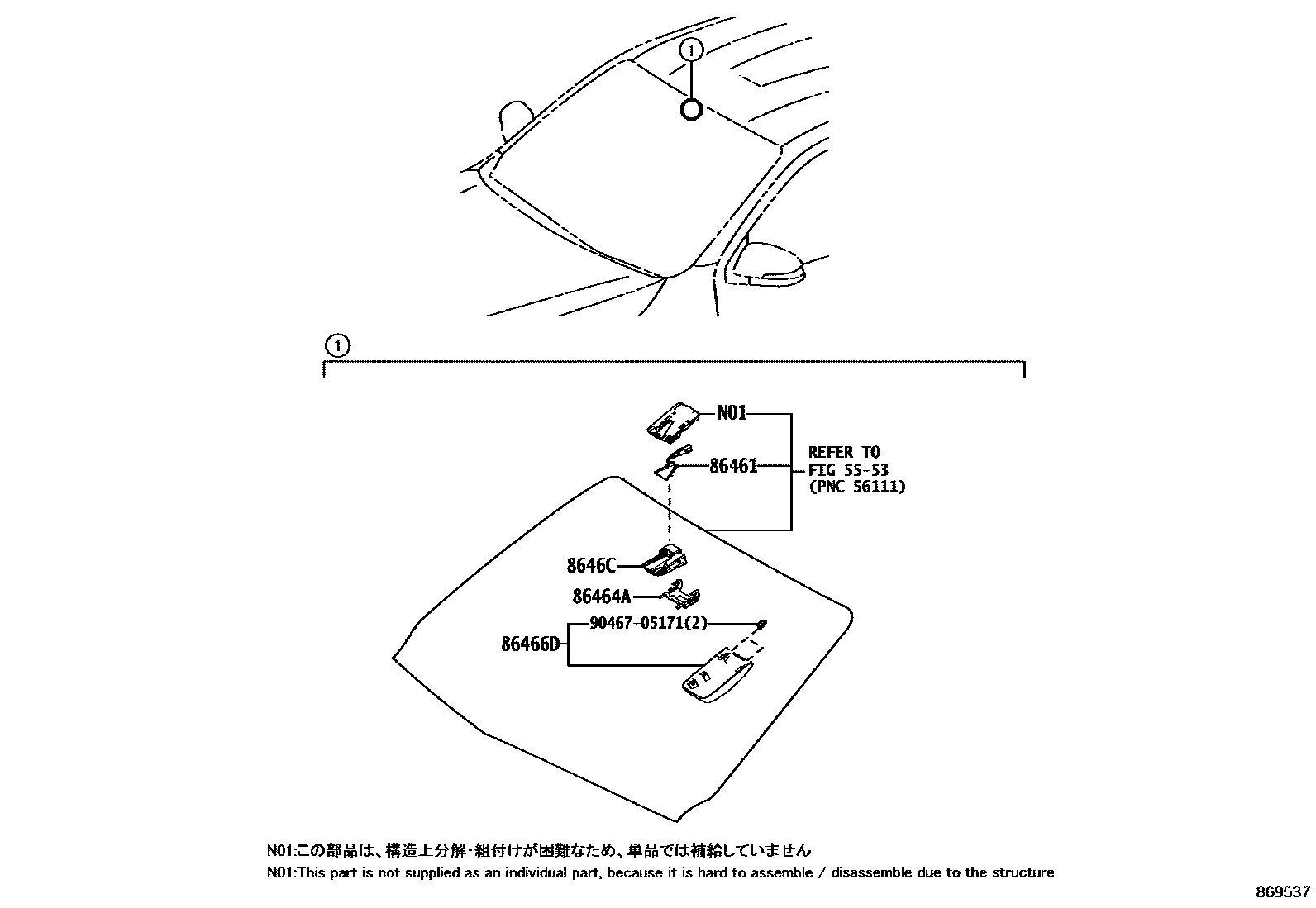

Toyota HILUX (DOUBLE CAB) — PRE-COLLISION SYSTEM

5553

86461HOOD, FORWARD RECOGNITION

main86401-71010iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN)202208-202307

ACTIVE SAFETY PACKAGE-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-26010iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN)202208-202307

ACTIVE SAFETY PACKAGE-WITH

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-71030iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN)202208-202307

ACTIVE SAFETY PACKAGE-WITH

8646CCAMERA, FORWARD RECOGNITION

main8646C-71013iGUN125,13#,TGN121..THP..(ARL,LA);GUN126..THP..(H,S)..(ARL,LA,TWN)202208-202307

ACTIVE SAFETY PACKAGE-WITH

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
