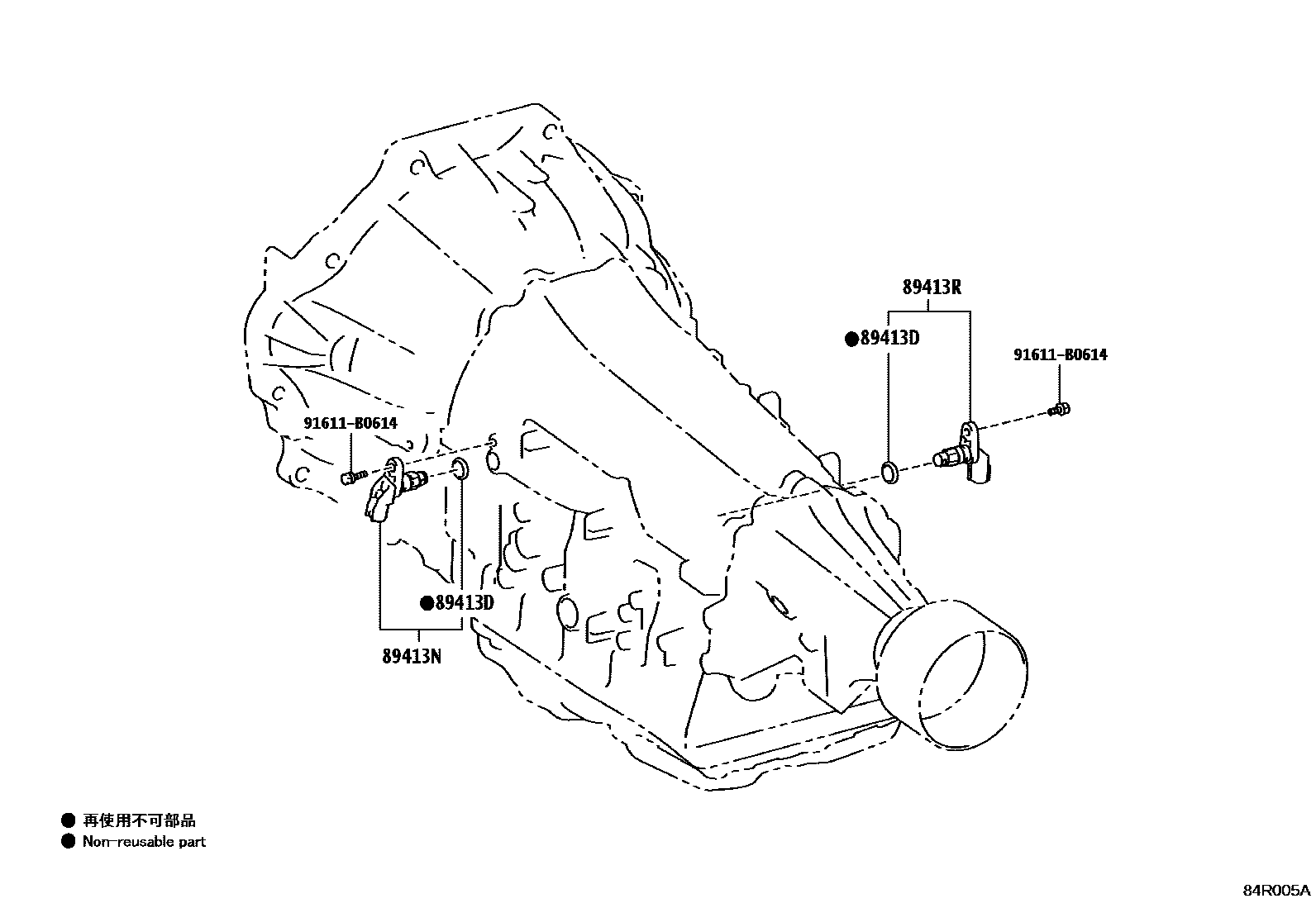

Toyota HILUX (DOUBLE CAB) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)
main90301-11008iGUN126..6F..H..(ARL,GCC,GEN,TH);GGN125,GUN126,TGN121,126..THP..6FC..(DCRL,HTWC)..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN126..6F..PH;GUN126..6F..S..ARL; GUN126..6FC..DCRL..GCC; GUN126..6FC..TH; GUN126..6FC..TH;GUN126..MHV..(ARL,GCC,LA);GUN120,121,125,13#..THP..6FC; GUN135..6FC..TH202308-202407
TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT; VSC-WITH(*HSAC & *TSC & *DAC & LSD)
89413NSENSOR, TRANSMISSION REVOLUTION, (NT)
main89413-12020iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
89413RSENSOR, TRANSMISSION REVOLUTION (SP2)
main89413-12020iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
91611B0614
main91611-B0614
4 parts on this diagram · 2 diagrams in section
OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota HILUX (DOUBLE CAB)
This section contains 6 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota HILUX (DOUBLE CAB). Key components include: SENSOR, TRANSMISSION REVOLUTION, RING, O(FOR TRANSMISSION REVOLUTION SENSOR), SENSOR, TRANSMISSION REVOLUTION, (NT), SENSOR, TRANSMISSION REVOLUTION (SP2).
