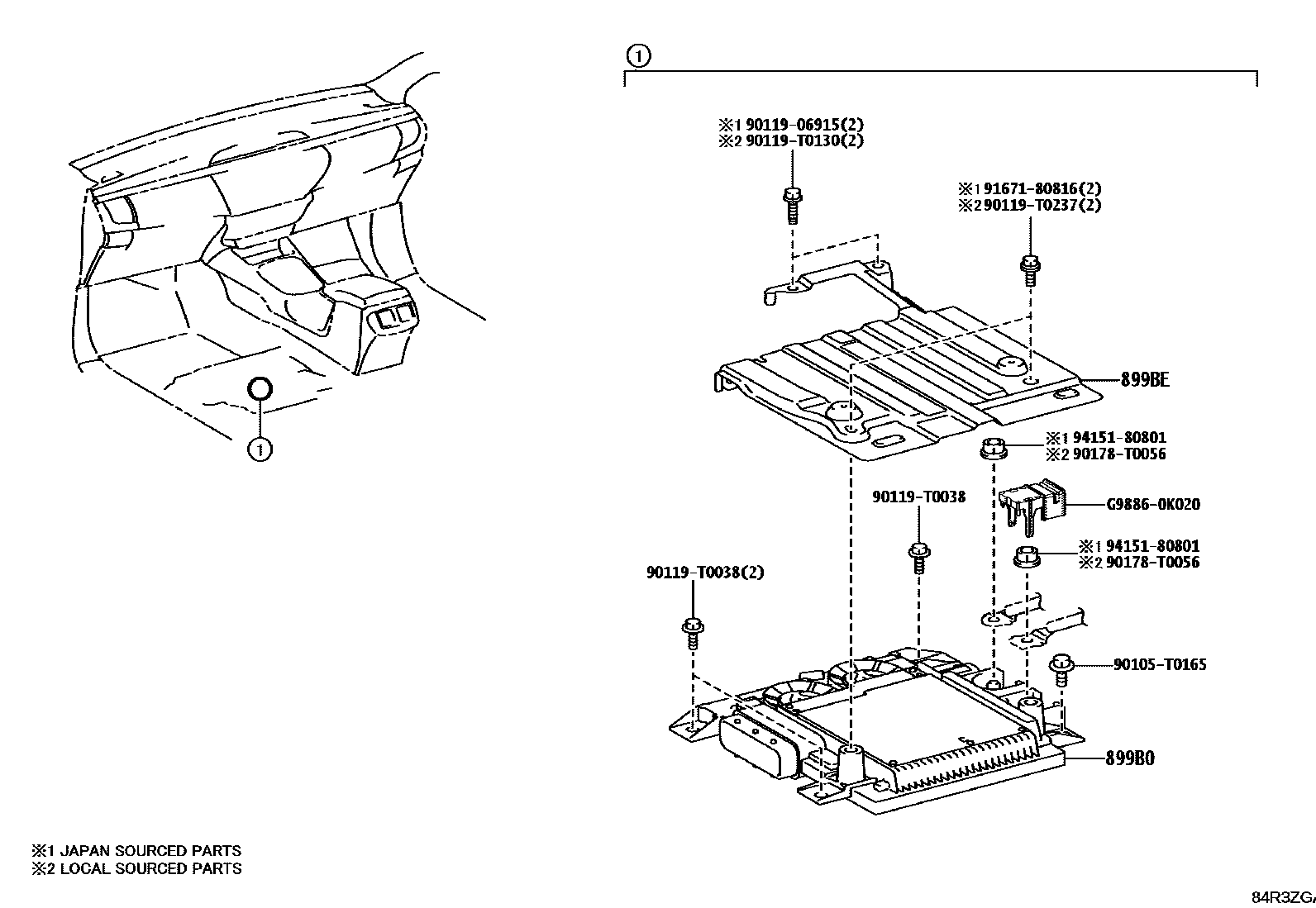

Toyota HILUX (DOUBLE CAB) — HEV CONTROL COMPUTER
899B0COMPUTER ASSY, 48V CONTROL W/CONVERTER
GCC SPEC EURO4 2018MY; GCC SPEC EURO4 2022MY
899BECOVER, 48V CONTROL W/CONVERTER
90105T0165
main90105-T0165
9011906915
main90119-06915
90119T0038
main90119-T0038
90119T0130
main90119-T0130
90119T0237
main90119-T0237
90178T0056
main90178-T0056
9167180816
main91671-80816
9415180801
main94151-80801
G98860K020COVER, 48V BATTERY TERMINAL
mainG9886-0K020
11 parts on this diagram · 1 diagram in section
HEV CONTROL COMPUTER for Toyota HILUX (DOUBLE CAB)
This section contains 11 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota HILUX (DOUBLE CAB). Key components include: COMPUTER ASSY, 48V CONTROL W/CONVERTER, COVER, 48V CONTROL W/CONVERTER.
