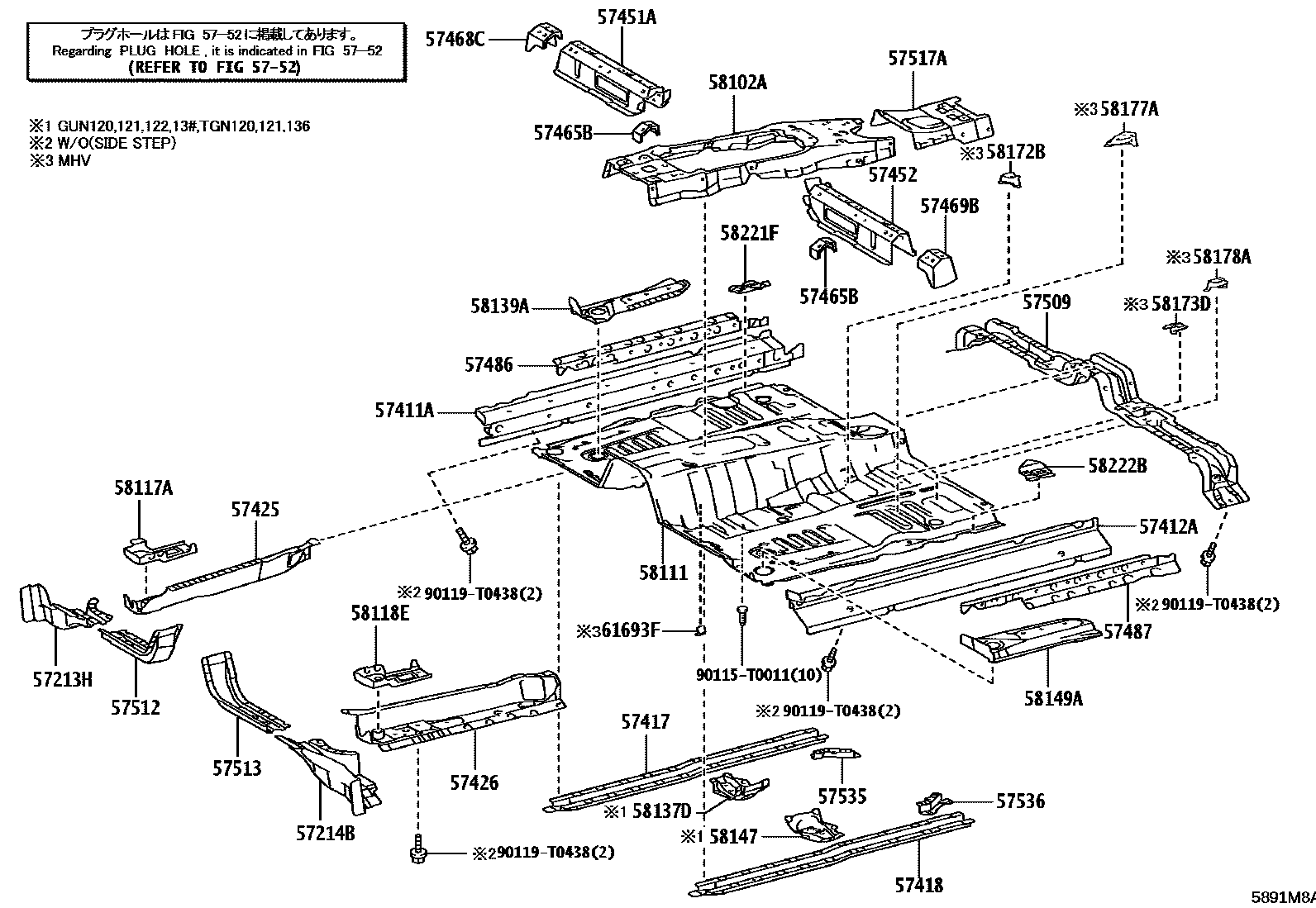

Toyota HILUX (DOUBLE CAB) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
main57412-KK020iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57465BBRACKET, FRONT SEAT, INNER
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-KK010iTGN121..LHD;GUN136..6F..H;GUN120,121,122,135,TGN120,136;GUN136,TGN121..6FC..(DCRL,HTWC)..(ARL,BZAG,SA)202408
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
main57513-0K010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
57535BRACE, FRONT FLOOR, RH
main57535-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
57536BRACE, FRONT FLOOR, LH
main57536-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
main58111-KK120iGUN126..L..LA;GUN135..S..LA;GUN135..THP..L..LA;GUN126..LHD..6F..(H,S);GUN135..LHD..6F..(BZAG,GEN,PH,SA,VN);GUN122,125,136,LAN125,TGN12#,136..LHD..MTM202408
main58111-KK130iGUN126..6FC..H..BZAG;GGN125,GUN125,13#,TGN121,126..LHD..6FC;GUN126..LHD..6FC..(GCC,GEN,GHA,LA,MMR,PH,SA,VN)202408
main58111-KK150iGUN125..AGTP..6F..LA;GUN126,135..AGTP..6F..S..LA; GUN125..AGTP..6F..S; GUN125..AGTP..L..LA; GUN126..6F..L..BZAG;GUN135..AGTP..L..LA202411
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C WITHOUT(ON BOARD DIAGNOSIS); COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main58111-KK170iGUN125..6FC..LA;GUN126..6FC..H..DCRL..LA; GUN126..TWN;GUN126..6FC..(L,S)..BZAG202408
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118EBRACKET, JACK SET
58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH
58139APLATE, FRONT FLOOR SIDE, REAR RH
main58139-KK010iTGN121..LHD;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..6FC..(ARL,BZAG,SA);GGN125,GUN120,121,122,125,135,LAN125,TGN120,126,136;GUN126..(AGTP,CAMP,GHAP,INDP,KENP,MAP,MMRP,SAP,THP)..CBU202408
58147BRACKET, FRONT FLOOR HOUSING, FRONT LH
main58147-KK010iTGN121..LHD;GUN136..6F..H;GUN120,121,122,135,TGN120,136;GUN136,TGN121..6FC..(ARL,BZAG,SA)202408
58149APLATE, FRONT FLOOR SIDE, REAR LH
58172BBRACKET, COMPUTER MOUNTING, NO.3
58173DBRACKET, COMPUTER MOUNTING, NO.4
58177AEXTENSION, FRONT FLOOR PANEL, RH
58178AEXTENSION, FRONT FLOOR PANEL, LH
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
main58221-KK010iGUN126..S..IV3;GUN136..6FC..ARL;GUN126..H..MHV..IV3;GUN126..(ARL,TWN)..CBU;GUN125,135,TGN121..(6F,6FC)..ARL202408
main58221-KK020iGGN125,GUN12#,13#,LAN125,TGN12#,136..BZAG,GCC,GEN,GHA,IDN,IND,KEN,LA,MA,MMR,PH,SA,TH,VN202408
58222BREINFORCEMENT, FLOOR PANEL, FRONT LH
main58222-KK020iGGN125,GUN12#,13#,LAN125,TGN12#,136..BZAG,GCC,GEN,GHA,IDN,IND,KEN,LA,MA,MMR,PH,SA,TH,VN202408
61693FBRACKET, FRONT FLOOR
90115T0011
main90115-T0011
90119T0438
main90119-T0438
39 parts on this diagram · 5 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX (DOUBLE CAB)
This section contains 60 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX (DOUBLE CAB). Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH.
