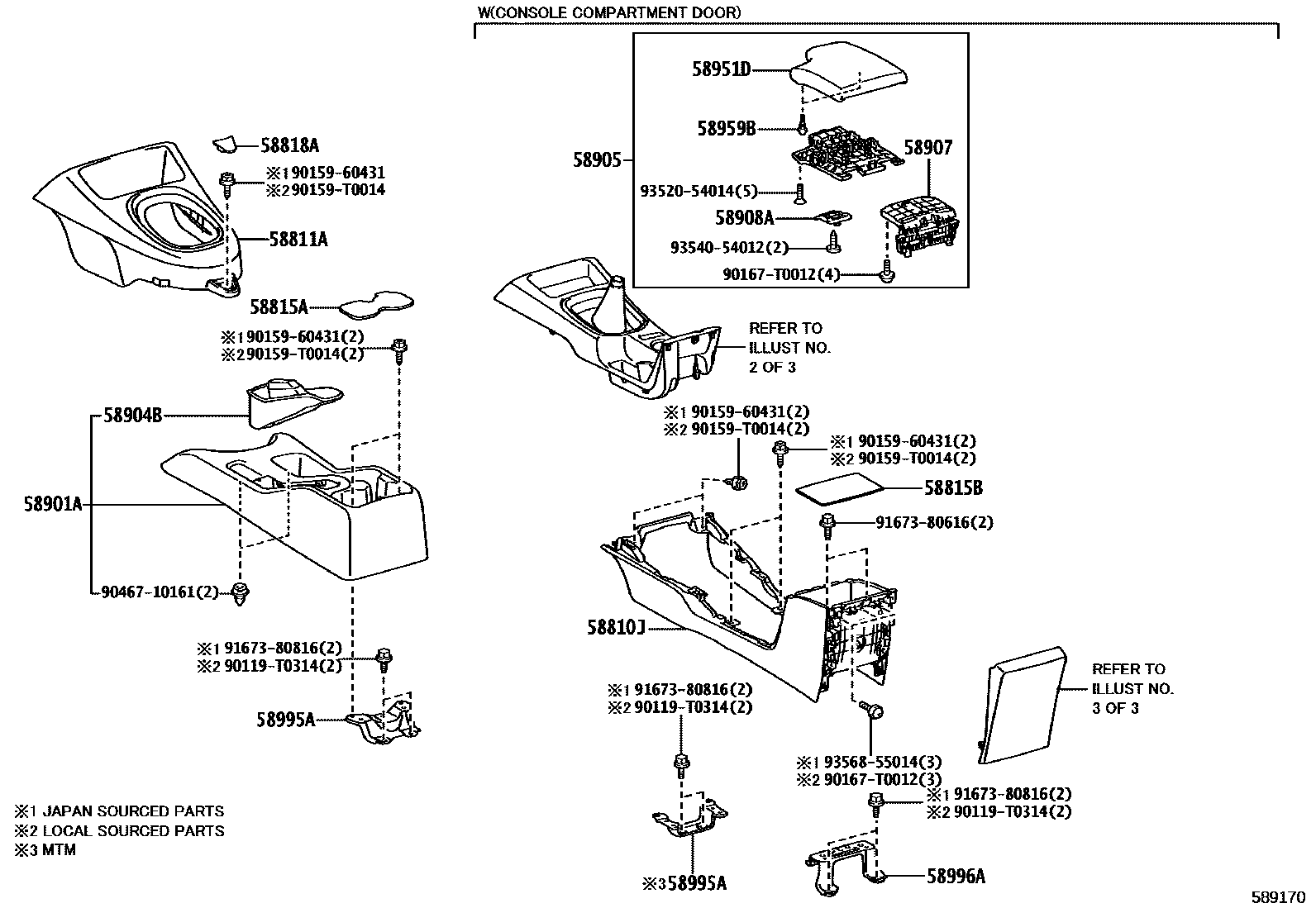

Toyota HILUX (DOUBLE CAB) — CONSOLE BOX & BRACKET
58810JBOX ASSY, CONSOLE
main58810-KK110-C0iGUN125..6F..(H,S)..GCC;GUN122,126,TGN121,126..MTM..H..GCC; GUN125..LHD..L..GEN; TGN126..THP..(H,S)..LA;GUN135..THP..6F..(H,S)..(GEN,LA);GUN126..LHD..THP..6F..H..(GEN,LA,PH);GUN122,126..THP..MTM..S..(ARL,GEN,LA);GUN121,122,135..6F..(L,S)..(PH,TH,VN);GUN125,135,TGN121..MTM..(H,L)..(ARL,PH);GUN125,136..THP..6F..(H,S)..(ARL,GEN,IDN,LA,SA,TH,VN)202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#; OCEANIA GENERAL SPEC,BLACK,TRIM2#; OCEANIA(EURO 5 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; OCEANIA GENERAL SPEC,BLACK,TRIM2#
BLACK,TRIM2#
58811ABOX, CONSOLE, FRONT
main58802-KK010-C0iGUN122,TGN12#..5F..(L,S)..GCC; TGN126..THP..L..LA;GUN122,TGN121,136..L..(GEN,PH)202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#
main58802-KK020-C0iGUN125,126,135..THP..6F..L..(GEN,IDN,LA,SA); GUN125..6F..L..GCC; GUN125..LHD..L..GEN202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
main58815-KK020iGUN125..LHD..L..GEN; TGN121..5F..S;GUN122..RHD..GEN;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU; TGN126..THP..L..LA;GUN125..THP..6F..L..(GEN,IDN,LA);GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,PH)202308-202407
ASIA COLD COUNTRY SPEC; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); MOROCCO SPEC
58815BCARPET, CONSOLE BOX
58818ACOVER, CONSOLE BOX, FR
main58818-KK010-C0iGUN122..RHD..GEN;GUN125..THP..L..SA; GUN125..6F..L..GCC;GUN122,TGN12#..5F..(L,S)..GCC202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main58901-KK030-C0iGUN125..LHD..L..GEN; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU; TGN126..THP..L..LA;GUN125..LHD..THP..L..(GEN,LA);GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,PH)202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
main58904-KK070-C0iGUN125..LHD..L..GEN; GUN125..PH;TGN126..L..GEN;GUN135..GEN,PH,VN;GUN135..THP..S..LA;TGN126..THP..(H,S)..(GEN,LA);GUN122,125,126,136..LHD..THP..(H,S)..(GEN,LA,PH,SA,TWN,VN); TGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main58904-KK090-C0iGUN125..LHD..L..GEN; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU; TGN126..THP..L..LA;GUN125..LHD..THP..L..(GEN,LA);GUN122,126,135,TGN121,136..LHD..THP..L..(GEN,LA,PH)202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
GR SPORT,BLACK/GR RED,TRIM23; MLM ADVENTURE PACKAGE,BLACK/GR RED,TRIM23
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK,TRIM2#
main58905-KK020-C4iGUN125..LHD..L..GEN; GUN125..PH;TGN126..6FC..L;TGN126..L..GEN;TGN126..S..(GCC,GEN);GUN125..6FC..(L,S)..GCC;GUN125..THP..6F..S..(GCC,SA,VN);GUN135,TGN121..(6F,6FC)..(L,S)..(GCC,VN)202308-202407
ASIA COLD COUNTRY SPEC,BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
BLACK/GR RED,TRIM23
BLACK/BLACK,TRIM20
BLACK/GR RED,TRIM23; DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
main58905-KK040-C5iGGN125..LA;GUN136..BZAG;GUN126..6F..H..BZAG; GUN126,136..AGTP..6F..H..LA; GUN126..6FC..H..BZAG; GUN126..AGTP..6FC..H..LA202311-202410
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20,21; DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/BLACK,TRIM20,21; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM20,21
main58905-KK070-C8iGUN126..RHD..6FC..S..GEN; GUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
BLACK/BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#; FRONT AIR CONDITIONER-AUTO,BLACK/BLACK,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
main58905-KK080-C8iGUN125..LHD..L..GEN; TGN126..5F..H..GCC; TGN126..H..GEN;GUN126..LHD..S..GEN;GUN135..THP..(H,S)..(LA,PH);GUN122,125..LHD..THP..S..(GEN,LA);GUN126,136,TGN126..THP..(H,S)..(LA,PH,VN)202308-202407
BLACK/BLACK,TRIM2#; HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/BLACK,TRIM2#; MOROCCO SPEC,BLACK/BLACK,TRIM2#
main58905-KK110-C0iGUN125,135..S..TH; GUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN; GUN126..6FC..TH202308-202407
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20,21,25; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
BLACK/GR RED,TRIM23; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FORGR SPORT),BLACK/GR RED,TRIM2#
main58905-KK120-C0iGUN126,136..THP..H..LA;TGN126..THP..H..(GEN,LA); GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..PH; GUN126..THP..6F..H..LA; GUN126..THP..6FC..H..(LA,PH); GUN126..VN; GUN126..VN;GUN126..6F..PH;GUN135..6FC..H..PH; GUN135..H..PH;GUN126..6F..PH; TGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
BLACK/BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#; GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#; MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#; MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#; MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#; MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#; MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#; MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
BLACK/MAROON,TRIM3#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/MAROON,TRIM3#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-KK010-C0iGUN125..6F..(ARL,PH);GUN126..MHV..(ARL,LA);GUN135..ARL,GEN,PH,TH,VN;GUN122,135..THP..S..(GEN,LA);TGN126..THP..(H,S)..(GEN,LA);GUN125,TGN126..(5F,6FC)..L..(ARL,GEN);GUN120,121,122,136,TGN121..THP..(ARL,LA,TH);GUN125,126..THP..(H,S)..DCRL..(ARL,GEN,IDN,LA,PH,SA,TH,TWN,VN); GUN125..LHD..L..GEN; TGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; MOROCCO SPEC,BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-KK010iGUN125..LHD..L..GEN; TGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(GEN,LA);GUN125,TGN121..MTM..(ARL,PH);GGN125,GUN120,121,122,136,TGN121..THP..(6F,6FC);GUN126,TGN126..THP..(H,S)..(DCRL,HTWC)..(ARL,GCC,GEN,LA,PH,TH,TWN,VN)202308-202407
ASIA COLD COUNTRY SPEC; MOROCCO SPEC
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
main58951-KK020-C5iGUN126..RHD..6FC..S..GEN; GUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
BLACK/GRAY,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#; CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#; FRONT AIR CONDITIONER-AUTO,BLACK/GRAY,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#; NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20,21
BLACK/GR RED,TRIM23
BLACK,TRIM2#
RED,TRIM3#
main58951-KK080-C3iGUN125..LHD..L..GEN; TGN126..5F..H..GCC; TGN126..H..GEN;GUN126..LHD..S..GEN;GUN135..THP..(H,S)..(LA,PH);GUN122,125..LHD..THP..S..(GEN,LA);GUN126,136,TGN126..THP..(H,S)..(LA,PH,VN)202308-202407
BLACK/GRAY,TRIM2#; HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/GRAY,TRIM2#; MOROCCO SPEC,BLACK/GRAY,TRIM2#
main58951-KK090-C1iGGN125..LA;GUN136..BZAG;GUN126..6F..H..BZAG; GUN126,136..AGTP..6F..H..LA; GUN126..6FC..H..BZAG; GUN126..AGTP..6FC..H..LA202311-202410
BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20,21; DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GRAY,TRIM20,21; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM20,21
BLACK/GR RED,TRIM23; DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23; DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
main58951-KK120-C0iGUN125,135..S..TH; GUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN; GUN126..6FC..TH202308-202407
BLACK,TRIM2#; BLACK,TRIM20,21,25; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM23; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FORGR SPORT),BLACK/GR RED,TRIM2#
BLACK,TRIM2#
MAROON,TRIM3#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,MAROON/MAROON,TRIM3#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main90541-T0008×2iGUN125..LHD..L..GEN; TGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(GEN,LA);GUN125,TGN121..MTM..(ARL,PH);GGN125,GUN120,121,122,136,TGN121..THP..(6F,6FC);GUN126,TGN126..THP..(H,S)..(DCRL,HTWC)..(ARL,GCC,GEN,LA,PH,TH,TWN,VN)202308-202407
ASIA COLD COUNTRY SPEC; MOROCCO SPEC
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-KK020iGUN125..LHD..L..GEN; TGN126..L..GEN;GUN122,TGN121..5F..H;GUN125,TGN121..MTM..(ARL,PH);GUN122,135..THP..S..(GEN,LA);GUN125,126,136..THP..6F..(H,S);GUN121,122,135..6F..(GEN,PH,TH,VN);TGN126..THP..5F..(H,S)..(GCC,GEN,LA)202308-202407
ASIA COLD COUNTRY SPEC; MOROCCO SPEC
main58995-KK030iGUN126..AGTP..L..LA;GUN122,125,135,LAN125,TGN121,126,136..(AGTP,SAP)..MTM..L202308-202410
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-KK020iGUN122..PH,TH;TGN126..6FC..L;GUN122..LHD..GEN;GUN122,TGN121..5F..H;GUN125,TGN121..THP..6FC;TGN126..THP..L..(GEN,LA);GUN126..MHV..(ARL,GCC,LA);GUN125..THP..6F..(H,S)..(GCC,SA);TGN126..THP..(H,S)..(GCC,GEN,LA);GUN125,TGN121..THP..MTM..(ARL,GEN,IDN,LA,PH,TH,VN);GGN125,GUN120,121,126,13#,TGN136..THP..(DCRL,HTWC); TGN121..5F..S;GUN122..RHD..GEN;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
90119T0314
main90119-T0314
9015960431
main90159-60431
90159T0014
main90159-T0014
90167T0012
main90167-T0012
9046710161
main90467-10161
9167380616
main91673-80616
9167380816
main91673-80816
9352054014
main93520-54014
9354054012
main93540-54012
9356855014
main93568-55014
24 parts on this diagram · 4 diagrams in section
CONSOLE BOX & BRACKET for Toyota HILUX (DOUBLE CAB)
This section contains 40 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX (DOUBLE CAB). Key components include: PANEL SUB-ASSY, CONSOLE, UPPER, BOX ASSY, CONSOLE, BOX, CONSOLE, FRONT, CARPET, CONSOLE BOX.
