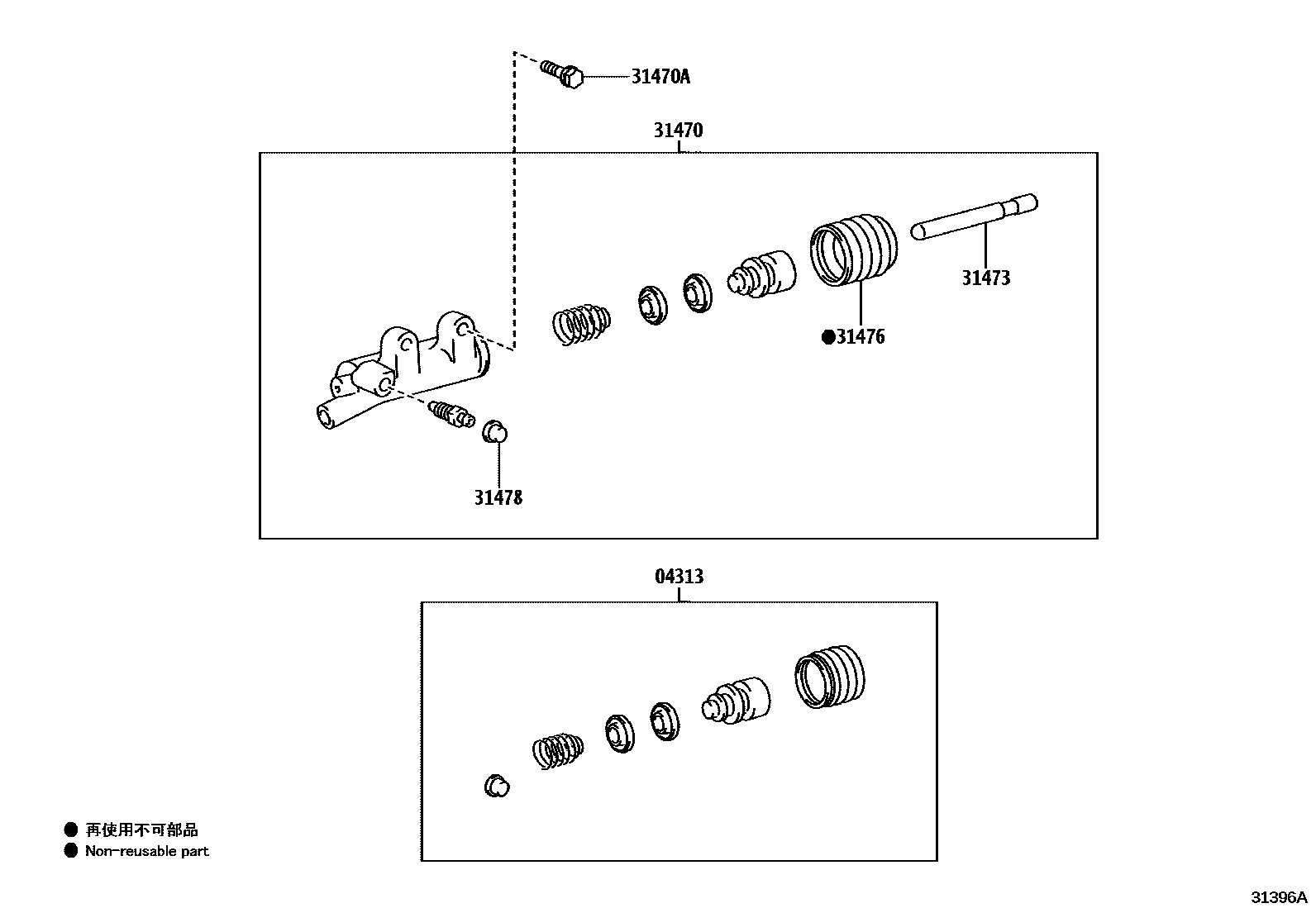

Toyota HILUX (DOUBLE CAB) — CLUTCH RELEASE CYLINDER
04313CYLINDER KIT, CLUTCH RELEASE
31470CYLINDER ASSY, CLUTCH RELEASE
31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
*8-1.25PX25-20.1
31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31476BOOT, CLUTCH RELEASE CYLINDER
main31476-04010iTGN126..THP..5F..(GCC,GEN,LA);GUN121,122,125,126,13#,TGN120,121,136..THP..MTM202308-202407
31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
main31478-30010iTGN126..THP..5F..(GCC,GEN,LA);GUN121,122,125,126,13#,TGN120,121,136..THP..MTM202308-202407
6 parts on this diagram · 3 diagrams in section
CLUTCH RELEASE CYLINDER for Toyota HILUX (DOUBLE CAB)
This section contains 7 genuine Toyota parts for the CLUTCH RELEASE CYLINDER system of the Toyota HILUX (DOUBLE CAB). Key components include: CYLINDER KIT, CLUTCH RELEASE, CLUTCH PEDAL & FLEXIBLE HOSE, CYLINDER ASSY, CLUTCH RELEASE, BOLT(FOR CLUTCH RELEASE CYLINDER SETTING), ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1.
