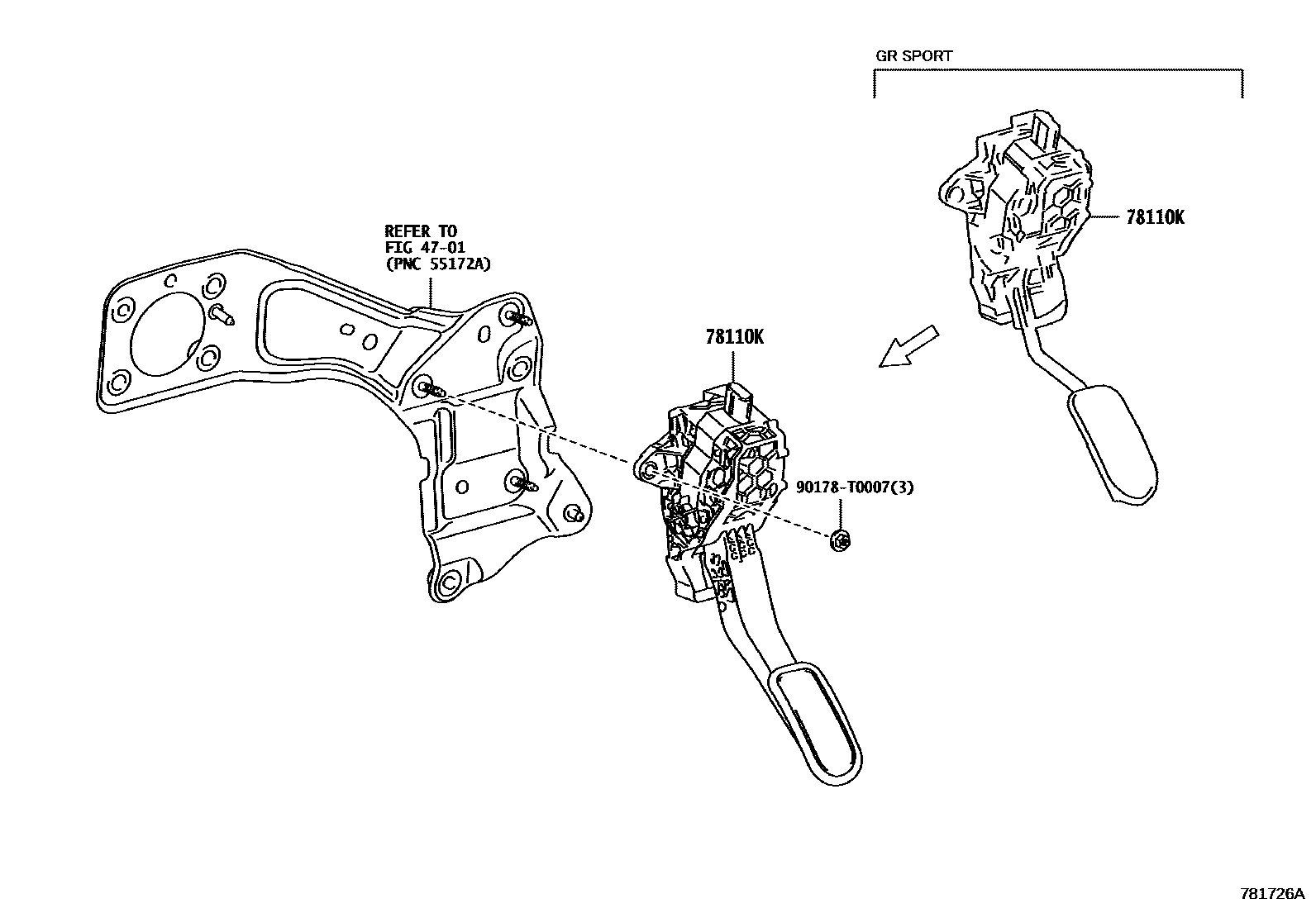

Toyota HILUX (DOUBLE CAB) — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-KK011i202108-202301

main78110-KK021i202108-202207

main78110-KK030i202302

GR SPORT

main78110-KK041i202109-202301

GR SPORT

90178T0007

main90178-T0007

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota HILUX (DOUBLE CAB)

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX (DOUBLE CAB). Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
