Toyota HILUX (DOUBLE CAB) — WINDSHIELD WASHER

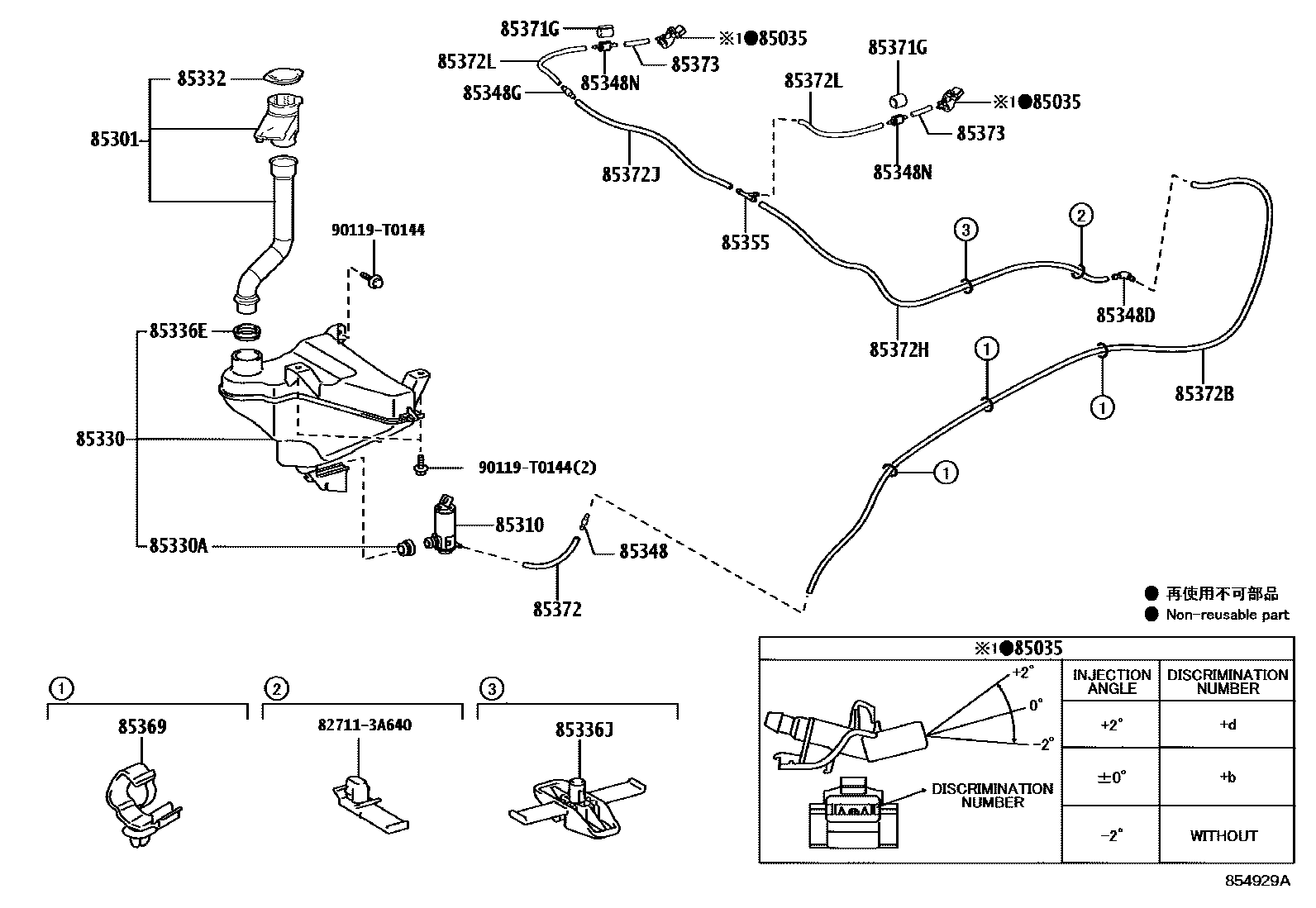

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-0K070×2i202208-202403
ANGLE 0
main85381-0K080×2i202208-202403
ANGLE -2
main85381-0K090×2i202208
ANGLE +2
85301INLET SUB-ASSY, WASHER
main85301-0K111i202208
main85301-0K140i202211-202310
main85301-0K160i202209-202308
main85301-0K190i202301-202403
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0K012i202208-202307
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K250i202208-202307
main85315-0K270i202301-202401
EXPORT FROM SA,TYPE A:REFER ILLUST.; NIGERIA SPEC,TYPE A:REFER ILLUST.; SUB-SAHARAN AFRICA SPEC(EURO 2),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main85315-0K280i202211-202310
main85315-0K460i202209-202308
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i202208-202309
85332CAP, WINDSHIELD WASHER JAR
main85316-16070i202209-202308
main85316-YE011i202208-202403
main85386-0K140i202211-202310
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160i202208-202307
85336JPROTECTOR, WASHER JAR
main85372-0K020i202208-202401
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-02330i202210-202309
main85375-06101i202208-202309
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85377-0D040i202208-202401
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85375-02330i202210-202309
main85375-06101i202208-202308
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85321-26020×2i202208-202307
85355VALVE, WINDSHIELD WASHER HOSE
main85321-0A010i202212-202307
main85321-28020i202208-202309
main85348-14390i202208-202307
85369CLAMP
main82711-0K070×3i202208-202310
85371GPROTECTOR, FRONT WASHER
main85389-26080×2i202208-202307
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33160i202208-202403
L=40
main90069-46081i202210-202309
L=300
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-59152i202208-202401
L=1445
main90069-46096i202210-202309
L=1445
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-33295i202208-202307
L=685
main90069-46078i202210-202309
L=40
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90068-33257i202208-202403
L=430
main90069-46077i202210-202309
L=430
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90068-33398×2i202208-202307
L=175
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33019×2i202208-202307
L=40
main90068-33251×2i202208-202309
L=235
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
90119T0144
main90119-T0144

23 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota HILUX (DOUBLE CAB)

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX (DOUBLE CAB). Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
