Toyota HILUX (DOUBLE CAB) — PRE-COLLISION SYSTEM

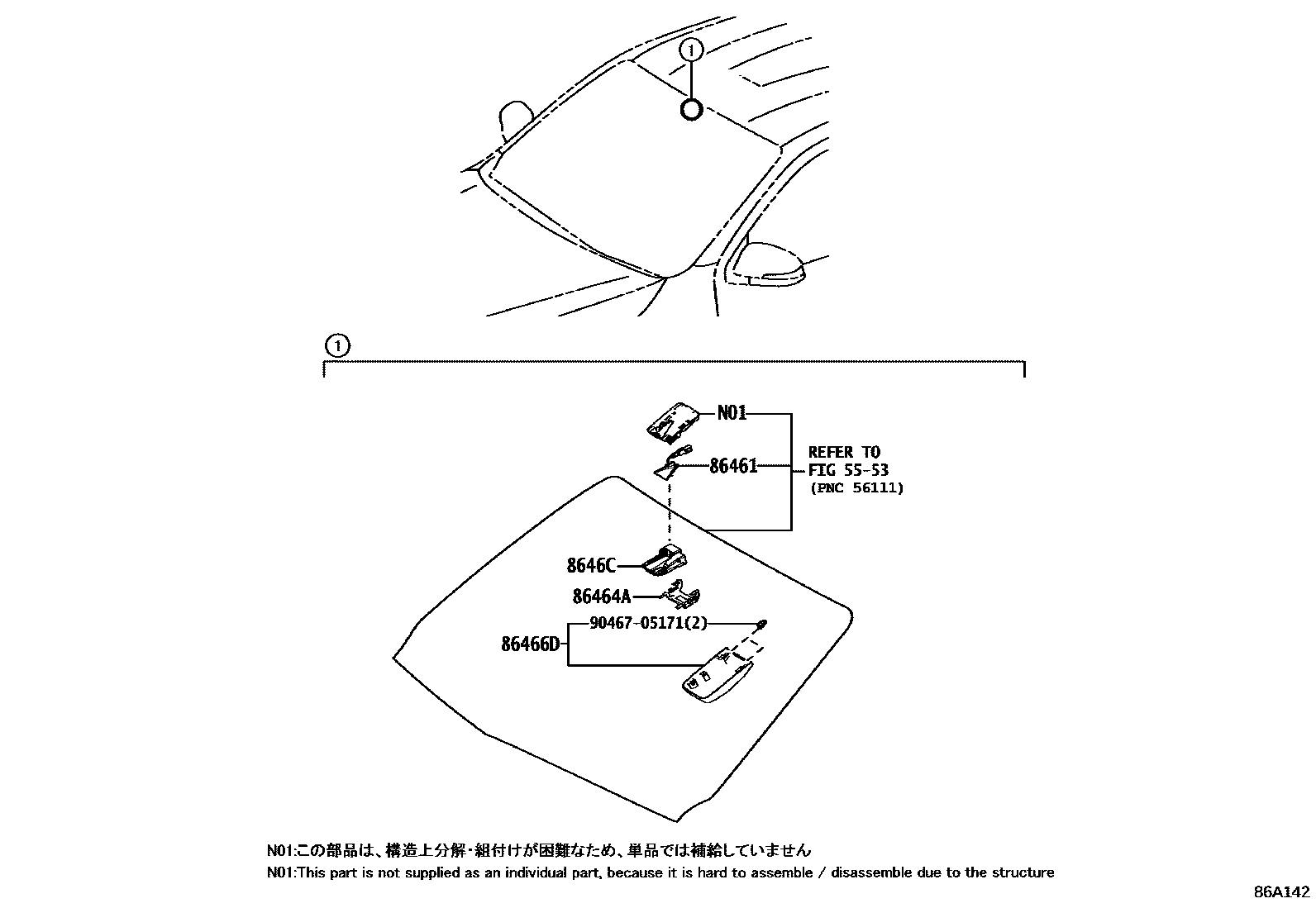

Parts diagram
5553COWL PANEL & WINDSHIELD GLASS
→ Go to FIG 55-53
86461HOOD, FORWARD RECOGNITION
main86401-71010202408-202411
86464ALATCH, FORWARD RECOGNITION
main86464-26010202408-202411
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-71030202408-202411
8646CCAMERA, FORWARD RECOGNITION
main8646C-71014202408-202411
9046705171
main90467-05171

6 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota HILUX (DOUBLE CAB)

This section contains 6 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota HILUX (DOUBLE CAB). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, CAMERA, FORWARD RECOGNITION.
