Toyota HILUX (DOUBLE CAB) — HEV CONTROL COMPUTER

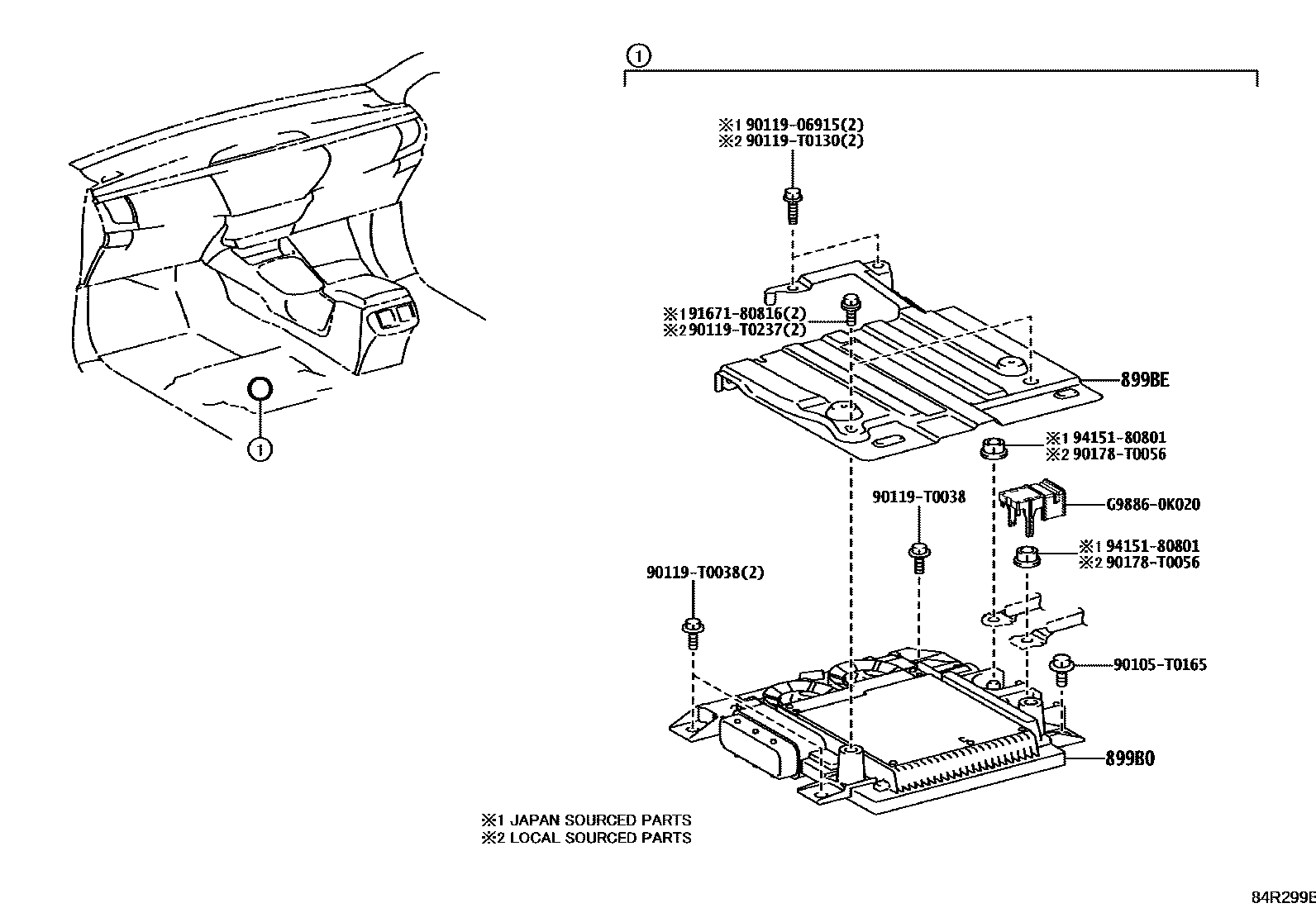

Parts diagram

899B0COMPUTER ASSY, 48V CONTROL W/CONVERTER

main899B0-71010i202311-202407

899BECOVER, 48V CONTROL W/CONVERTER

main899BE-0K010i202311-202407

90105T0165

main90105-T0165

9011906915

main90119-06915

90119T0038

main90119-T0038

90119T0130

main90119-T0130

90119T0237

main90119-T0237

90178T0056

main90178-T0056

9167180816

main91671-80816

9415180801

main94151-80801

G98860K020COVER, 48V BATTERY TERMINAL

mainG9886-0K020

11 parts on this diagram · 1 diagram in section
