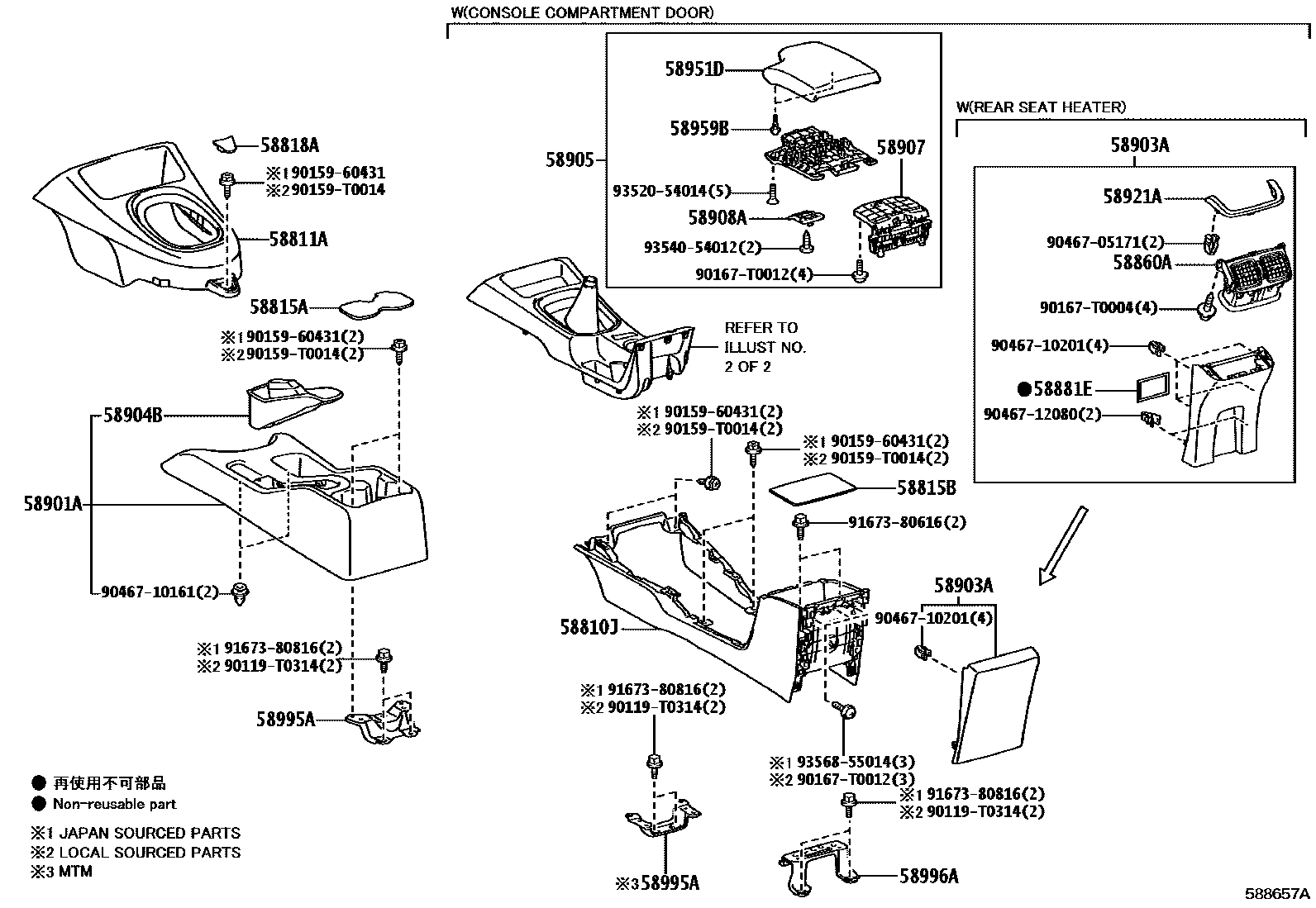

Toyota HILUX (DOUBLE CAB) — CONSOLE BOX & BRACKET
58810JBOX ASSY, CONSOLE
main58810-KK110-C0iGUN135..6F..H..PH;GUN126..THP..6F..S;TGN126..THP..(H,S)..LA;GUN122,125..6F..L..(ARL,PH,TH);GUN135..THP..6F..(H,S)..(GEN,LA);GUN126..LHD..THP..6F..H..(GEN,LA,PH);GUN202208-202307
BLACK,TRIM2#
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58811ABOX, CONSOLE, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
58815BCARPET, CONSOLE BOX
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM2#
58860AREGISTER ASSY, CONSOLE BOX
58881ESEAL, CONSOLE BOX AIR DAMPER, NO.1
MLM ADVENTURE PACKAGE&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER
58901ABOX SUB-ASSY, CONSOLE, REAR
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK,TRIM2#,3#
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK/SILVER,TRIM2#
MLM ADVENTURE WIDE TREAD,BLACK,TRIM2#
GR SPORT,BLACK/SMOKE SILVER,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM20,21,25
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main58904-KK090-C0iGUN125..LHD..THP..L..(GEN,LA);GUN122,126,135,TGN121,126,136..LHD..THP..L..(GEN,LA,PH)202208-202307
BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK/GR RED,TRIM23
MLM ADVENTURE PACKAGE,BLACK/GR RED,TRIM23
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-KK010-C7iGUN13#..(L,S)..ARL;GUN125..RHD..6FC..L;GUN126..RHD..THP..6FC..S;GUN125,126..6F..(L,S)..ARL;GUN120,122,TGN121..L..(ARL,TH)202208-202307
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58905-KK140
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
sub58905-KK140
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
main58905-KK110-C0iGUN125,13#..RHD..THP..H;GUN126..RHD..THP..6F..H;GUN126..RHD..6FC..H..(ARL,GEN)202208-202307
BLACK/BLACK,TRIM20,21,25
BLACK/GR RED,TRIM23
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
BLACK/MAROON,TRIM3#
BLACK/GR RED,TRIM23
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/MAROON,TRIM3#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
ASIA COLD COUNTRY SPEC
58921APANEL, REAR CONSOLE, UPPER
main58921-KK010supersedes 58921-KK010iGUN126,135..H..(ARL,GCC,GEN,TH,TWN);GGN125,GUN122,125,136,TGN121,126..H..(ARL,GCC)202208-202307
SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),SILVER,TRIM2#
MLM ADVENTURE PACKAGE
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),SMOKE SILVER METALLIC,TRIM2#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
main58951-KK010-C2iGUN13#..(L,S)..ARL;GUN125..RHD..6FC..L;GUN126..RHD..THP..6FC..S;GUN125,126..6F..(L,S)..ARL;GUN120,122,TGN121..L..(ARL,TH)202208-202307
BLACK,TRIM2#
BLACK/GRAY,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
RED,TRIM3#
main58951-KK080-C3iTGN126..AGTP..(H,S);GUN126,136..AGTP..H..LA;GUN125,126,135,TGN136..AGTP..S202208-202310
BLACK/GRAY,TRIM2#
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM20,21,25
sub58951-KK150
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58951-KK150
main58951-KK120-C0iGUN125,13#..RHD..THP..H;GUN126..RHD..THP..6F..H;GUN126..RHD..6FC..H..(ARL,GEN)202208-202307
BLACK,TRIM20,21,25
BLACK/GR RED,TRIM23
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK/GR RED,TRIM23
MAROON,TRIM3#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,MAROON/MAROON,TRIM3#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
ASIA COLD COUNTRY SPEC
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
ASIA COLD COUNTRY SPEC
main58995-KK030iGUN122..L..GEN;GUN122..(L,S)..(GCC,PH);TGN121..LHD..THP..5F..(L,S);GUN125,126,135,TGN120,126,136..THP..MTM..L..(GCC,GEN,IDN,LA)202208-202307
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
90119T0314
main90119-T0314
9015960431
main90159-60431
90159T0014
main90159-T0014
90167T0004
main90167-T0004
90167T0012
main90167-T0012
9046705171
main90467-05171
9046710161
main90467-10161
9046710201
main90467-10201
9046712080
main90467-12080
9167380616
main91673-80616
9167380816
main91673-80816
9352054014
main93520-54014
9354054012
main93540-54012
9356855014
main93568-55014
32 parts on this diagram · 3 diagrams in section
