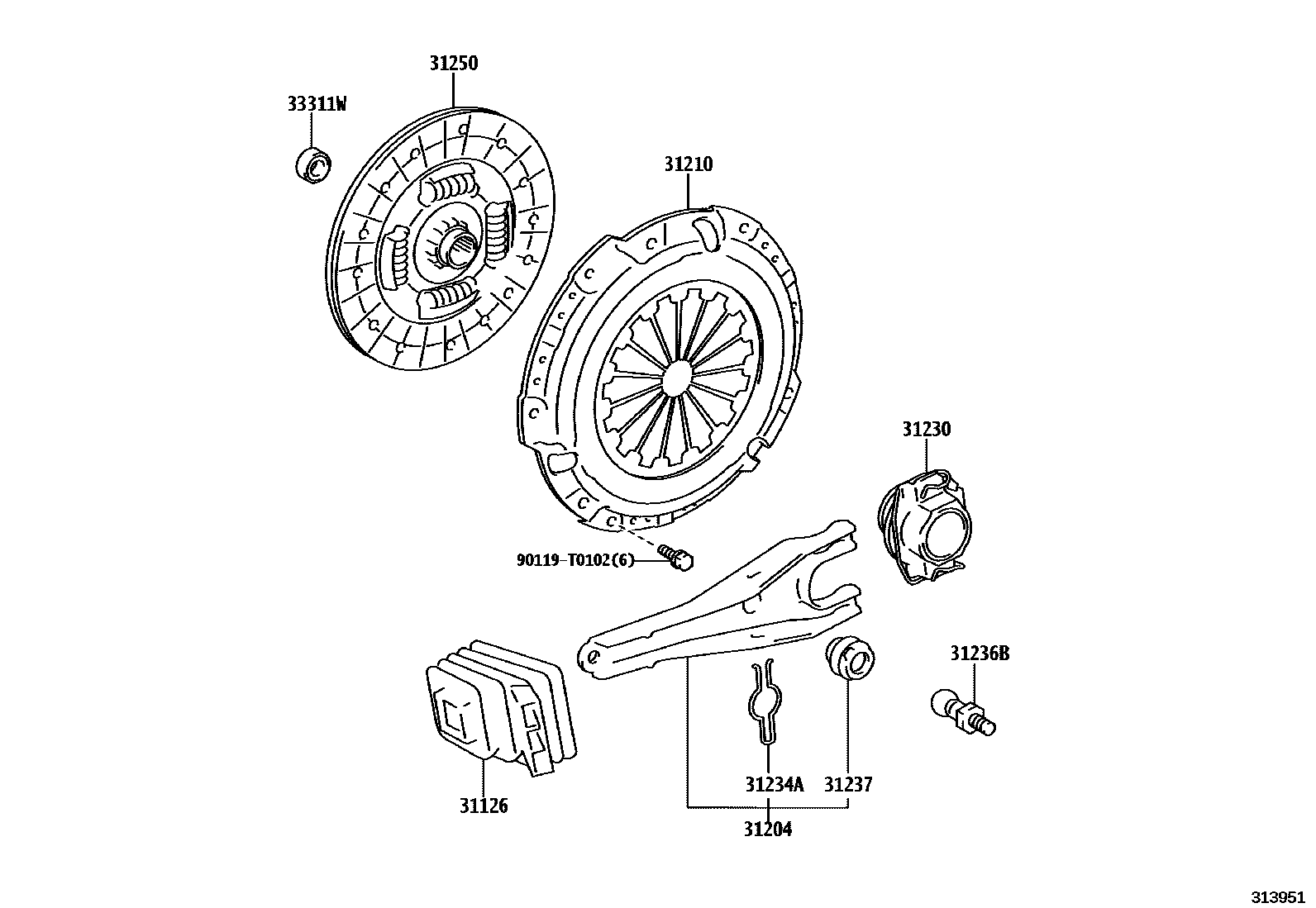

Toyota HILUX (DOUBLE CAB) — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE A:REFER 33-01
TYPE B:REFER 33-01
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
TYPE B:REFER 33-01
main31230-0K050iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..MTM202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
31234ASPRING, RELEASE FORK SUPPORT
TYPE B:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-0K010iGUN135..THP..LA;GUN136..LHD..6F; GUN136..6F..H;GUN121,122,125,126,135..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F; GUN136..6F..SA;GUN135..AGTP..LA;GUN135..6F..(BZAG,GEN,PH,SA,TH,VN);GUN121,122,125,126..(AGTP,GHAP,INDP,KENP,MAP,SAP,THP)..6F202408
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01; TYPE A:REFER 33-01; TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
TYPE B:REFER 33-01
31250DISC ASSY, CLUTCH
TYPE B:REFER ILLUST.
33311WBEARING (FOR INPUT SHAFT)
90119T0102
main90119-T0102
10 parts on this diagram · 6 diagrams in section
CLUTCH & RELEASE FORK for Toyota HILUX (DOUBLE CAB)
This section contains 14 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota HILUX (DOUBLE CAB). Key components include: CLUTCH SET, COVER & DISC, BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE.
