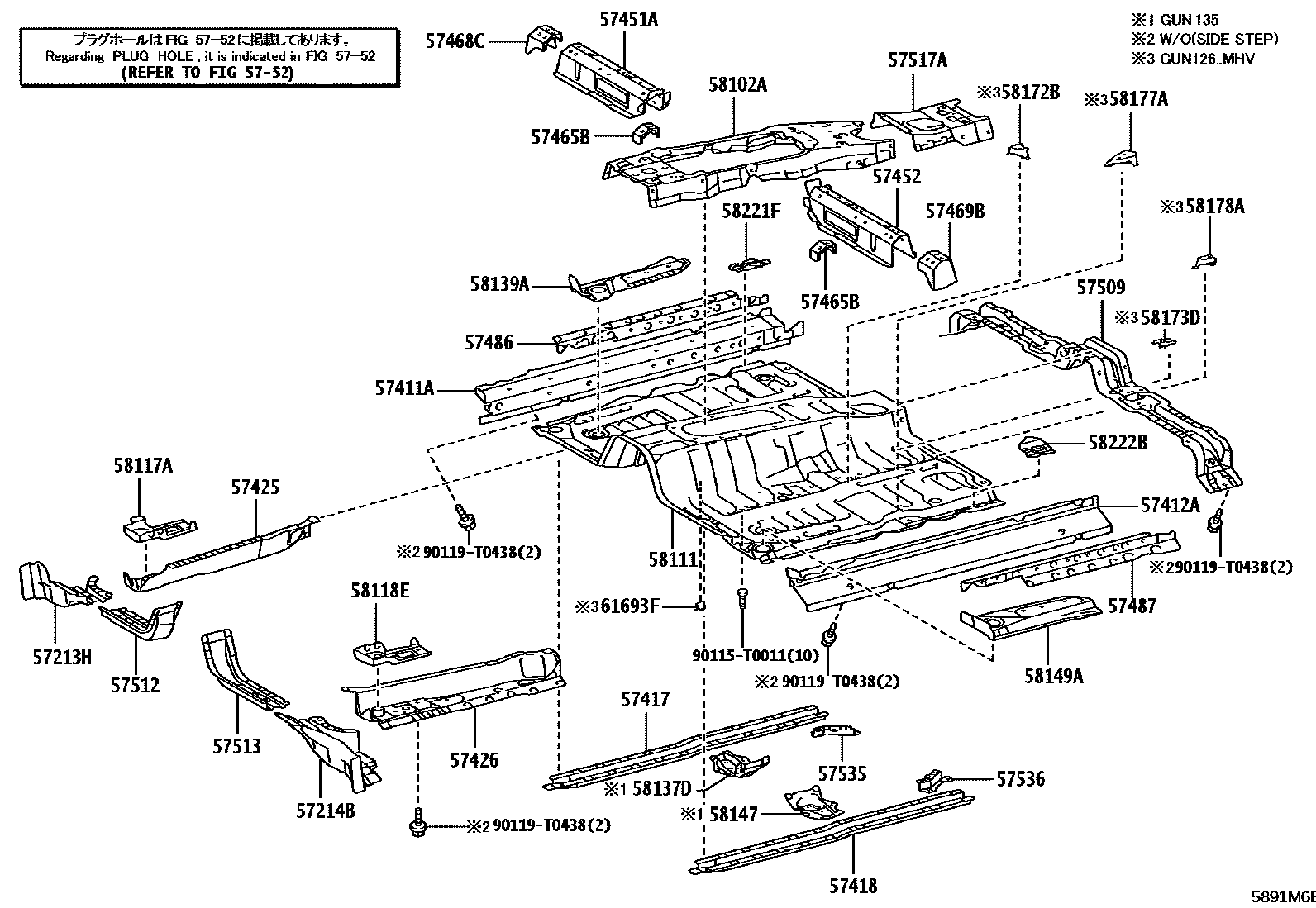

Toyota HILUX (DCB/SCB/XTR) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Parts diagram

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010i202408

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010i202408

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020i202408

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020i202408

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010i202408

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K011i202408

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010i202408-202501

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010i202408-202501

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010i202408

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010i202408

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2i202408

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010i202408

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010i202408

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010i202408

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010i202408

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010i202408

main57509-KK020i202408

main57509-KK050i202411

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030i202408

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010i202408

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010i202411

main57517-KK020i202411

main57517-KK030i202411

main57517-KK040i202408

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-KK010i202408

57536BRACE, FRONT FLOOR, LH

main57536-KK010i202408

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010i202411

main58102-KK020i202411

main58102-KK030i202411

main58102-KK040i202408

58111PAN, FRONT FLOOR

main58111-KK120i202411

main58111-KK140i202411

main58111-KK150i202411

main58111-KK160i202411

main58111-KK170supersedes 58111-KK130i202408

ISRAEL SPEC (EURO 6 REGULATION); TURKEY SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010i202408

58118EBRACKET, JACK SET

main58118-KK010i202408

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010i202408

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010i202408

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010i202408

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010i202408

58172BBRACKET, COMPUTER MOUNTING, NO.3

main58172-KK010i202411

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-KK010i202411

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-KK010i202411

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-KK010i202411

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010i202411

main58221-KK020i202408

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010i202411

main58222-KK020i202408

61693FBRACKET, FRONT FLOOR

main53257-35030i202411

90115T0011

main90115-T0011

90119T0438

main90119-T0438

39 parts on this diagram · 6 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX (DCB/SCB/XTR)

This section contains 59 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX (DCB/SCB/XTR). Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH.
