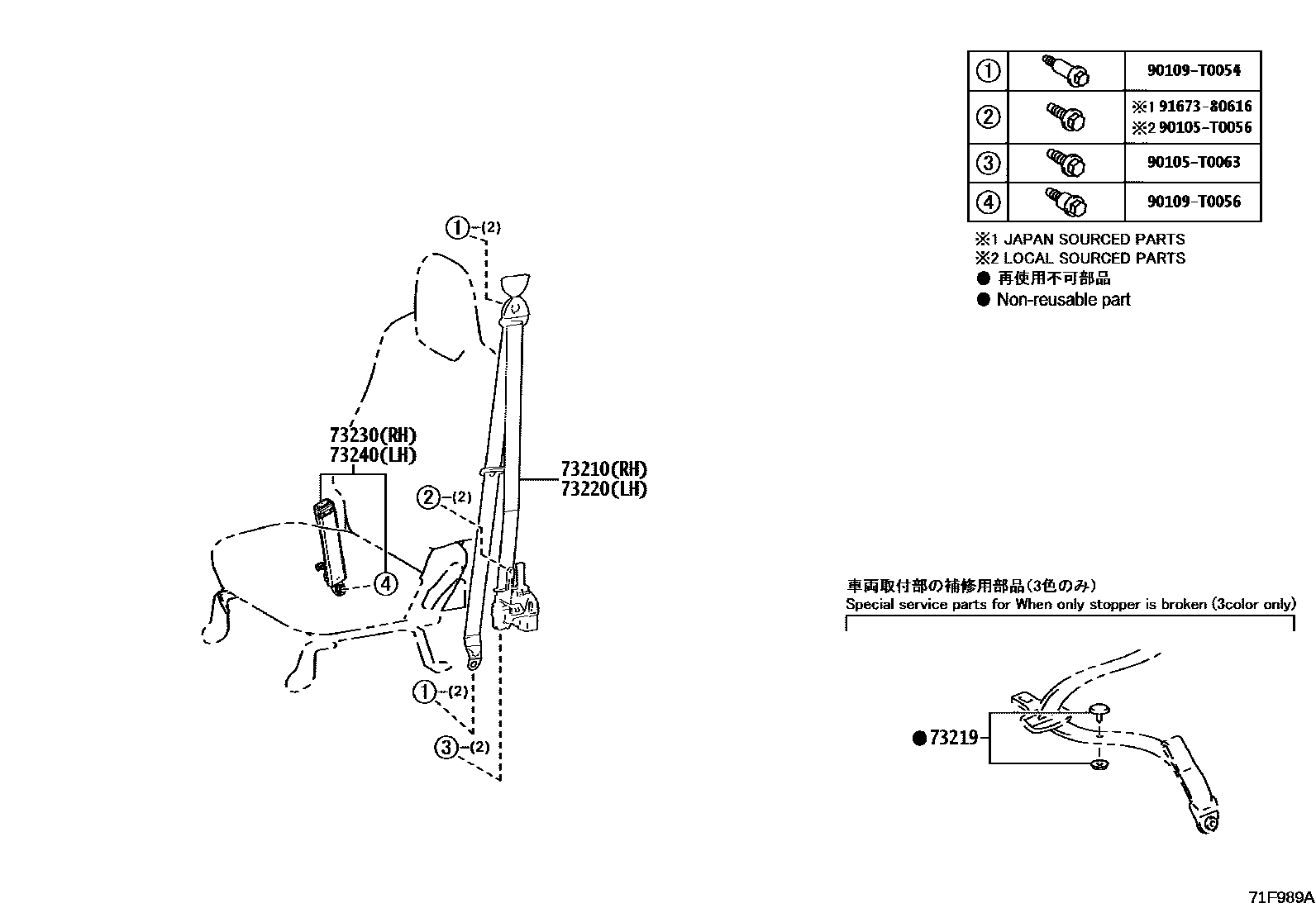

Toyota HILUX CHAMP — SEAT BELT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0KC20-C0i202312-202407

BLACK,TRIM2#

main73210-0KC30-C0i202312-202407

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010i202409

BLACK

main73219-33020i202312-202407

GRAY

main73219-33030i202312-202407

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0K830-C0i202312

BLACK,TRIM2#

main73220-0K840-C0i202312

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0KJ40-C0i202409

BLACK,TRIM2#

main73230-0KJ70-C0i202409

BLACK,TRIM2#

main73230-0KJ80-C0i202312-202407

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0KJ40-C0i202312-202407

BLACK,TRIM2#

main73230-0KJ50-C0i202409

BLACK,TRIM2#

main73230-0KJ70-C0i202312

BLACK,TRIM2#

main73230-0KJ80-C0i202409

BLACK,TRIM2#

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90109T0054

main90109-T0054

90109T0056

main90109-T0056

9167380616

main91673-80616

10 parts on this diagram · 4 diagrams in section

SEAT BELT for Toyota HILUX CHAMP

This section contains 10 genuine Toyota parts for the SEAT BELT system of the Toyota HILUX CHAMP. Key components include: BELT ASSY, FRONT SEAT OUTER, RH, STOPPER, TONGUE PLATE, BELT ASSY, FRONT SEAT OUTER, LH, BELT ASSY, FRONT SEAT INNER, RH, BELT ASSY, FRONT SEAT INNER, LH.
