Toyota HILUX CHAMP — PARTIAL ENGINE ASSEMBLY

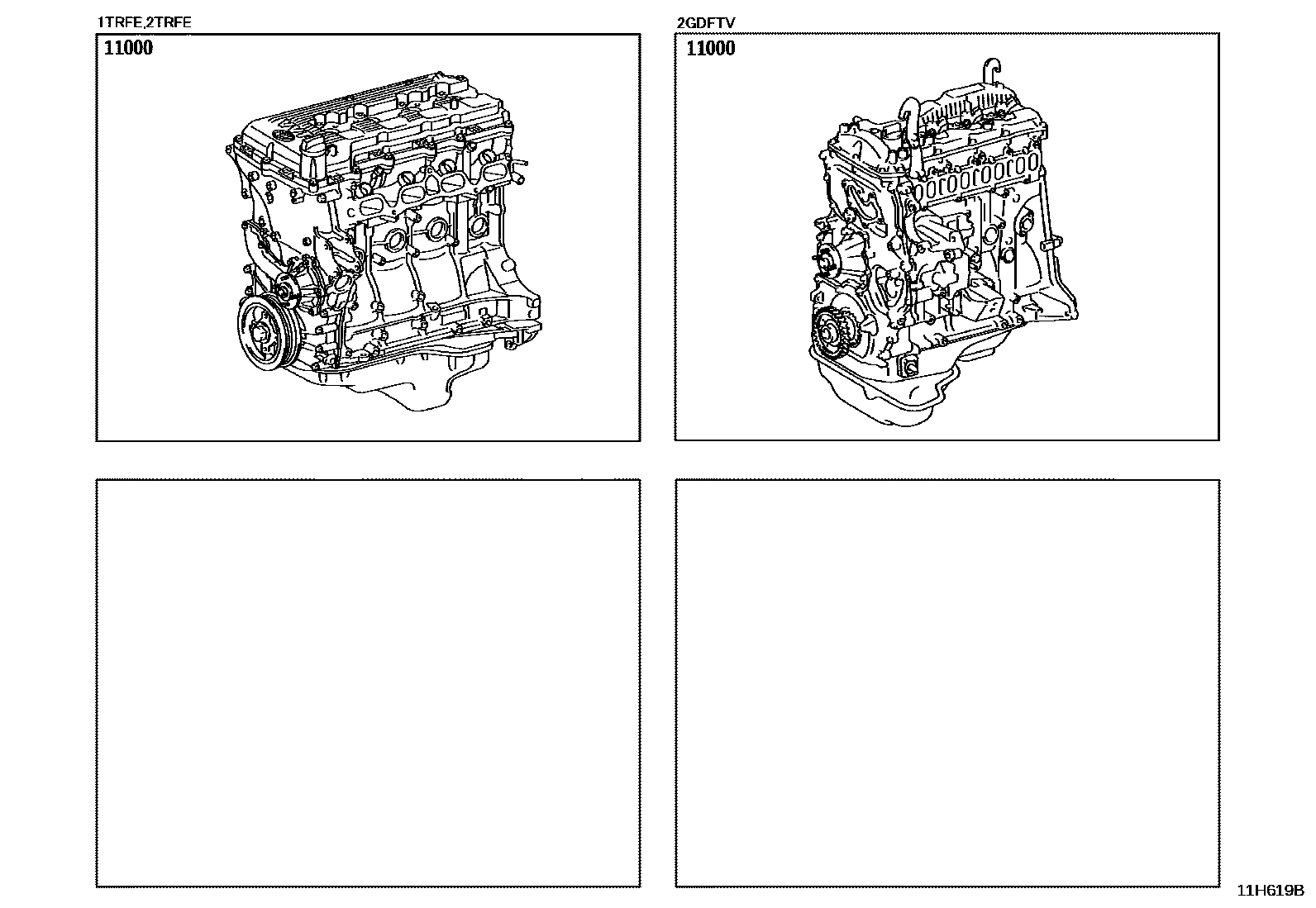

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-08010i202312-202407

main19000-08020i202409

main19000-08030i202312-202407

main19000-08040i202409

main19000-0C360i202409

main19000-0C490i202312

main19000-0C500i202312

main19000-0E740i202312

main19000-0EB10i202312

1 parts on this diagram · 1 diagram in section
