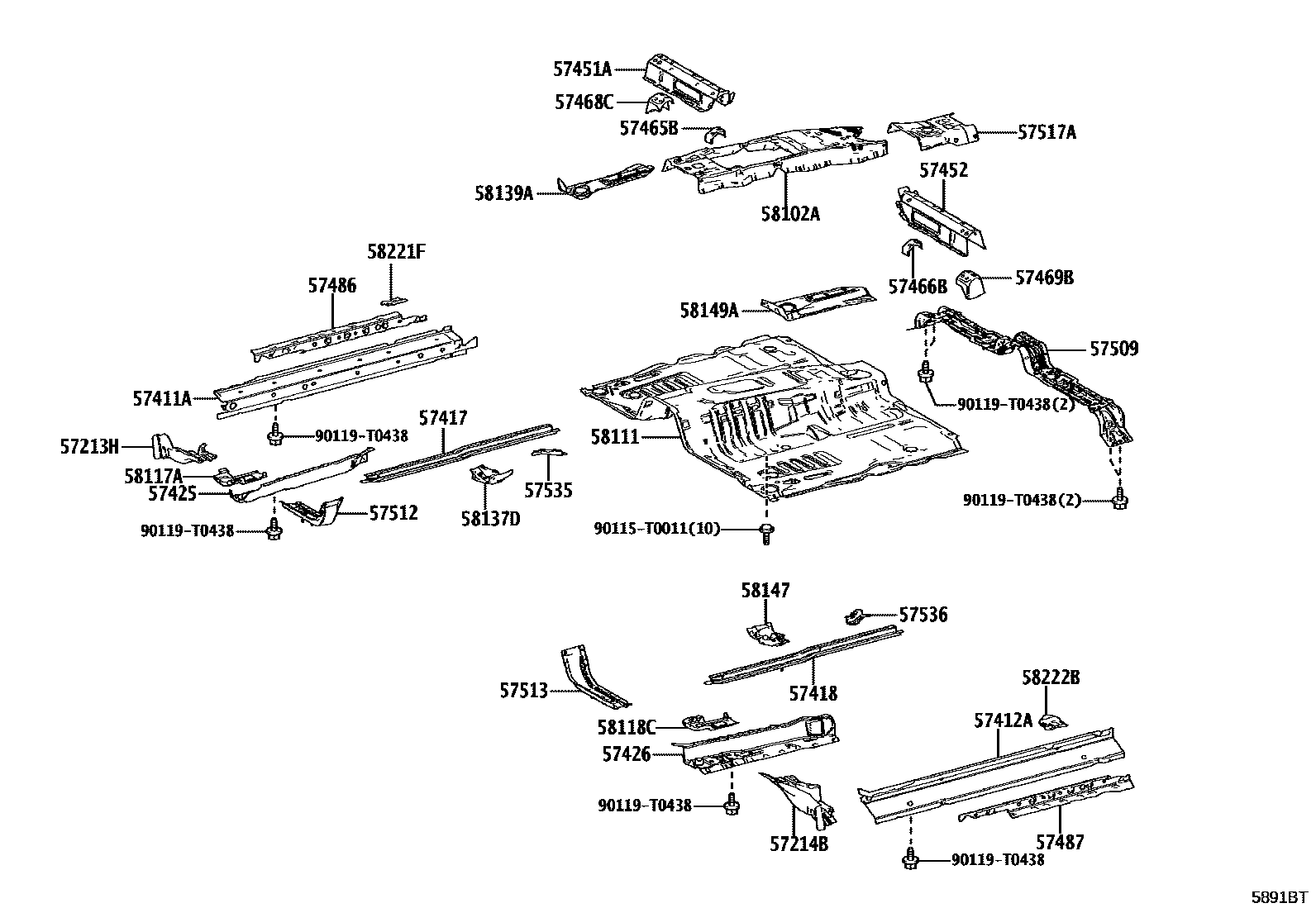

Toyota HILUX CHAMP — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57465BBRACKET, FRONT SEAT, INNER
57466BBRACKET, FRONT SEAT, INSIDE LH
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58147BRACKET, FRONT FLOOR HOUSING, FRONT LH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
58222BREINFORCEMENT, FLOOR PANEL, FRONT LH
90115T0011
main90115-T0011
90119T0438
main90119-T0438
34 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX CHAMP
This section contains 39 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX CHAMP. Key components include: BRACKET, BODY MOUNTING, NO.2 RH, BRACKET, BODY MOUNTING, NO.2 LH, MEMBER, FLOOR SIDE, INNER RH, MEMBER, FLOOR SIDE, INNER LH, REINFORCEMENT, FRONT FLOOR UNDER, RH.
