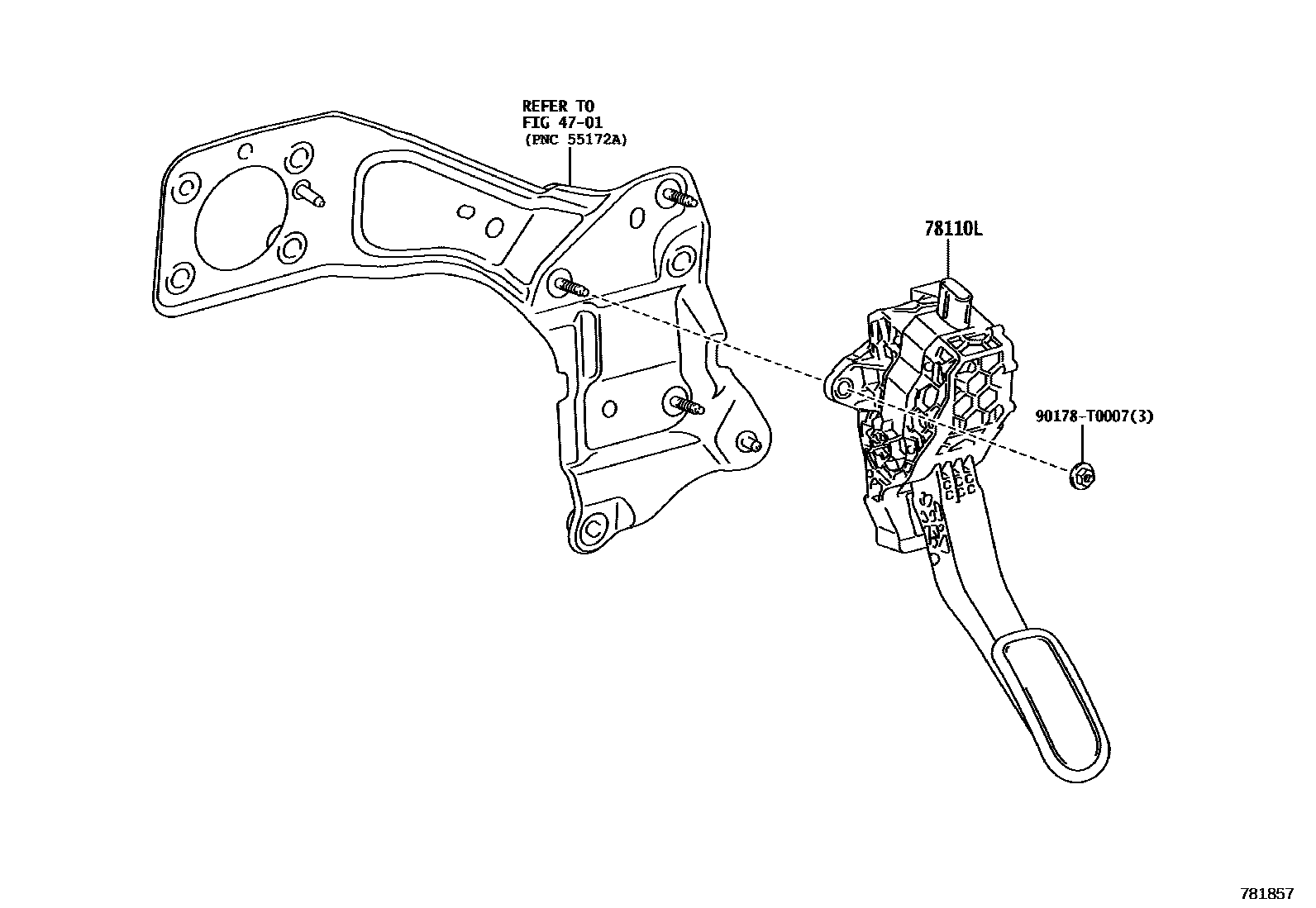

Toyota HILUX CHAMP — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110LSENSOR ASSY, ACCELERATOR PEDAL

main78110-KK011i202312

main78110-KK021i202312-202407

90178T0007

main90178-T0007

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota HILUX CHAMP

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX CHAMP. Key components include: BRAKE PEDAL & BRACKET, SENSOR ASSY, ACCELERATOR PEDAL.
