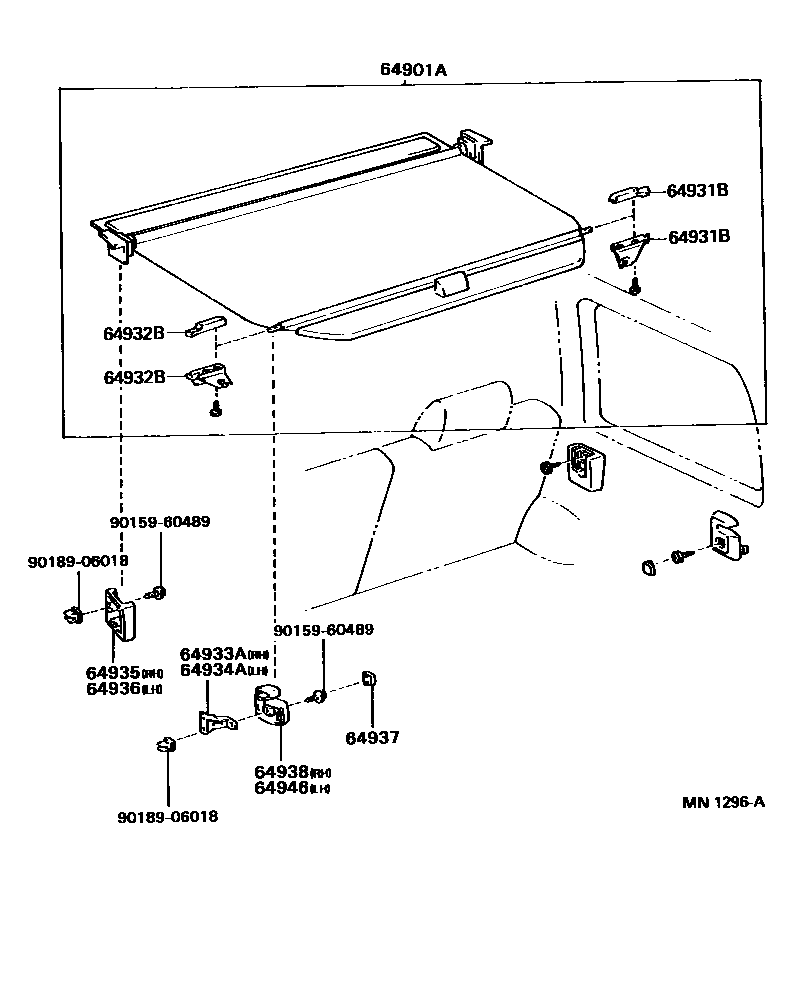

Toyota HILUX 2WD — PACKAGE TRAY PANEL

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-35020-B1i199108-199308

GRAY,TRIM1#

main64901-35020-J1i199108-199308

BLUE,TRIM8#

64931BHANGER, TONNEAU COVER, RH

main64931-35010-B0i199108-199308

GRAY,TRIM1#,UPPER

main64931-35010-J0i199108-199308

BLUE,TRIM8#,UPPER

main64951-35010-B0i199108-199308

GRAY,TRIM1#,LOWER

main64951-35010-J0i199108-199308

BLUE,TRIM8#,LOWER

64932BHANGER, TONNEAU COVER, LH

main64932-35010-B0i199108-199308

GRAY,TRIM1#,UPPER

main64932-35010-J0i199108-199308

BLUE,TRIM8#,UPPER

main64952-35010-B0i199108-199308

GRAY,TRIM1#,LOWER

main64952-35010-J0i199108-199308

BLUE,TRIM8#,LOWER

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-35020i199108-199308

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-35020i199108-199308

64935HOLDER, TONNEAU COVER, RH

main64935-35010-B0i199108-199308

GRAY,TRIM1#

main64935-35010-J0i199108-199308

BLUE,TRIM8#

64936HOLDER, TONNEAU COVER, LH

main64936-35010-B0i199108-199308

GRAY,TRIM1#

main64936-35010-J0i199108-199308

BLUE,TRIM8#

64937CAP, TONNEAU COVER HOLDER, NO.1

main64937-35020-B0×2i199108-199308

GRAY,TRIM1#

main64937-35020-J0×2i199108-199308

BLUE,TRIM8#

64938HOOK, TONNEAU COVER, A

main64938-35010-B0i199108-199308

GRAY,TRIM1#

main64938-35010-J0i199108-199308

BLUE,TRIM8#

64946HOOK, TONNEAU COVER, B

main64946-35010-B0i199108-199308

GRAY,TRIM1#

main64946-35010-J0i199108-199308

BLUE,TRIM8#

9015960489

main90159-60489

9018906018

main90189-06018

12 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota HILUX 2WD

This section contains 12 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HILUX 2WD. Key components include: RETRACTOR SUB-ASSY, TONNEAU COVER, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, BRACKET, TONNEAU COVER HOLDER, RH, BRACKET, TONNEAU COVER HOLDER, LH.
