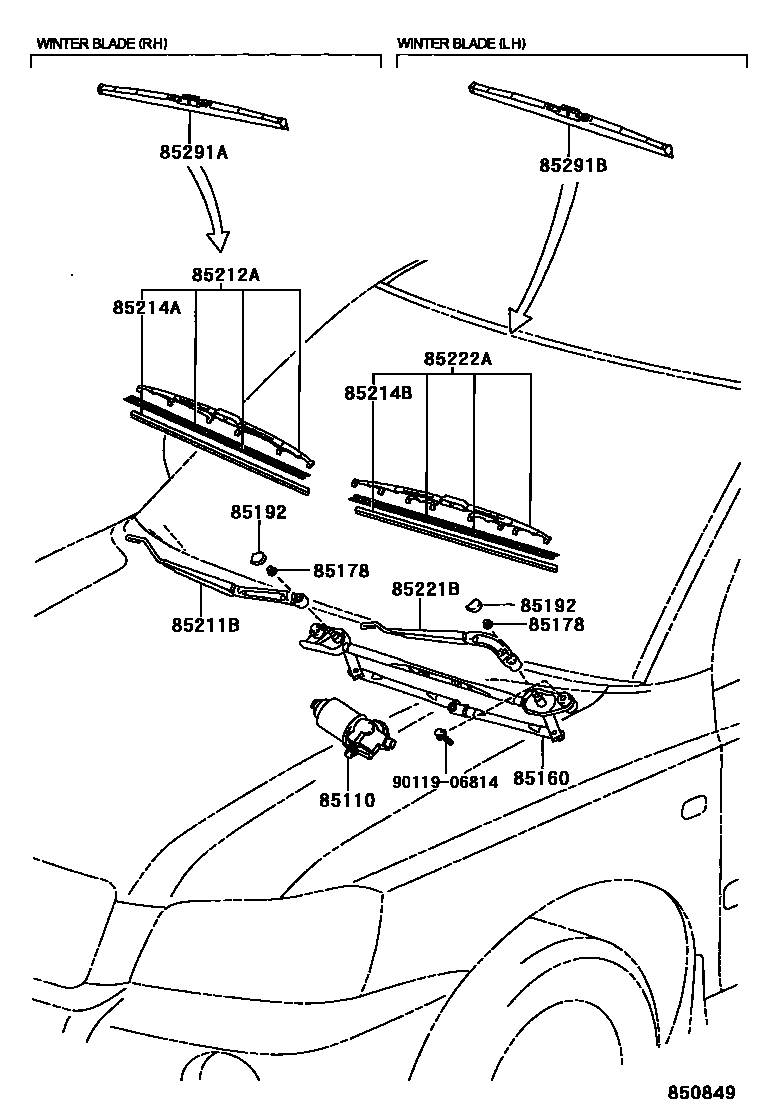

Toyota HIGHLANDER — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48070i200011-200308

85160LINK ASSY, WINDSHIELD WIPER

main85150-48060i200011-200308

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223i200011-200705

85192COVER, WINDSHIELD WIPER ARM

main85292-13010i200011-200705

85211BARM, FRONT WIPER, RH

main85211-48050i200011-200705

85212ABLADE, FR WIPER, RH

main85212-48040i200011-200407

main85212-53050i200408-200605

main85212-53051i200606-200705

85214ARUBBER, WIPER, RH

main85214-48020i200011-200408

main85214-53040i200408-200605

main85214-53041i200606-200705

85214BRUBBER, WIPER, LH

main85214-48010i200011-200705

85221BARM, FRONT WIPER, LH

main85221-48050i200011-200705

85222ABLADE, FR WIPER, LH

main85222-48040i200011-200705

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-53030i200011-200308

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-53010i200011-200308

9011906814

main90119-06814

13 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota HIGHLANDER

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota HIGHLANDER. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
