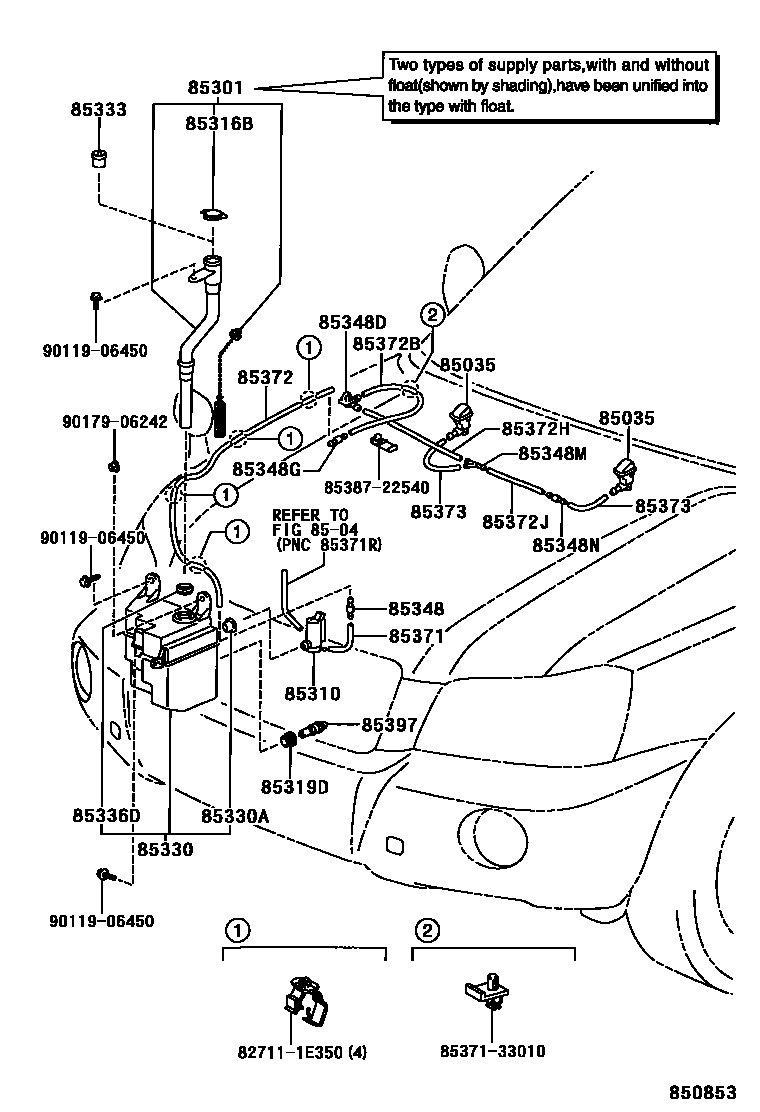

Toyota HIGHLANDER — WINDSHIELD WASHER
8504
85301INLET SUB-ASSY, WASHER
REFER TO THE COMMENT IN THE ILLUSTRATION
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85316BCAP, WASHER, INLET
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
sub85376-10250
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=150
L=1450(*H,L=290)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1100(*H,L=1000)
L=1450
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=630)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=510)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=390)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=210)
85397SWITCH ASSY,LEVEL WARNING
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
8538722540CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22540
9011906450
main90119-06450
9017906242
main90179-06242
27 parts on this diagram · 2 diagrams in section
