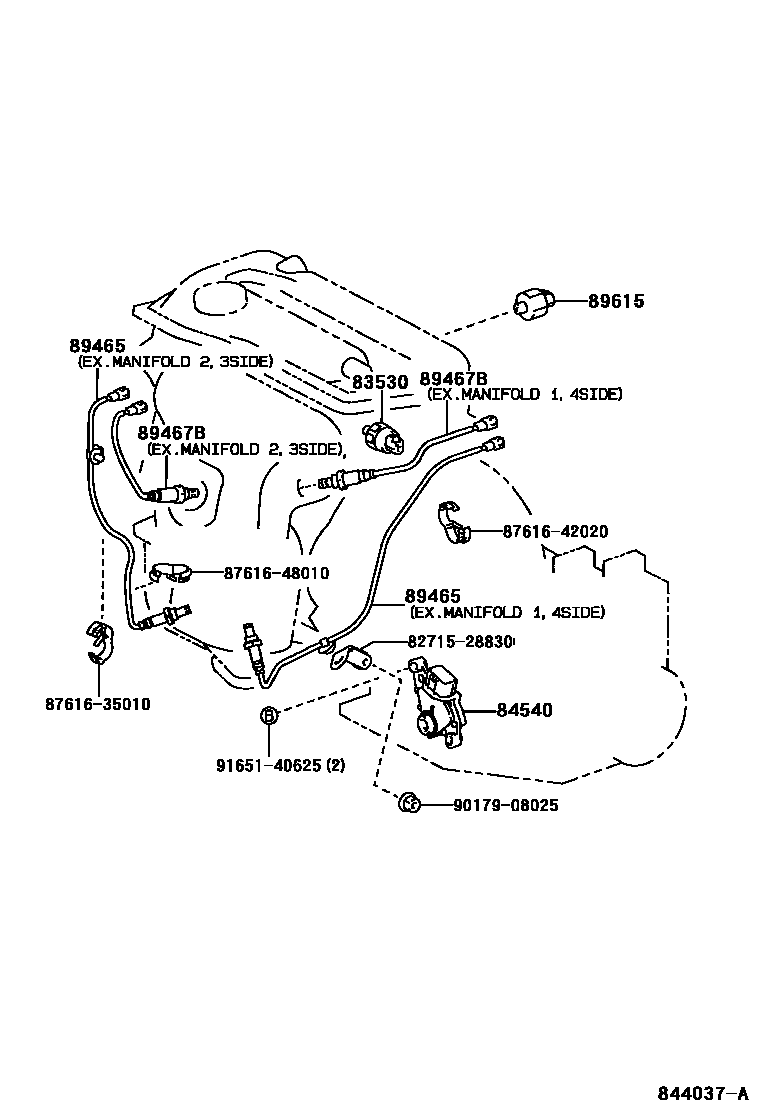

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iACU2#,MCU2#200205-200308

(L),DENSO

main83530-28020iACU2#,MCU2#200308

(J),DENSO

main83530-60020iACU2#,MCU2#200011-200308

(J),YAZAKI

main83530-AA011iACU2#,MCU2#200301-200308

(L),FASCO

84540SWITCH ASSY, NEUTRAL START

main84540-0E010iMCU2#200308-200705

(L)

main84540-12230iACU2#,MCU2#200011-200202

main84540-32110iACU2#,MCU2#200202-200308

main84540-48010iACU2#200308-200705

(J)

89465SENSOR, OXYGEN

main89465-48060iACU2#200011-200308

EX. MANIFOLD 2,3SIDE

main89465-48070iACU2#200011-200308

EX. MANIFOLD 1,4SIDE

main89465-49075iMCU2#200011-200308

89467BSENSOR, AIR FUEL RATIO

main89467-48011×2iMCU2#200011-200308

main89467-48020iACU2#200011-200308

EX. MANIFOLD 1,4SIDE

main89467-48030iACU2#200011-200308

EX. MANIFOLD 2,3SIDE

main89467-48050iMCU2#200308

LH

main89467-48060iMCU2#200308

RH

main89467-48070iACU2#200308

89615SENSOR, KNOCK CONTROL

main89615-12090×2iMCU2#200011-200308

main89615-20090×2iACU2#200308

main89615-30080iACU2#200011-200104

MATSUSHITA

main89615-32030iACU2#200011-200104

DENSO

main89615-44010iACU2#200104-200308

8271528830BRACKET,WIRING HARNESS CLAMP

main82715-28830

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

8761648010CLAMP, COOLING UNIT CASE

main87616-48010

9017908025

main90179-08025

9165140625

main91651-40625

11 parts on this diagram · 13 diagrams in section
