Toyota HIGHLANDER — PARTIAL ENGINE ASSEMBLY

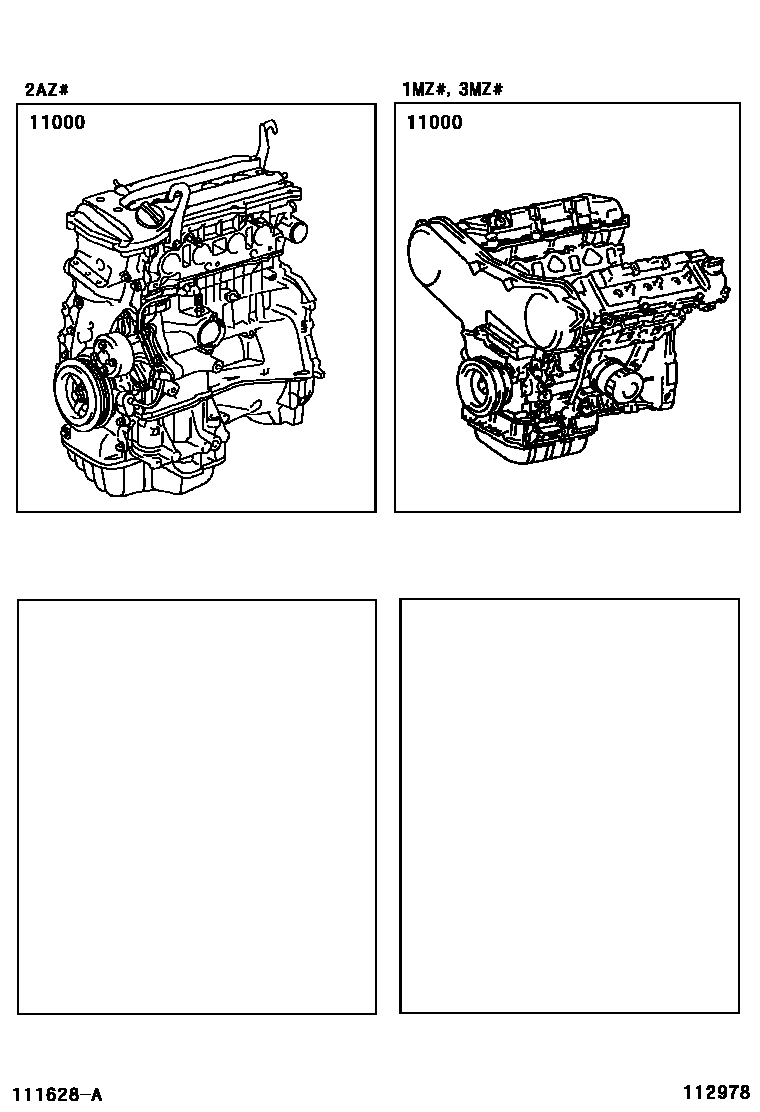

11000ENGINE ASSY, PARTIAL

main19000-0A270i1MZFE..MCU20200011-200308

(L)

main19000-20310i1MZFE..MCU20200011-200308

(J)

main19000-20330i1MZFE..MCU25200011-200308

main19000-20440i3MZFE..MCU23200308

main19000-20450i3MZFE..MCU28200308

main19000-28200i2AZFE..ACU2#200011-200308

sub19000-28201

main19000-28461i2AZFE..ACU2#200308-200310

TOWING PACKAGE

main19000-28462i2AZFE..ACU2#200308-200310

main19000-28463i2AZFE..ACU2#200608

1 parts on this diagram · 1 diagram in section
