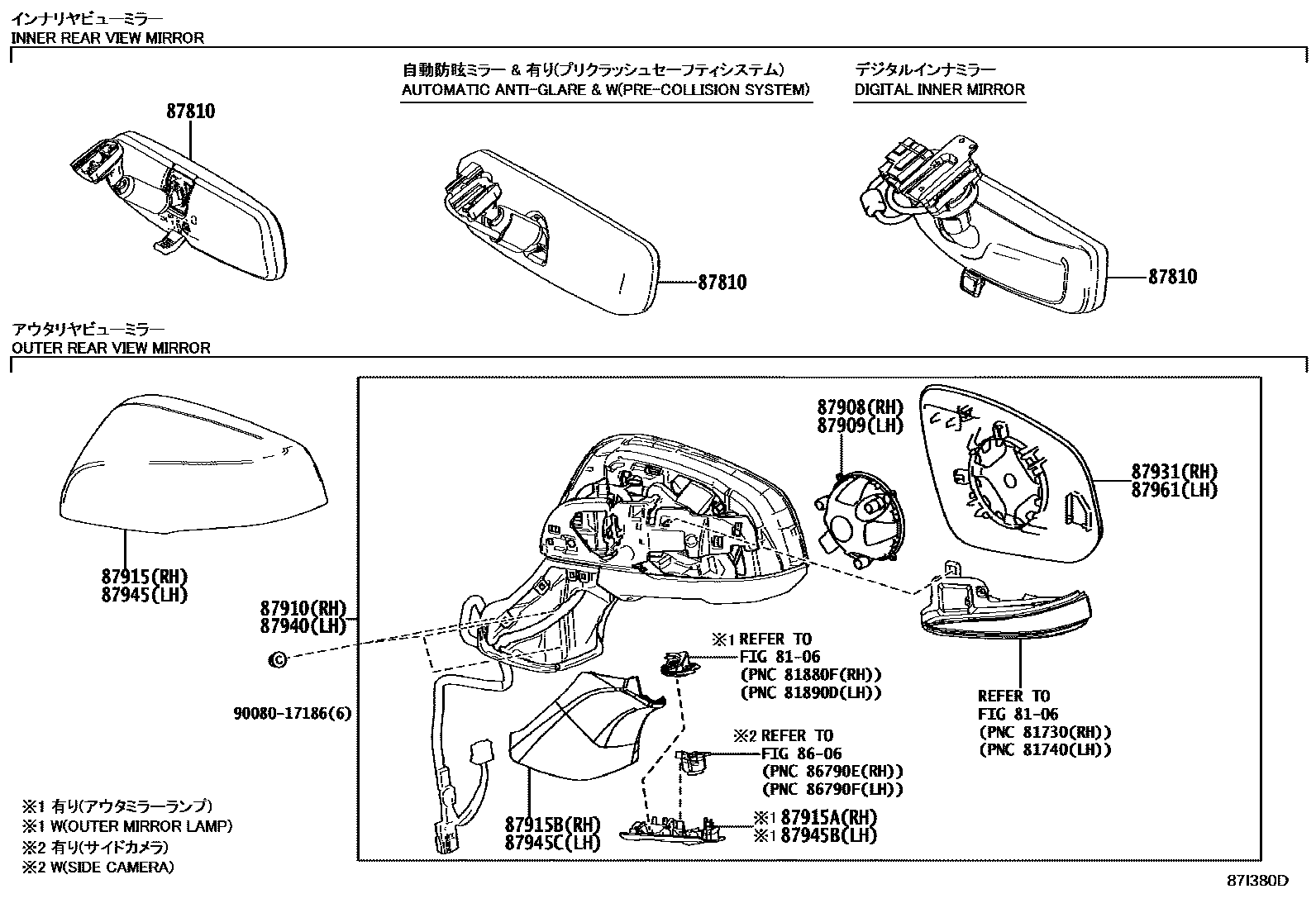

Toyota HIGHLANDER — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WQ40i201912-202311

main87810-0WS10i201912-202410

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87925-0E340i201912-202410

main87925-0E380i201912-202210

main87925-0E380i202210-202311

HYBRID SPECIAL EDITION

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87985-0E340i201912-202410

main87985-0E360i202210-202311

HYBRID SPECIAL EDITION

main87985-0E360i201912-202210

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0E370i201912-202105

NO PAINT REQ.

main87910-0E371i202106-202410

NO PAINT REQ.

main87910-0E500i201912-202105

NO PAINT REQ.

main87910-0E501i202106-202210

NO PAINT REQ.

main87910-0E770i202210-202311

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-0E070-A0i201912-202110

WHITE PEARL CS.,070

main87915-0E070-A1i202110-202311

PLATINUM WHITE PEARL MC.,089

main87915-0E070-B0i201912-202311

GRAY ME.,1G3

main87915-0E070-B1i201912-202311

SILVER ME.,1J9

main87915-0E070-B2i201912-202410

PRECIOUS GALENA,1K5

main87915-0E070-B6i202110-202311

CEMENT GRAY ME.,1H5

main87915-0E070-B9i202410

PRECIOUS METAL,1L5

main87915-0E070-C0i202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main87915-0E070-C0i201912-202311

ATTITUDE BLACK MC.,218

main87915-0E070-C0i201912-202210

ATTITUDE BLACK MC.,070 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87915-0E070-C0i202002-202210

ATTITUDE BLACK MC.,070 ,1G3 ,1H5 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87915-0E070-C0i202009-202210

ATTITUDE BLACK MC.,070 ,089 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87915-0E070-C0i202210-202410

ATTITUDE BLACK MC.,089 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,6X5 ,8X8

main87915-0E070-C0i202311

ATTITUDE BLACK MC.,089 ,1G3 ,1H5 ,1J9 ,1K5 ,218 ,3T3 ,6X5 ,8X8

main87915-0E070-D0i201912-202311

RED MC.,3T3

main87915-0E070-E0i201912-202210

BLACKISH BROWN MC.,4X9

main87915-0E070-G0i202210-202311

GREEN M.M.,6X5

main87915-0E070-J0i201912-202311

DK. BLUE MC.,8X8

87915ACOVER, OUTER MIRROR, RH

main8791B-0E500i201912-202210

main8791B-0E740i202210-202311

NO PAINT REQ.

87915BCOVER, OUTER MIRROR, LOWER RH

main8791B-0E370i201912-202410

87931OUTER MIRROR, RH

main87931-0E370i201912-202106

main87931-0E371i202106-202410

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0E350i201912-202105

NO PAINT REQ.

main87940-0E351i202106-202410

NO PAINT REQ.

main87940-0E480i201912-202105

NO PAINT REQ.

main87940-0E481i202106-202210

NO PAINT REQ.

main87940-0E740i202210-202311

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-0E070-A0i201912-202110

WHITE PEARL CS.,070

main87945-0E070-A1i202110-202311

PLATINUM WHITE PEARL MC.,089

main87945-0E070-B0i201912-202311

GRAY ME.,1G3

main87945-0E070-B1i201912-202311

SILVER ME.,1J9

main87945-0E070-B2i201912-202410

PRECIOUS GALENA,1K5

main87945-0E070-B6i202110-202311

CEMENT GRAY ME.,1H5

main87945-0E070-B9i202410

PRECIOUS METAL,1L5

main87945-0E070-C0i202311

ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3

main87945-0E070-C0i201912-202311

ATTITUDE BLACK MC.,218

main87945-0E070-C0i201912-202210

ATTITUDE BLACK MC.,070 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87945-0E070-C0i202002-202210

ATTITUDE BLACK MC.,070 ,1G3 ,1H5 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87945-0E070-C0i202009-202210

ATTITUDE BLACK MC.,070 ,089 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,4X9 ,8X8

main87945-0E070-C0i202210-202410

ATTITUDE BLACK MC.,089 ,1G3 ,1J9 ,1K5 ,218 ,3T3 ,6X5 ,8X8

main87945-0E070-C0i202311

ATTITUDE BLACK MC.,089 ,1G3 ,1H5 ,1J9 ,1K5 ,218 ,3T3 ,6X5 ,8X8

main87945-0E070-D0i201912-202311

RED MC.,3T3

main87945-0E070-E0i201912-202210

BLACKISH BROWN MC.,4X9

main87945-0E070-G0i202210-202311

GREEN M.M.,6X5

main87945-0E070-J0i201912-202311

DK. BLUE MC.,8X8

87945BCOVER, OUTER MIRROR, LH

main8794B-0E480i201912-202210

main8794B-0E741i202210-202311

NO PAINT REQ.

87945CCOVER, OUTER MIRROR, LOWER LH

main8794B-0E350i201912-202410

87961MIRROR OUTER, LH

main87961-0E350i201912-202106

main87961-0E351i202106-202410

9008017186

main90080-17186

16 parts on this diagram · 1 diagram in section

MIRROR for Toyota HIGHLANDER

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota HIGHLANDER. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
