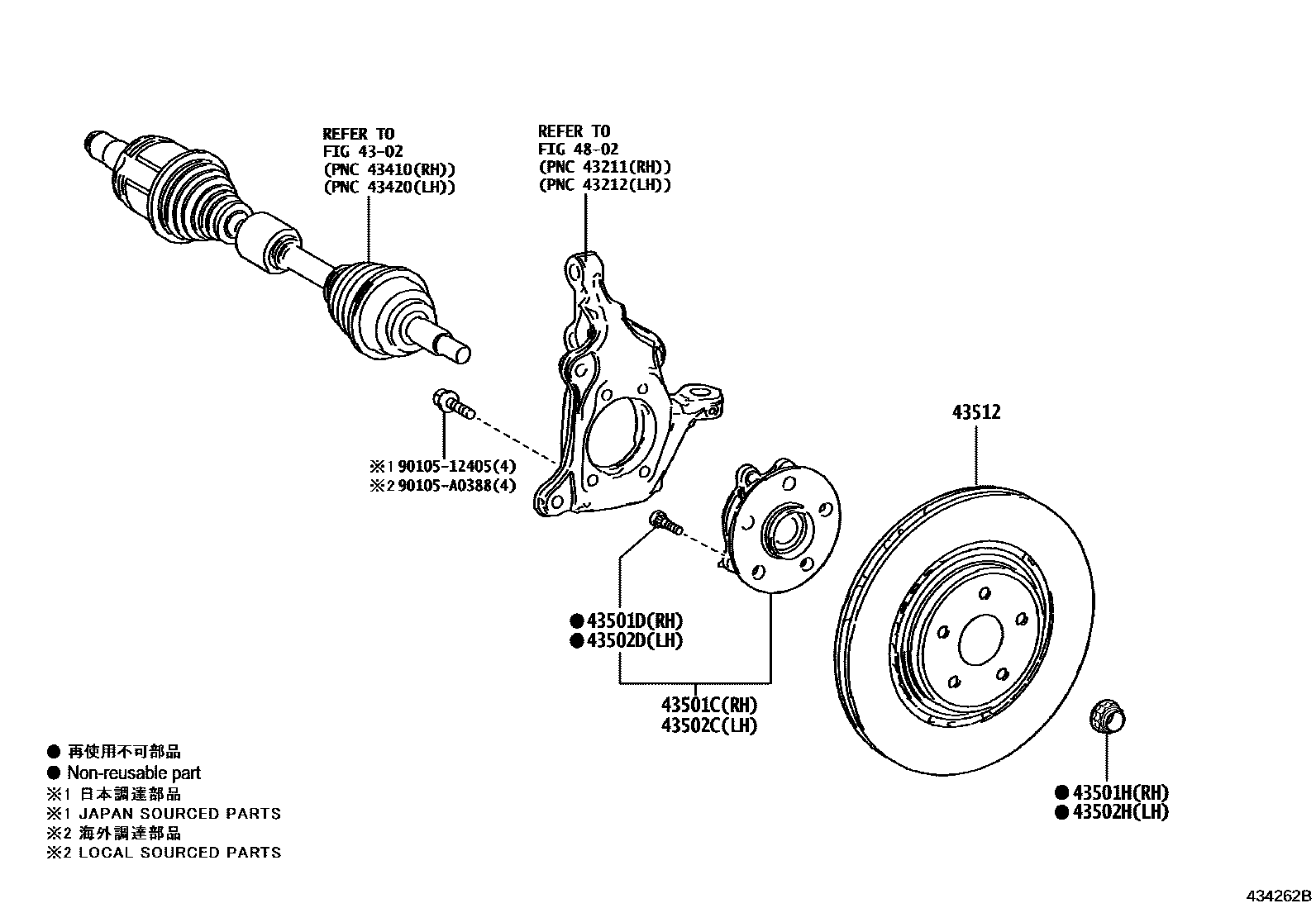

Toyota HIGHLANDER — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0E020i202210-202311

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201912-202210

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238i201912-202210

(L)

main90177-22001i202311

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0E020i202311-202410

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202210-202311

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238i202311-202410

(L)

main90177-22001i201912-202210

(J)

43512DISC, FRONT

main43512-0E060×2i201912-202210

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105A0388

main90105-A0388

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota HIGHLANDER

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota HIGHLANDER. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
