Toyota HIGHLANDER — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48020i200011-200308

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48010×2i200011-200308

55701PANEL SUB-ASSY, COWL

main55700-48040i200011-200308

55715ABRACE, COWL TOP TO APRON, RH

main55715-48030i200011-200308

55716ABRACE, COWL TOP TO APRON, LH

main55716-48030i200011-200308

55717APANEL, COWL TOP SIDE, INNER RH

main55717-48900i200011-200308

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-48900i200011-200308

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010×2i200011-200308

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-48050i200011-200308

main55781-48070i200308

CANADA SPEC

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48030i200011-200308

56111GLASS, WINDSHIELD

main56111-48130i200011-200308

*TL,T=4.76,GREEN

main56111-48140i200011-200308

*EHTL,T=4.76,GREEN

main56111-48290i200308

*TL,T=4.76,GREEN

main56111-48300i200408

*EHTL,T=4.76,GREEN,W(WIPER DEICER)

main56111-48310i200308

*TL,T=4.76,GREEN,W(AUTO DIMMER INNER MIRROR)

main56111-48320i200308

*EHTL,T=4.76,GREEN,W(AUTO DIMMER INNER MIRROR & WIPER DEICER)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200308

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200011-200308

56117ADAM, WINDOW GLASS ADHESIVE

main56117-48020i200011-200307

L=3372

main56117-48040i200307-200308

L=3372

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-48020i200011-200307

*D,L=595

main56118-48040i200307-200308

L=595

9010506260

main90105-06260

9026903040

main90269-03040

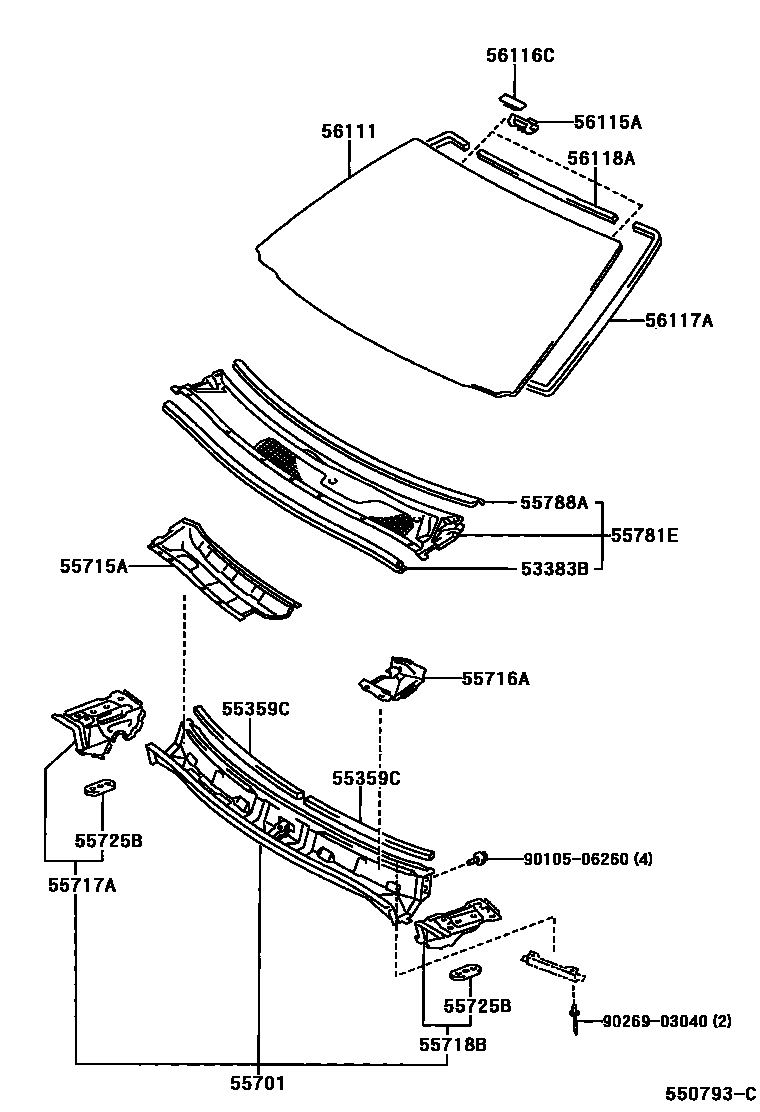

17 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota HIGHLANDER

This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota HIGHLANDER. Key components include: SEAL, HOOD TO COWL TOP, COSHION, INSTRUMENT PANEL, NO.5, PANEL SUB-ASSY, COWL, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
