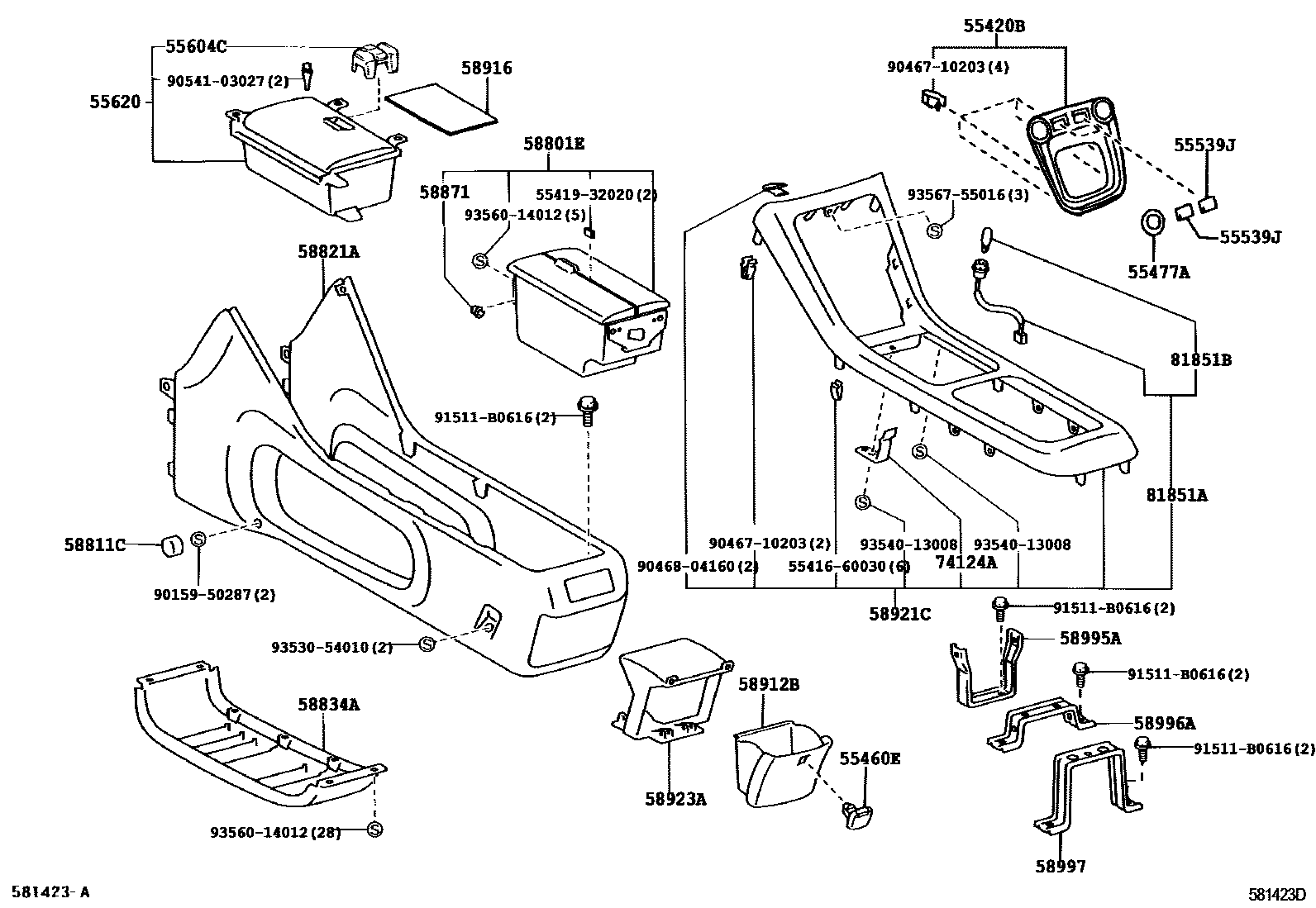

Toyota HIGHLANDER — CONSOLE BOX & BRACKET
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
WOOD GRAIN & W(CONSOLE BOX),BROWN,TRIM0#,1#
HAMMER TONE LUSTROUS,TRIM0#,1#
WOOD GRAIN,BROWN,TRIM0#,1#
W(CONSOLE BOX),HAMMER TONE LUSTROUS,TRIM0#,1#
SILVER,TRIM0#,1#
BROWN MOKUME,TRIM0#,1#
55460ELOCK ASSY, INSTRUMENT PANEL BOX
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
55477ABEZEL, CIGARETTE LIGHTER HOLE
55539JCOVER, SPARE SWITCH HOLE
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
WOOD GRAIN,BROWN,TRIM0#,1#
BROWN MOKUME,TRIM0#,13
HAMMER TONE LUSTROUS,TRIM0#,1#
SILVER,TRIM0#,1#
58801EBOX SUB-ASSY, CONSOLE, UPPER
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
58811CCAP(FOR CONSOLE)
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
58821APANEL, CONSOLE
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
58834ACOVER, CONSOLE, LOWER
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
IVORY,TRIM0#
NEW GRAY,TRIM1#
58871CUSHION, CONSOLE BOX
58912BBOX, REAR CONSOLE, LOWER
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
W(VIDEO TERMINAL),IVORY,TRIM0#
W(VIDEO TERMINAL),GRAY,TRIM1#
58916MAT, BOX BOTTOM
58921CPLATE, BOX, UPPER NO.1
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
58923APANEL, CONSOLE REAR END
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
74124ASPRING, ASH RECEPTACLE
81851BBULB (FOR INDICATOR LAMP)
5541660030STOPPER,LIGHT CONTROL SWITCH
main55416-60030
5541932020PLATE, SAFETY PAD
main55419-32020
9015950287
main90159-50287
9046710203
main90467-10203
9046804160
main90468-04160
9054103027
main90541-03027
91511B0616
main91511-B0616
9353054010
main93530-54010
9354013008
main93540-13008
9356014012
main93560-14012
9356755016
main93567-55016
32 parts on this diagram · 2 diagrams in section
