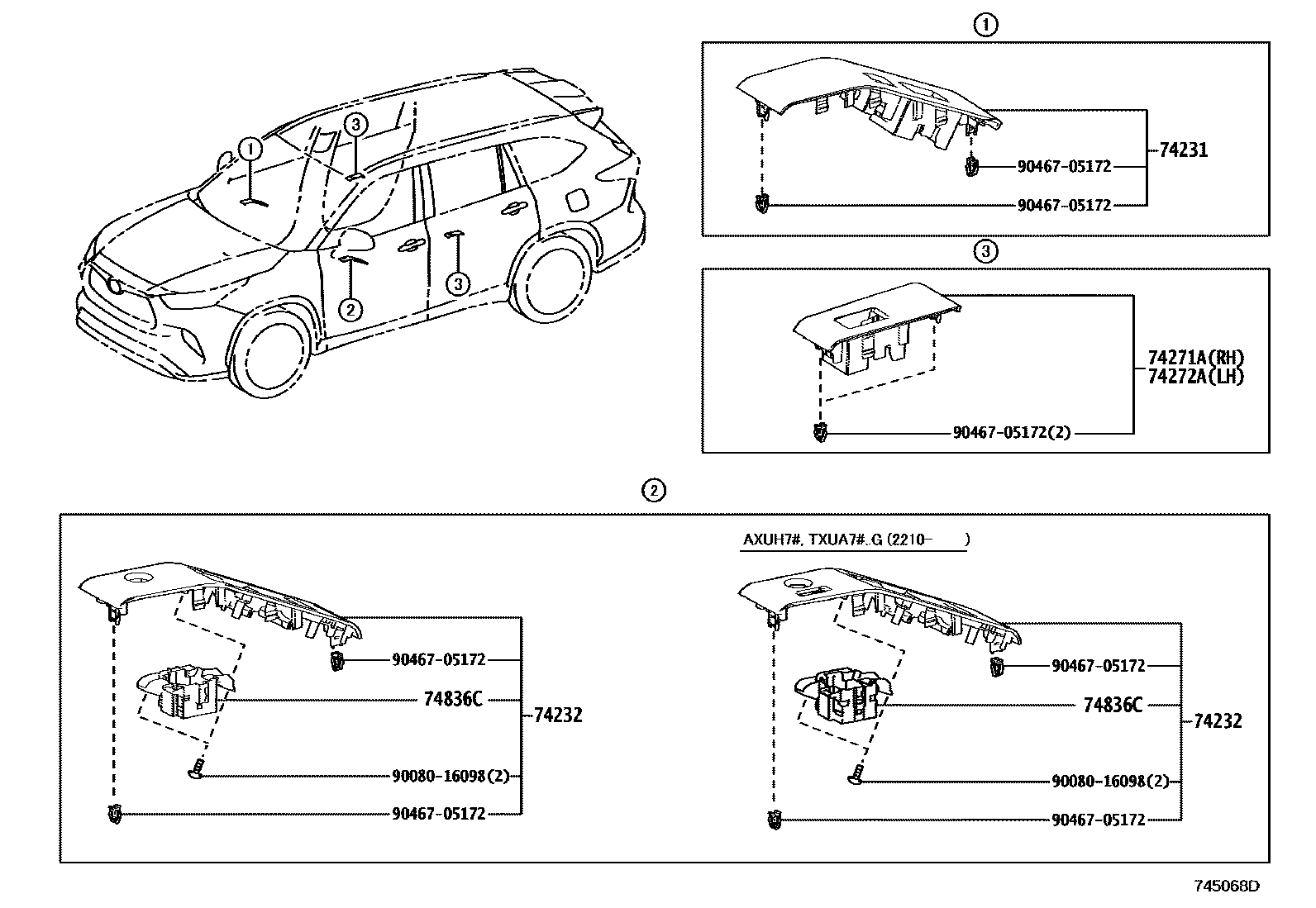

Toyota HIGHLANDER — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0E110iTXUA75;AXUH7#,TXUA70..G,M,N202311

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0E130iAXUH7#,TXUA7#..M,N,S202210-202311

main74232-0E140iAXUH7#,TXUA7#..G202311-202408

main74232-0E270iAXUH7#,TXUA7#..G202409

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0E080iAXUH7#,GSU7#201912-202210

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0E080iAXUH7#,TXUA7#202210-202311

74836CBRACKET, SEPARATOR, LOWER LH

main74836-0E010iTXUA75..M,N,S;AXUH7#,TXUA70..M,N202311

main74836-0E020iAXUH7#,TXUA7#..G202311

9008016098

main90080-16098

9046705172

main90467-05172

7 parts on this diagram · 2 diagrams in section
