Toyota HIGHLANDER — ANTENNA

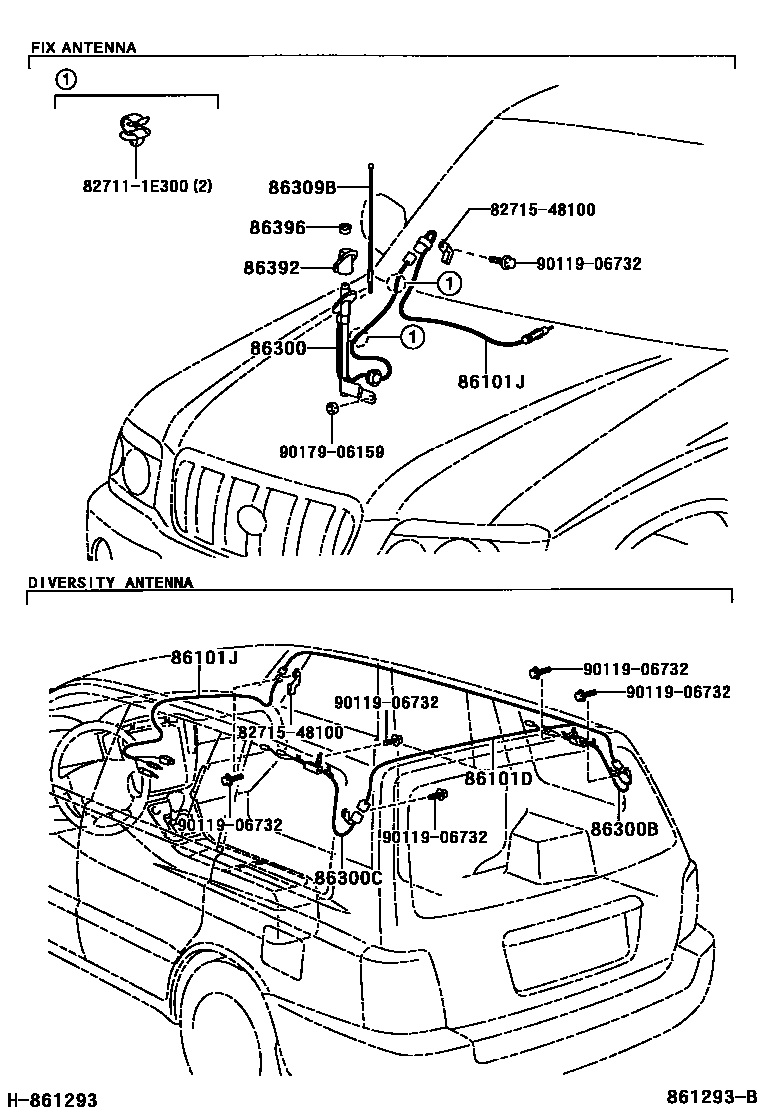

Parts diagram
86101CORD SUB-ASSY, ANTENNA
main86101-48510i200308-200705
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-48260i200011-200308
main86101-48270i200011-200308
W(MOON ROOF)
main86101-48490i200308
main86101-48500i200308
W(MOON ROOF)
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-48230i200011-200308
main86101-48250i200011-200308
W(DIVERSITY ANTENNA)
main86101-48470i200308
W(DIVERSITY ANTENNA)
main86101-48480i200308
86300ANTENNA ASSY, W/HOLDER
main86309-48020i200011-200308
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-48110i200011-200308
86300CANTENNA ASSY, AMPLIFIER, NO.2
main86300-48120i200011-200308
86309BPOLE SUB-ASSY, PULL TOP ANTENNA
main86309-42040i200011-200308
86392ORNAMENT, ANTENNA
main86392-48010i200011-200308
86396NUT, ANTENNA
main86396-16020i200011-200308
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
8271548100BRACKET,WIRING HARNESS CLAMP
main82715-48100
9011906732
main90119-06732
9017906159
main90179-06159

13 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota HIGHLANDER

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota HIGHLANDER. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.1.
