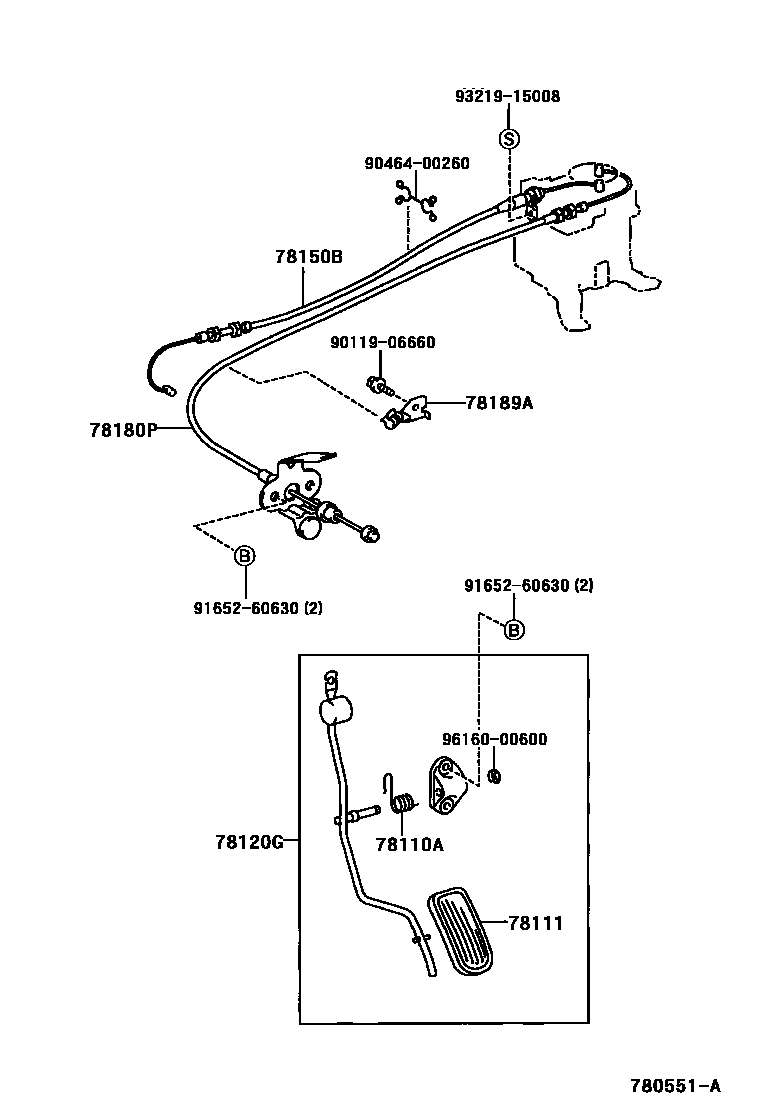

Toyota HIGHLANDER — ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iACU2#,MCU2#200011-200308

78111PEDAL, ACCELERATOR

main78111-33020iACU2#,MCU2#200011-200308

78120GROD ASSY, ACCELERATOR PEDAL

main78120-48050iACU2#,MCU2#200011-200308

main78120-48090iACU2#,MCU2#200308

sub78120-48091

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-48010iACU2#200011-200308

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-48070iMCU2#200011-200308

main78180-48080iACU2#200011-200308

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-48050iMCU2#200011-200308

main78189-48060iACU2#200011-200308

9011906660

main90119-06660

9046400260

main90464-00260

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

11 parts on this diagram · 3 diagrams in section
