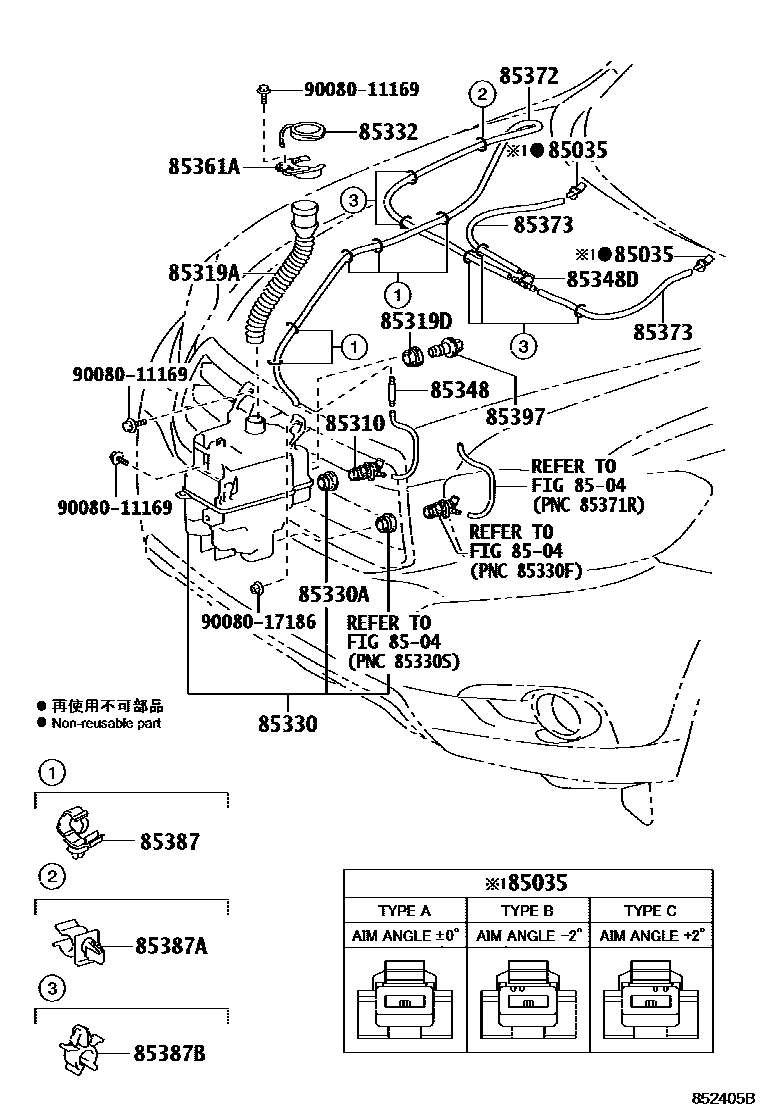

Toyota HIGHLANDER (NAP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i201008

ANGLE 0,TYPE A:REFER ILLUST.

main85381-12310×2i200910-201008

TYPE B:REFER ILLUST.

main85381-12320×2i201008

ANGLE +2,TYPE C:REFER ILLUST.

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201008

85319AHOSE, INLET

main85319-48150i201008

85319DPACKING, FRONT WASHER

main85319-AA020i200910-201008

85330JAR ASSY, WINDSHIELD WASHER

main85315-0E060i200910-201008

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200910-201008

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200910-201008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150i200910-201008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85321-28020i200910-201008

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i200910-201008

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33117i200910-201008

L=2350

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33115×2i200910-201008

L=550

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×5i200910-201008

85387ACLAMP, WASHER, NO.2

main85371-0E060i200910-201008

85387BCLAMP, WASHER, NO.3

main90469-07011×5i200910-201008

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i200910-201008

9008011169

main90080-11169

9008017186

main90080-17186

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota HIGHLANDER (NAP)

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HIGHLANDER (NAP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, PACKING, FRONT WASHER.
