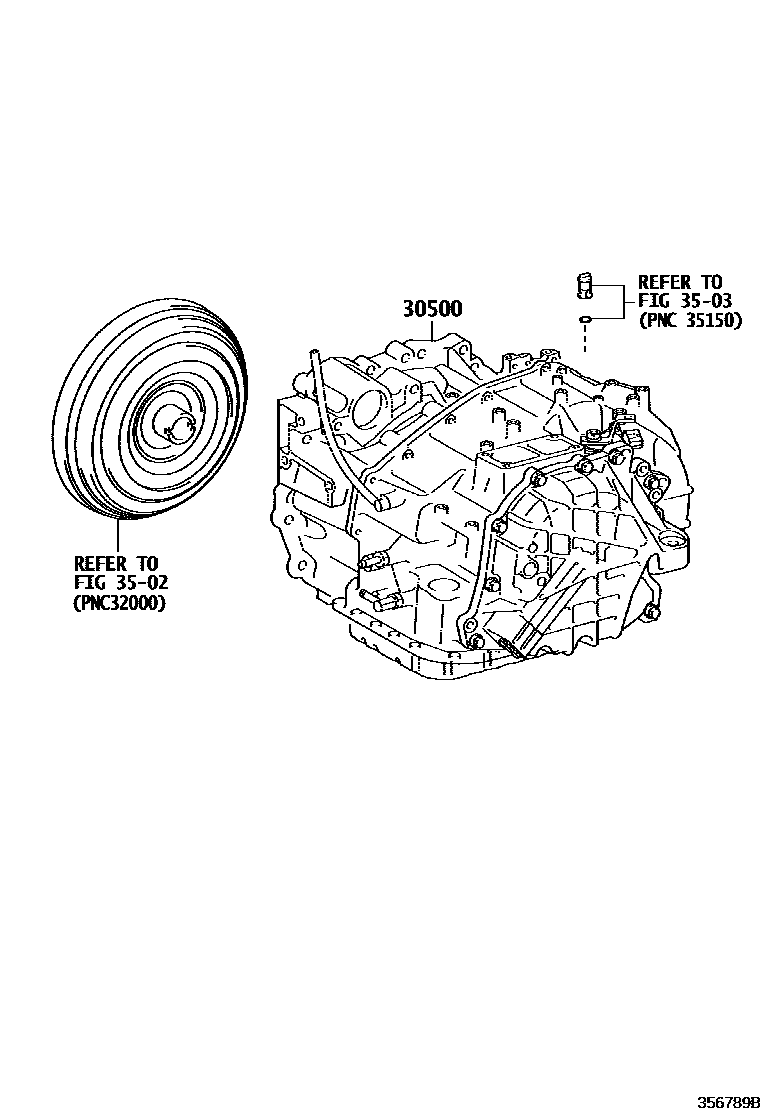

Toyota HIGHLANDER (NAP) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0T030i201308

U760E,*325

main30500-48330i201008-201308

U760E,*285

main30500-48331i201308

U760E

main30500-48340i201008

U151F

main30500-48350i201008

U151E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

3 parts on this diagram · 2 diagrams in section

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM) for Toyota HIGHLANDER (NAP)

This section contains 3 genuine Toyota parts for the TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM) system of the Toyota HIGHLANDER (NAP). Key components include: TRANSAXLE ASSY, AUTOMATIC, TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM), TRANSMISSION CASE & OIL PAN (ATM).
