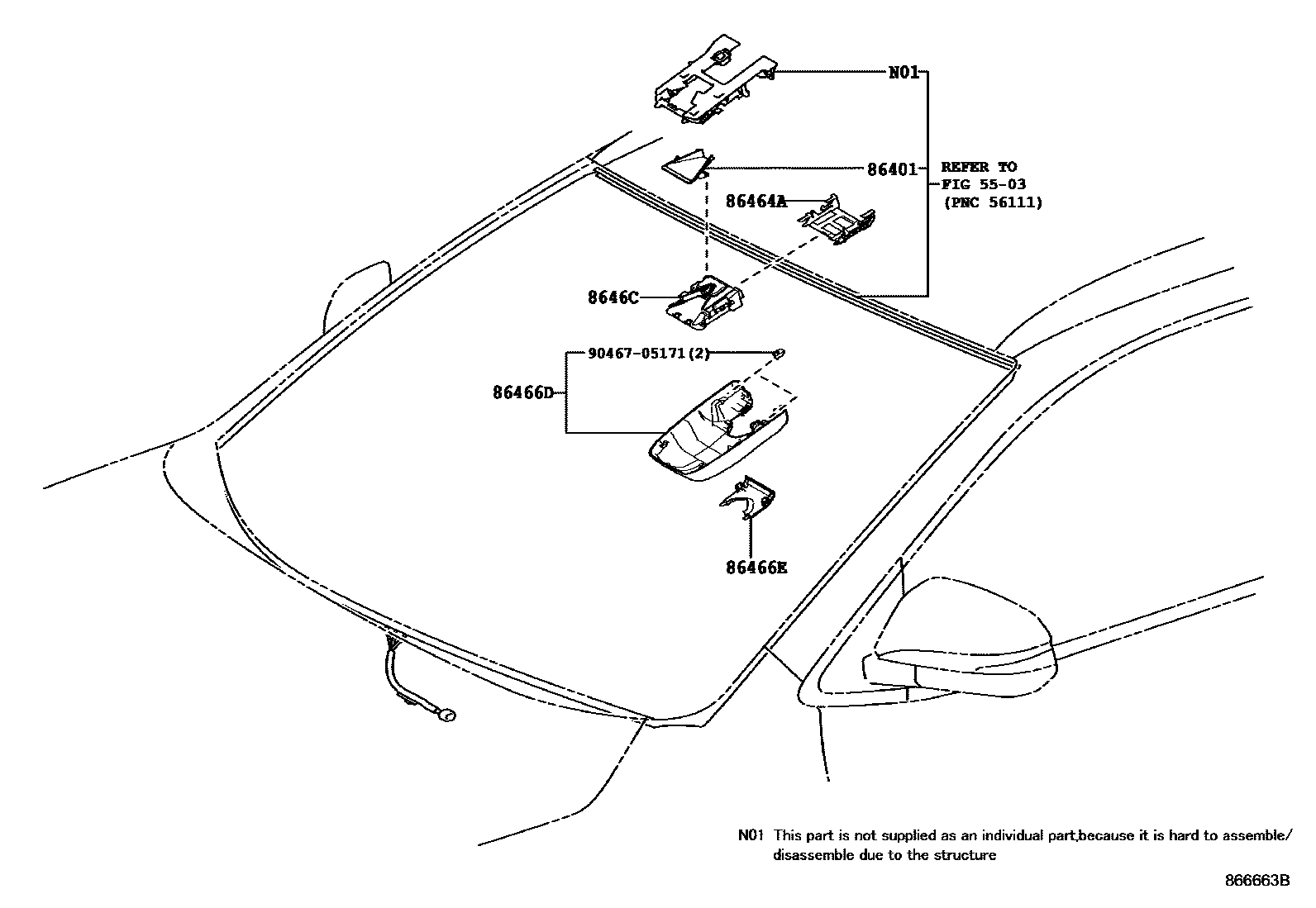

Toyota HIGHLANDER (NAP) — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48020iASU50,GSU5#,GVU58201611-201911

86464ALATCH, FORWARD RECOGNITION

main86464-48011iASU50,GSU5#,GVU58201611-201911

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-48061iASU50,GSU5#,GVU58201611-201911

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-48070iASU50,GSU5#,GVU58201611-201911

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E020iASU50,GSU5#,GVU58201611-201911

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
