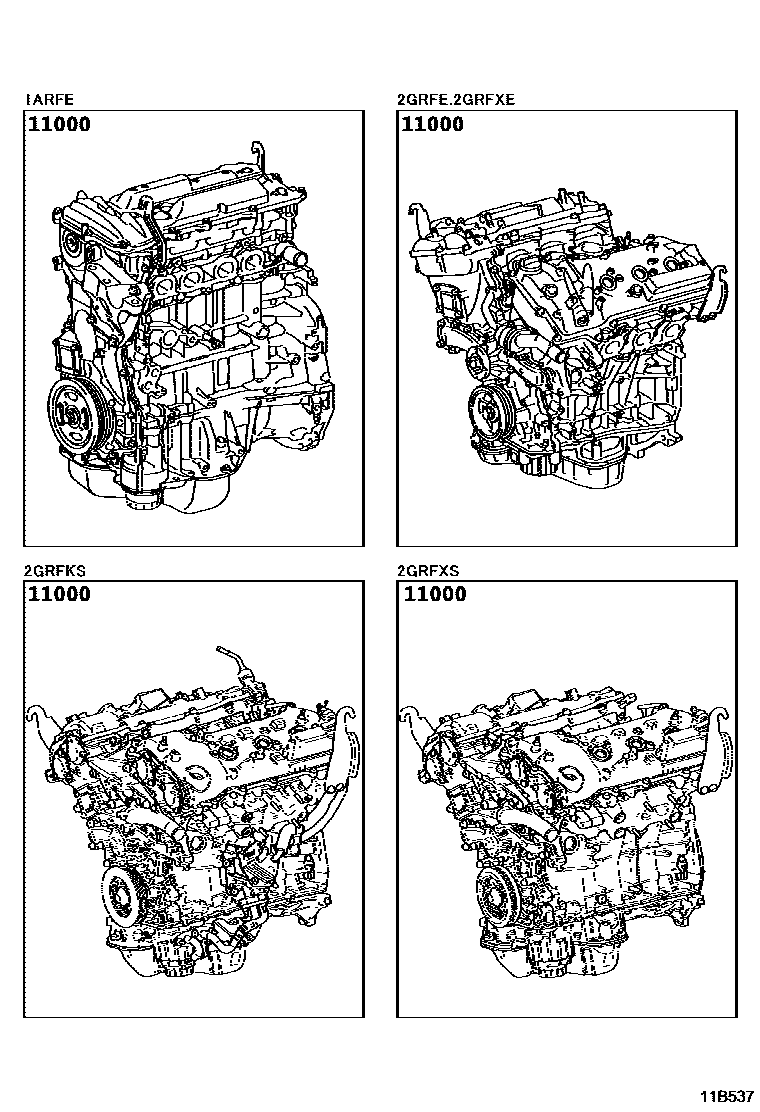

Toyota HIGHLANDER (NAP) — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0P530i2GRFKS..GSU5#..N201611-201903

LE PACKAGE

sub12601-0P011

sub90467-06200

main19000-0P531supersedes 19000-0P511i2GRFKS..GSU5#..N201903

LE PACKAGE

main19000-0V052i1ARFE..ASU50201312-201611

main19000-31K20i2GRFXE..GVU58201401-201611

*427

main19000-31R30i2GRFXS..GVU58201611

main19000-36341i1ARFE..ASU50201810

(J)

main19000-0P181supersedes 19000-31L81i2GRFE..GSU5#201312-201611

TOWING PACKAGE-5000LBS,*371

main19000-0P202i2GRFE..GSU50201312-201611

MEXICO SPEC,*371

sub12180-0P021

main19000-31A00i2GRFE..GSU50201312-201611

MEXICO SPEC,*427

main19000-31P30supersedes 19000-31L81i2GRFE..GSU5#201312-201611

TOWING PACKAGE-5000LBS,*427

1 parts on this diagram · 1 diagram in section
