Toyota HIGHLANDER (NAP) — MUDGUARD & SPOILER

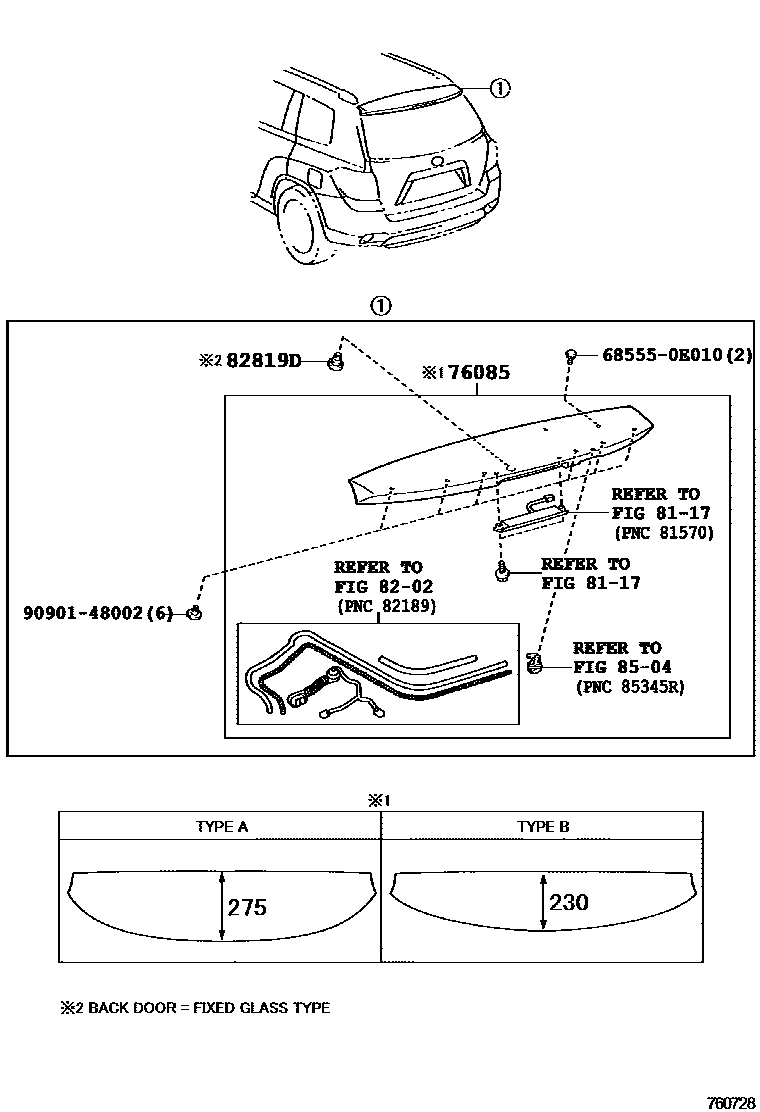

Parts diagram
76085SPOILER SUB-ASSY, REAR
main76085-0E902-A1i200910-201008
REAR SPOILER-LARGE TYPE,WHITE PEARL,070,TYPE A:REFER ILLUST.; WHITE PEARL,070,TYPE A:REFER ILLUST.
main76085-0E902-B2i200910-201008
GRAY METALLIC,1G3,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,GRAY METALLIC,1G3,TYPE A:REFER ILLUST.
main76085-0E902-B3i200910-201008
REAR SPOILER-LARGE TYPE,SILVER METALLIC,1F7,TYPE A:REFER ILLUST.; SILVER METALLIC,1F7,TYPE A:REFER ILLUST.
main76085-0E902-C1i200910-201008
BLACK,202,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,BLACK,202,TYPE A:REFER ILLUST.
main76085-0E902-D1i200910-201008
DK RED,3Q3,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,DK RED,3Q3,TYPE A:REFER ILLUST.
main76085-0E902-G0i200910-201008
OLIVE,6T7,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,OLIVE,6T7,TYPE A:REFER ILLUST.
main76085-0E902-J2i200910-201008
BLUE,8T7,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,BLUE,8T7,TYPE A:REFER ILLUST.
main76085-0E902-J3i200910-201008
LT BLUE,8S7,TYPE A:REFER ILLUST.; REAR SPOILER-LARGE TYPE,LT BLUE,8S7,TYPE A:REFER ILLUST.
main76085-0E903-A1i200910-201008
WHITE PEARL,070,TYPE B:REFER ILLUST.
main76085-0E903-B2i200910-201008
GRAY METALLIC,1G3,TYPE B:REFER ILLUST.
main76085-0E903-B3i200910-201008
SILVER METALLIC,1F7,TYPE B:REFER ILLUST.
main76085-0E903-C1i200910-201008
BLACK,202,TYPE B:REFER ILLUST.
main76085-0E903-D1i200910-201008
DK RED,3Q3,TYPE B:REFER ILLUST.
main76085-0E903-E3i200910-201008
BEIGE METALLIC,4T8,TYPE B:REFER ILLUST.
main76085-0E903-G0i200910-201008
OLIVE,6T7,TYPE B:REFER ILLUST.
main76085-0E903-J2i200910-201008
BLUE,8T7,TYPE B:REFER ILLUST.
main76085-0E903-J3i200910-201008
LT BLUE,8S7,TYPE B:REFER ILLUST.
main76085-0E904-A1i201008-201312
WHITE PEARL,070
main76085-0E904-B2i201008-201312
GRAY METALLIC,1G3
main76085-0E904-B3i201008-201312
SILVER METALLIC,1F7
main76085-0E904-C1i201008-201312
BLACK,202
main76085-0E904-D2i201008-201312
DK RED,3R0
main76085-0E904-E3i201008-201312
BEIGE,4T8
main76085-0E904-G0i201008-201312
OLIVE,6T7
main76085-0E904-J4i201008-201312
BLUE,8V5
main76085-0E904-J5i201008-201312
LT BLUE,8S6
8117CENTER STOP LAMP
→ Go to FIG 81-17
8202WIRING & CLAMP
→ Go to FIG 82-02
82819DGROMMET, WIRING HARNESS
main82819-0E030i200910-201008
8504REAR WASHER
→ Go to FIG 85-04
685550E010BOLT, DOOR STAY
main68555-0E010
9090148002
main90901-48002

7 parts on this diagram · 2 diagrams in section

MUDGUARD & SPOILER for Toyota HIGHLANDER (NAP)

This section contains 7 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota HIGHLANDER (NAP). Key components include: SPOILER SUB-ASSY, REAR, CENTER STOP LAMP, WIRING & CLAMP, GROMMET, WIRING HARNESS, REAR WASHER.
