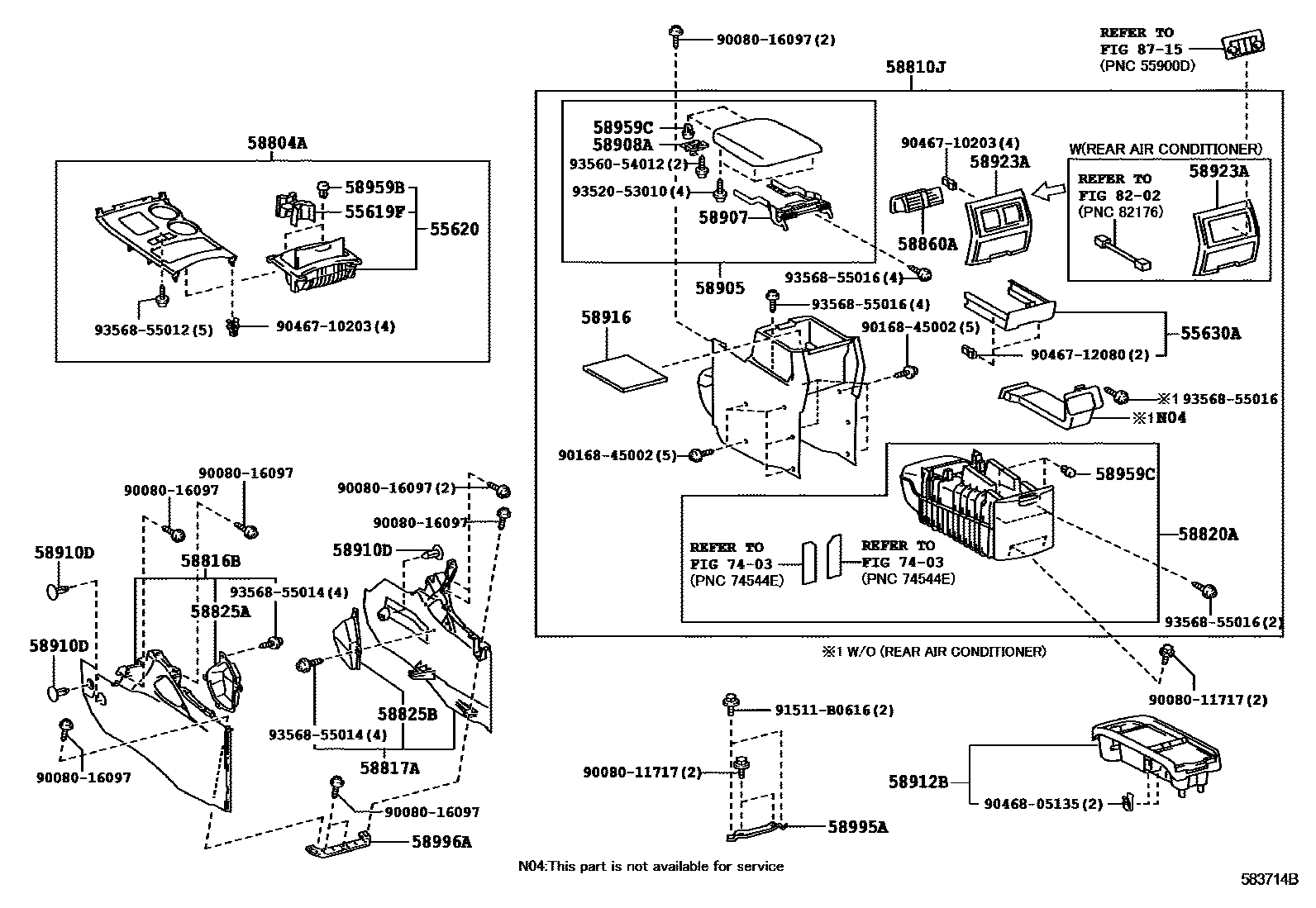

Toyota HIGHLANDER (NAP) — CONSOLE BOX & BRACKET

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55618-0E090iASU40,GSU4#201008

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-0E060-B0iASU40,GSU4#..M,SPO,STD200910-201008

GRAY,TRIM1#

main55620-0E060-C0iGSU4#..M,SPO200910-201008

BLACK,TRIM2#

main55620-0E060-E0iASU40,GSU4#..M,SPO,STD200910-201008

SAND BEIGE,TRIM4#

main55620-0E070-B0iGSU4#..LIMD200910-201008

GRAY,TRIM1#

main55620-0E070-C0iGSU4#..LIMD200910-201008

BLACK,TRIM2#

main55620-0E070-E0iGSU4#..LIMD200910-201008

SAND BEIGE,TRIM4#

main55620-0E090-B0iASU40,GSU4#..STD201008-201312

GRAY,TRIM1#

main55620-0E090-C0iASU40,GSU4#..STD201008-201312

BLACK,TRIM2#

main55620-0E090-E0iASU40,GSU4#..STD201008-201312

SAND BEIGE,TRIM4#

main55620-0E100-B0iGSU4#..LIMD201008-201312

GRAY,TRIM1#

main55620-0E100-C0iGSU4#..LIMD201008-201312

BLACK,TRIM2#

main55620-0E100-E0iGSU4#..LIMD201008-201312

SAND BEIGE,TRIM4#

55630AHOLDER, REAR CONSOLE BOX, CUP

main55630-0E060-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main55630-0E060-C0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main55630-0E060-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0E050-B0iASU40,GSU4#..M,SPO,STD200910-201008

GRAY,TRIM1#

main58804-0E050-C0iGSU4#..M,SPO200910-201008

BLACK,TRIM2#

main58804-0E050-E0iASU40,GSU4#..M,SPO,STD200910-201008

SAND BEIGE,TRIM4#

main58804-0E060-B0iGSU4#..LIMD200910-201008

GRAY,TRIM1#

main58804-0E060-C0iGSU4#..LIMD200910-201008

BLACK,TRIM2#

main58804-0E060-E0iGSU4#..LIMD200910-201008

SAND BEIGE,TRIM4#

main58804-0E080-B0iASU40,GSU4#..STD201008-201312

GRAY,TRIM1#

main58804-0E080-C0iASU40,GSU4#..STD201008-201312

BLACK,TRIM2#

main58804-0E080-E0iASU40,GSU4#..STD201008-201312

SAND BEIGE,TRIM4#

main58804-0E090-B0iGSU4#..LIMD201008-201312

GRAY,TRIM1#

main58804-0E090-C0iGSU4#..LIMD201008-201312

BLACK,TRIM2#

main58804-0E090-E0iGSU4#..LIMD201008-201312

SAND BEIGE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-0E090-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main58810-0E090-E0iASU40,GSU4#200910-201008

SAND BEIGE,TRIM4#

main58810-0E110-B0supersedes 58810-0E090-B0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#

main58810-0E110-C0supersedes 58810-0E090-C0iASU40,GSU4#..STD201008-201312

BLACK,TRIM2#

main58810-0E110-E0supersedes 58810-0E090-E0iASU40,GSU4#..STD201008-201312

SAND BEIGE,TRIM4#

main58810-0E100-B0supersedes 58810-0E090-B0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#

main58810-0E100-C0iGSU4#..M,SPO200910-201008

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main58810-0E100-E0iASU40,GSU4#..M,SPO,STD200910-201008

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4#

58816BINSERT, CONSOLE BOX

main58816-0E030-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main58816-0E030-C0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main58816-0E030-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0E030-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main58817-0E030-C0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main58817-0E030-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-0E020-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main58820-0E020-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main58820-0E020-E0iASU40,GSU4#200910-201008

SAND BEIGE,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-0E030-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main58825-0E030-C0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main58825-0E030-E0iASU40,GSU4#200910-201008

SAND BEIGE,TRIM4#

58825BPOCKET, CONSOLE BOX

main58825-0E040-B0iASU40,GSU4#201008-201312

GRAY,TRIM1#

main58825-0E040-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main58825-0E040-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58860AREGISTER ASSY, CONSOLE BOX

main58860-48030-B0iASU40,GSU4#..STD201008-201312

GRAY,TRIM1#

main58860-48030-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main58860-48030-E0iASU40,GSU4#200910-201008

SAND BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0E040-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main58905-0E040-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main58905-0E040-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-06030iASU40,GSU4#200910-201008

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iASU40,GSU4#201008

58910DCLIP(FOR CONSOLE BOX)

main90467-06020-C0×3iASU40,GSU4#200910-201008

BLACK

58912BBOX, REAR CONSOLE, LOWER

main58912-0E060-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main58912-0E060-C0iGSU4#..LIMD,M,SPO200910-201008

BLACK,TRIM2#

main58912-0E060-E0iASU40,GSU4#201008-201312

SAND BEIGE,TRIM4#

58916MAT, BOX BOTTOM

main58916-0E020iASU40,GSU4#201008

58923APANEL, CONSOLE REAR END

main58923-0E080-B0iASU40,GSU4#200910-201008

GRAY,TRIM1#

main58923-0E080-E0iASU40,GSU4#200910-201008

SAND BEIGE,TRIM4#

main58923-0E100-B0supersedes 58923-0E080-B0iASU40,GSU4#..STD201008-201312

REAR AIR CONDITIONER-WITH(REAR AUTO AIR CONDITIONER),GRAY,TRIM1#

main58923-0E100-C0supersedes 58923-0E080-C0iASU40,GSU4#..STD201008-201312

BLACK,TRIM2#

main58923-0E100-E0supersedes 58923-0E080-E0iASU40,GSU4#..STD201008-201312

SAND BEIGE,TRIM4#

main58923-0E090-B0iASU40,GSU4#..M,SPO,STD200910-201008

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),GRAY,TRIM1#

main58923-0E090-C0iGSU4#..M,SPO200910-201008

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),BLACK,TRIM2#

main58923-0E090-E0iASU40,GSU4#..M,SPO,STD200910-201008

REAR AIR CONDITIONER-WITH(REAR MANUAL AIR CONDITIONER),SAND BEIGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iASU40,GSU4#201008

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iASU40,GSU4#200910-201008

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0E030iASU40,GSU4#201008

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-48030iASU40,GSU4#200910-201008

7403

8202

8715

9008011717

main90080-11717

9008016097

main90080-16097

9016845002

main90168-45002

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

91511B0616

main91511-B0616

9352053010

main93520-53010

9356054012

main93560-54012

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

37 parts on this diagram · 1 diagram in section
