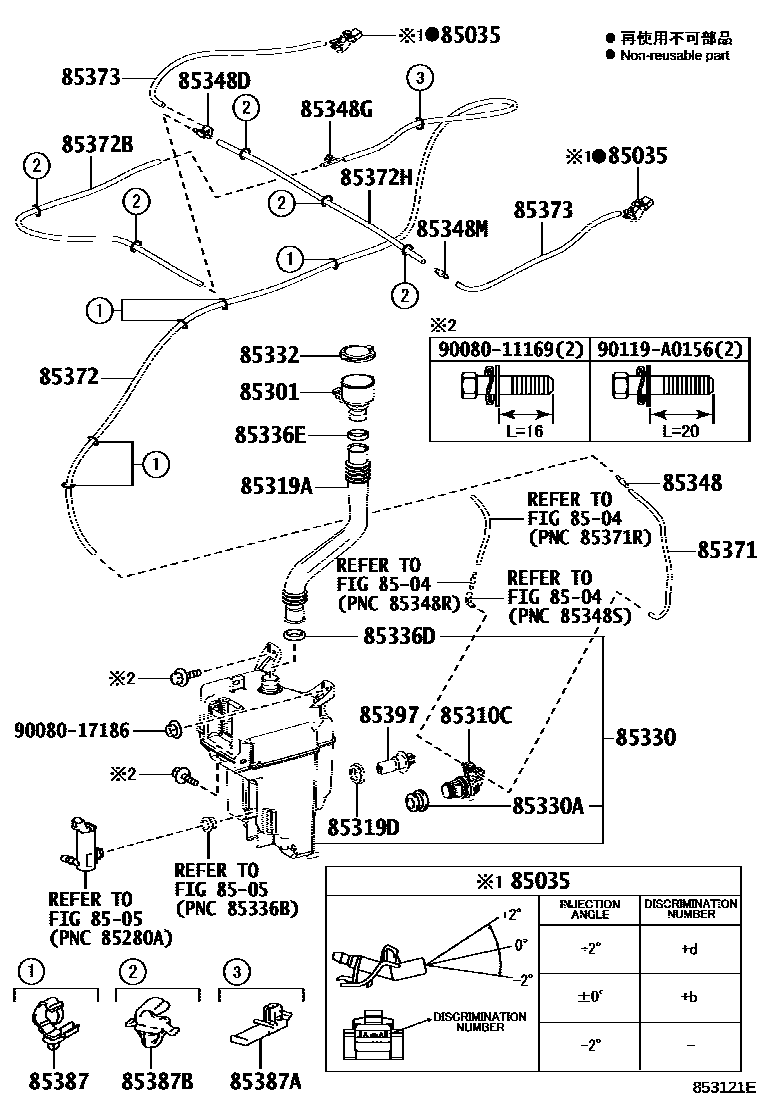

Toyota HIGHLANDER/KLUGER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
8504
8505
85301INLET SUB-ASSY, WASHER
85310CMOTOR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=300
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1500
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=700
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=520
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=330
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85397SWITCH ASSY,LEVEL WARNING
9008011169
main90080-11169
9008017186
main90080-17186
90119A0156
main90119-A0156
28 parts on this diagram · 3 diagrams in section
