Toyota HIGHLANDER/KLUGER — VACUUM PUMP

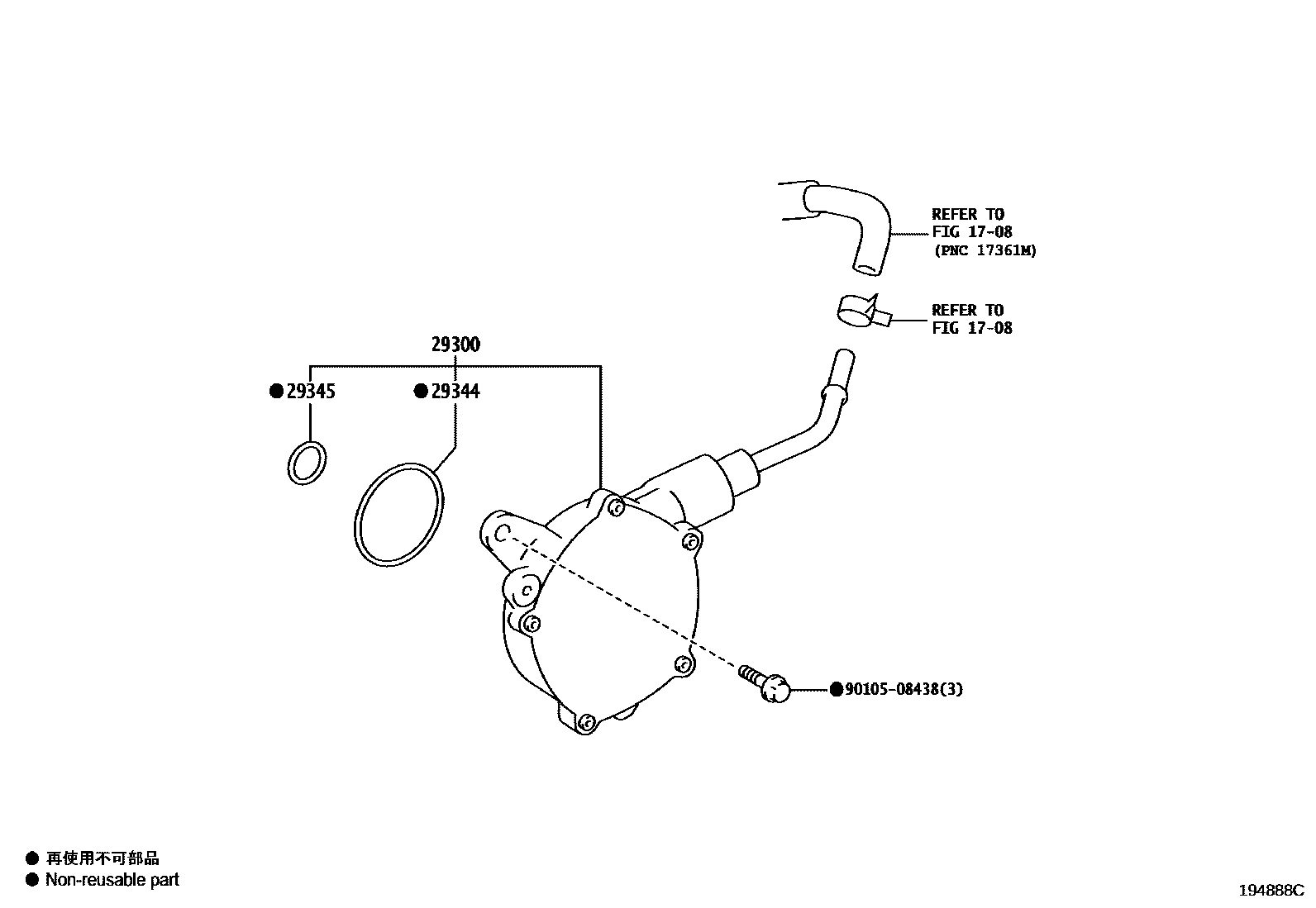

Parts diagram
1708
29300PUMP ASSY, VACUUM
main29300-0P010i201611-201706
sub29300-0P011
main29300-0P011i201707
29344RING, O VACUUM PUMP, NO.2
main29344-0P010i201611
29345RING, O VACUUM PUMP, NO.3
main29345-0P010i201611
9010508438
main90105-08438

5 parts on this diagram · 1 diagram in section
