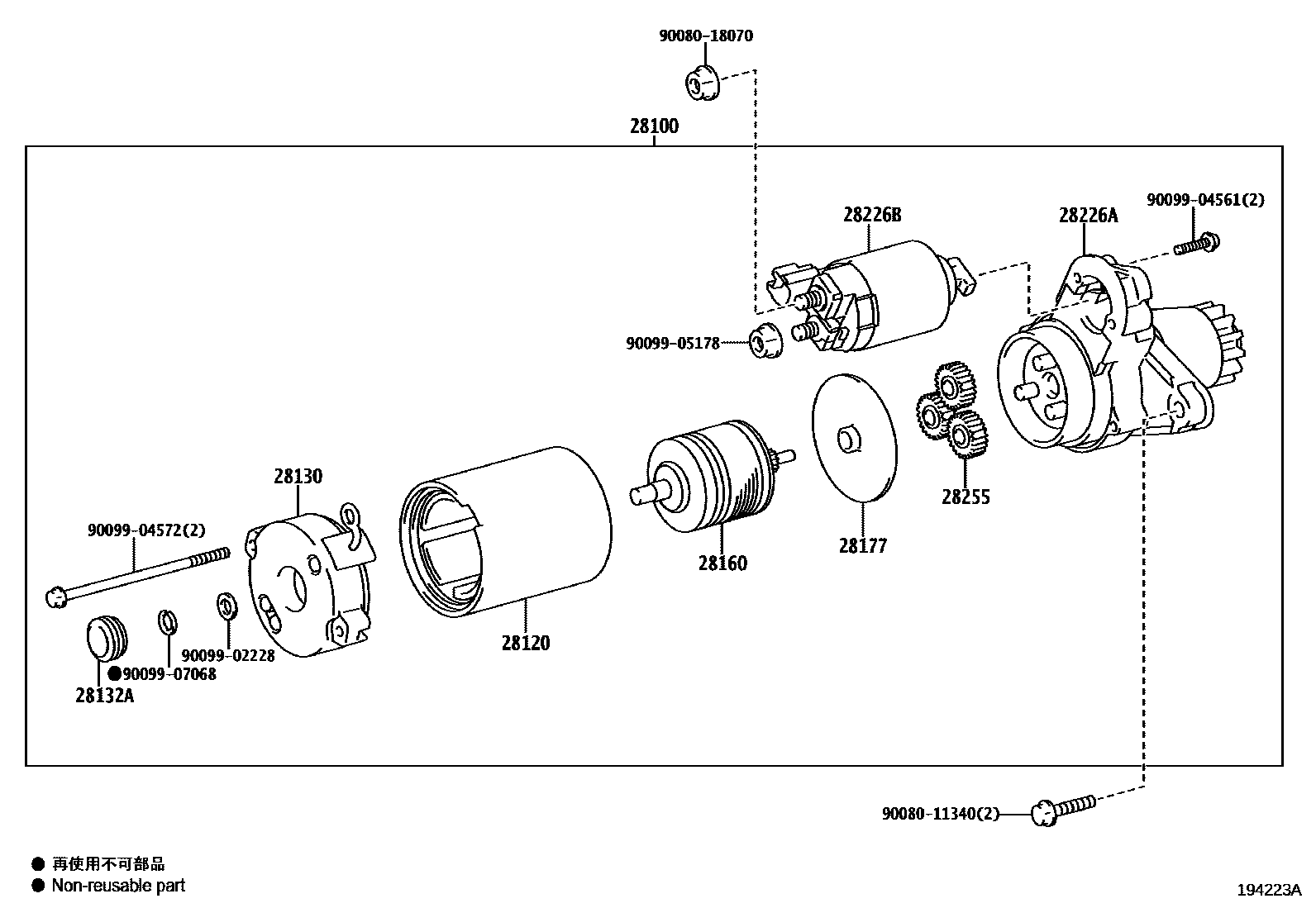

Toyota HIGHLANDER/KLUGER — STARTER

0001 112V 1.7KW 0003 112V 1.7KW

28100STARTER ASSY

main28100-0A011i1ARFE,2GRFE..ASU50,GSU5#201312-201611

12V 1.7KW

main28100-0P110i2GRFKS..GSU5#201611

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28060i1ARFE,2GRFE..ASU50,GSU5#201312-201611

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main28130-31200i2GRFKS..GSU5#201611

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1ARFE,2GRFE..ASU50,GSU5#201312-201611

28160ARMATURE ASSY, STARTER

main28160-28040i1ARFE,2GRFE..ASU50,GSU5#201312-201611

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1ARFE,2GRFKS..ASU50,GSU5#201312-201611

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main28226-31220i2GRFKS..GSU5#201611

28226BSTARTER KIT, REPAIR SERVICE

main28150-40090i2GRFKS..GSU5#201611

main28226-28051i1ARFE,2GRFE..ASU50,GSU5#201312-201611

28255GEAR, PLANET

main28255-0A010i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main28255-20020i1ARFE,2GRFKS..ASU50,GSU5#201611

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

16 parts on this diagram · 2 diagrams in section
