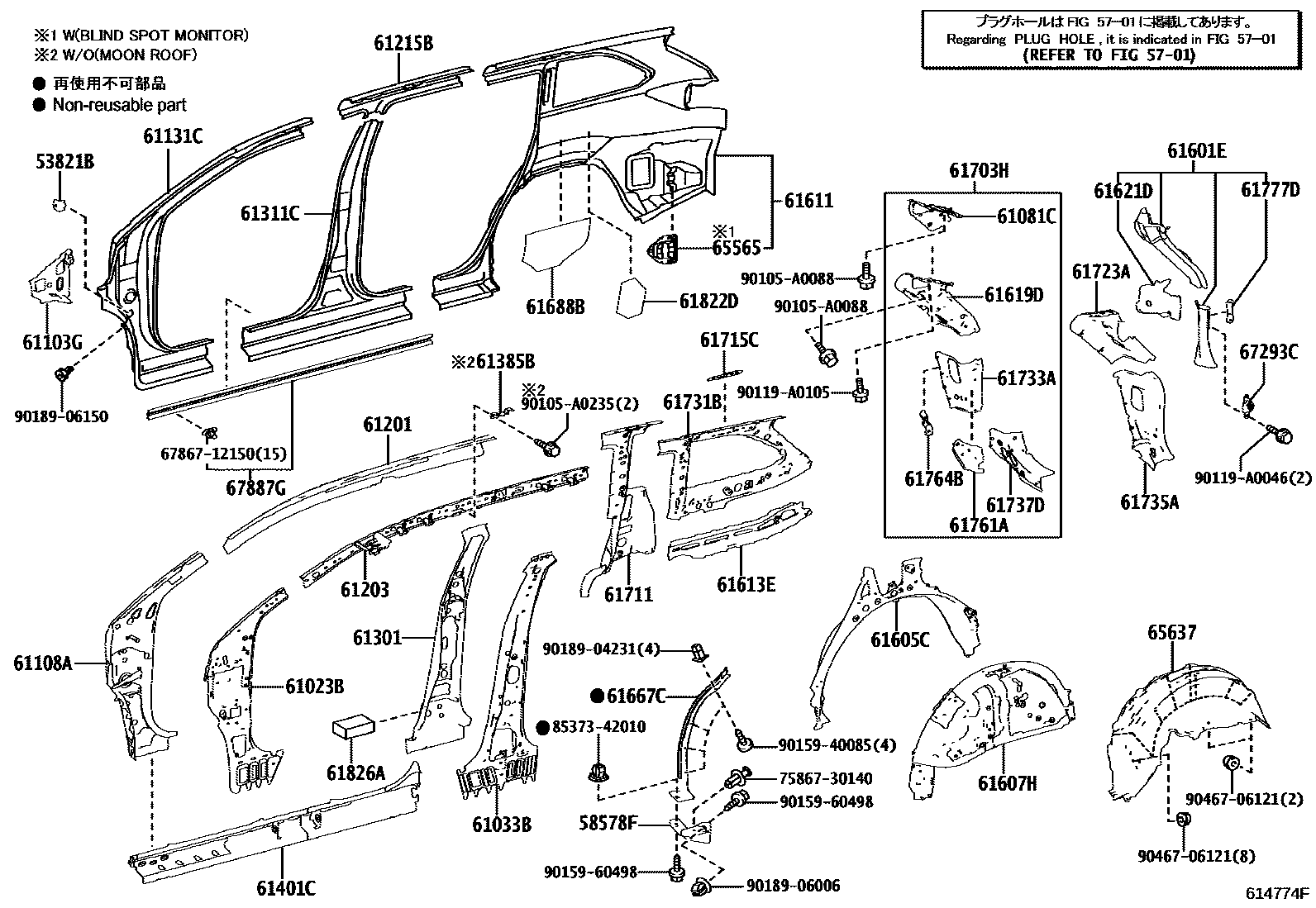

Toyota HIGHLANDER/KLUGER — SIDE MEMBER

0001 1RH 0002 1LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E040iASU50,GSU5#201312-201611

5701

58578FPAD, REAR WHEEL HOUSE, RH

main58578-0E030iASU50,GSU5#201312-201611

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0E050iASU50,GSU5#201312-201611

61033BPILLAR SUB-ASSY, NO.2 INNER, RH

main61033-0E030iASU50,GSU5#201312-201611

61081CREINFORCE, ROOF SIDE, INNER RH

main61081-0E030iASU50,GSU5#201312-201611

61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-0E040iASU50,GSU5#201312-201611

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0E904iASU50,GSU5#201312-201611

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0E060iASU50,GSU5#201312-201611

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0E020iASU50,GSU5#201312-201611

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-0E040iASU50,GSU5#201312-201611

61215BRAIL, ROOF SIDE, OUTER NO.3 RH

main61215-0E030iASU50,GSU5#201312-201611

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-0E903iASU50,GSU5#201312-201611

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0E050iASU50,GSU5#201312-201611

61385BEXTENSION, CENTER BODY PILLAR, INNER RH

main61385-0E030iASU50;GSU5#..LE;GSU55..LIMD..RUS201312-201611

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61401-0E903iASU50,GSU5#201312-201611

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-0E030iASU50,GSU5#201312-201611

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61605-0E010iASU50,GSU5#201312-201611

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-0E050iASU50,GSU5#201312-201611

61611PANEL, QUARTER, RH

main61611-0E090iASU50,GSU5#201312-201611

sub61611-0E080

sub65565-0E060

61613EPANEL, QUARTER, INNER RH

main61613-0E050iASU50,GSU5#201312-201611

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-0E030iASU50,GSU5#201312-201611

61621DTROUGH, BACK DOOR OPENING, RH

main61621-0E050iASU50,GSU5#201312-201611

61667CSEAL, QAURTER PANEL, NO.1

main61667-0E050iASU50,GSU5#201312-201611

61688BLINING, QUARTER PANEL REINFORCEMENT, RH

main61688-0E020iASU50,GSU5#201312-201611

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61703-0E030iASU50,GSU5#201312-201611

61711PANEL, ROOF SIDE, OUTER RH

main61711-0E903iASU50,GSU5#201312-201611

61715CBRACKET, ROOF SIDE, RH

main61715-0E050iASU50,GSU5#201312-201611

61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

main61723-0E050iASU50,GSU5#201312-201611

61731BPANEL, ROOF SIDE, INNER RH

main61731-0E050iASU50,GSU5#201312-201611

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-0E050iASU50,GSU5#201312-201611

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-0E050iASU50,GSU5#201312-201611

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0E010iASU50,GSU5#201312-201611

61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

main61761-0E030iASU50,GSU5#201312-201611

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-0E030iASU50,GSU5#201312-201611

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-0E010iASU50,GSU5#201312-201611

61822DPLATE, NOISE CONTROL, LH

main61822-0E020iASU50,GSU5#201312-201611

61826APLATE, NOISE CONTROL, NO.3

main61826-0E060iASU50,GSU5#201312-201611

65565PATCH, SIDE PANEL REAR END, RH

main65565-0E020iASU50,GSU5#..LIMD201312-201611

main65565-0E060iASU50,GSU5#..LIMD201611

65637LINER, REAR WHEEL HOUSE, RH

main65637-0E040iASU50,GSU5#201312-201611

67293CCUSHION, BACK DOOR STOPPER

main67293-0E020iASU50,GSU5#201312-201611

67887GWEATHERSTRIP, ROCKER OUTER, RH

main67863-0E030iASU50,GSU5#201312-201611

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

7586730140MOULDING, FRONT PANEL

main75867-30140

8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-42010

90105A0088

main90105-A0088

90105A0235

main90105-A0235

90119A0046

main90119-A0046

90119A0105

main90119-A0105

9015940085

main90159-40085

9015960498

main90159-60498

9018904231

main90189-04231

9018906006

main90189-06006

9018906150

main90189-06150

9046706121

main90467-06121

55 parts on this diagram · 2 diagrams in section
