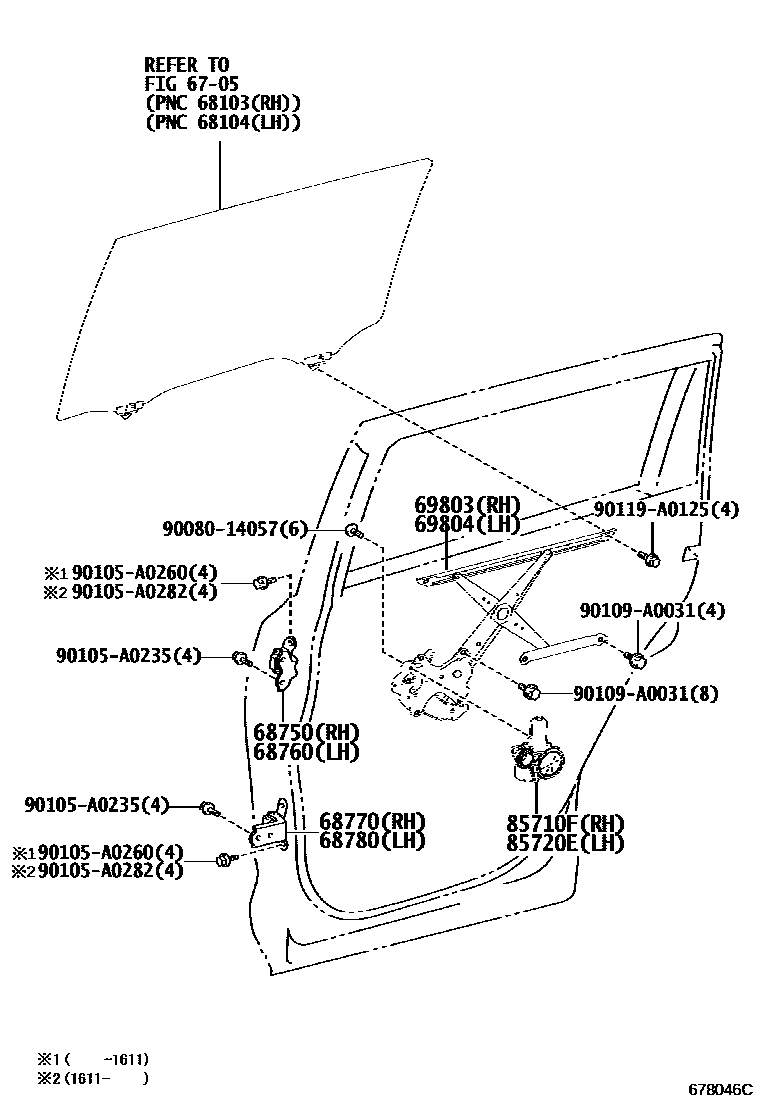

Toyota HIGHLANDER/KLUGER — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iASU50,GSU5#201312-201611

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iASU50,GSU5#201312-201611

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0E020iASU50,GSU5#201312-201611

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0E020iASU50,GSU5#201312-201611

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-02300iASU50,GSU5#201312-201611

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-02310iASU50,GSU5#201312-201611

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E050iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

main85710-AE010iGSU5#..LE..ARL201312-201611

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E070iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

main85720-AE010iGSU5#..LE..ARL201312-201611

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90109A0031

main90109-A0031

90119A0125

main90119-A0125

15 parts on this diagram · 1 diagram in section
