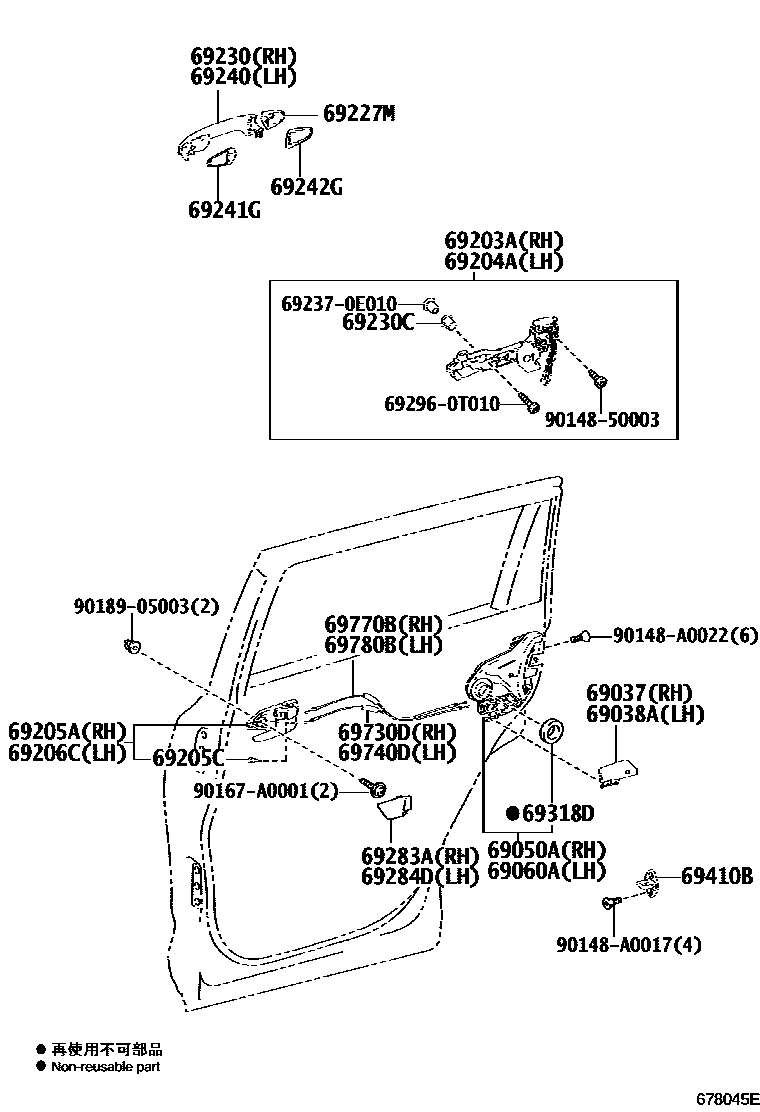

Toyota HIGHLANDER/KLUGER — REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
LEATHER PACKAGE,BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
LEATHER PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692370E010RETAINER, DOOR OUTSIDE HANDLE
main69237-0E010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0017
main90148-A0017
90148A0022
main90148-A0022
90167A0001
main90167-A0001
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
